Common Nails (28 Products)

APPROVED VENDOR

gauge head dia. size penny size shank dia. display qty material head type Pack Qty Price
12.5 ga.
1/4"
4D
4D
0.0938"
292
Steel
Flat
292
SGD14.33
11.5 ga.
17/64"
6D
6D
0.125"
168
Steel
Flat
168
SGD14.33
10.25 ga.
9/32"
8D
8D
0.125"
91
Steel
Flat
91
SGD14.33
9 ga.
5/16"
10D
10D
0.1563"
68
Steel
Flat
68
SGD14.33
9 ga.
5/16"
12D
12D
0.1563"
63
Steel
Flat
63
SGD14.33
8 ga.
11/32"
16D
16D
0.1563"
44
Steel
Flat
44
SGD14.33
6 ga.
13/32"
20D
20D
0.1875"
31
Steel
Flat
31
SGD14.33
11.5 ga.
17/64"
6D
6D
0.125"
840
Steel
Flat
840
SGD48.31
10.25 ga.
9/32"
8D
8D
0.125"
455
Steel
Flat
455
SGD48.31
9 ga.
5/16"
10D
10D
0.1563"
340
Steel
Flat
340
SGD48.31
APPROVED VENDOR

gauge head dia. size penny size shank dia. dia. display qty material Pack Qty Price
12.5 ga.
1/4"
4D
4D
0.099"
0.099"
292
Steel
292
SGD18.02
11.5 ga.
17/64"
6D
6D
0.113"
0.113"
168
Steel
168
SGD18.02
10.25 ga.
9/32"
8D
8D
0.131"
0.131"
91
Steel
91
SGD18.02
9 ga.
5/16"
10D
0.148"
Steel
68
SGD18.02
8 ga.
11/32"
16D
16D
0.162"
0.162"
44
Steel
44
SGD18.02
6 ga.
13/32"
20D
20D
0.192"
0.192"
31
Steel
31
SGD18.02
11.5 ga.
17/64"
6D
6D
0.113"
0.113"
840
Steel
840
SGD70.10
10.25 ga.
9/32"
8D
8D
0.131"
0.131"
455
Steel
455
SGD70.10
9 ga.
5/16"
10D
10D
0.148"
0.148"
340
Steel
340
SGD70.10
8 ga.
11/32"
16D
16D
0.162"
0.162"
220
Steel
220
SGD70.10

Description

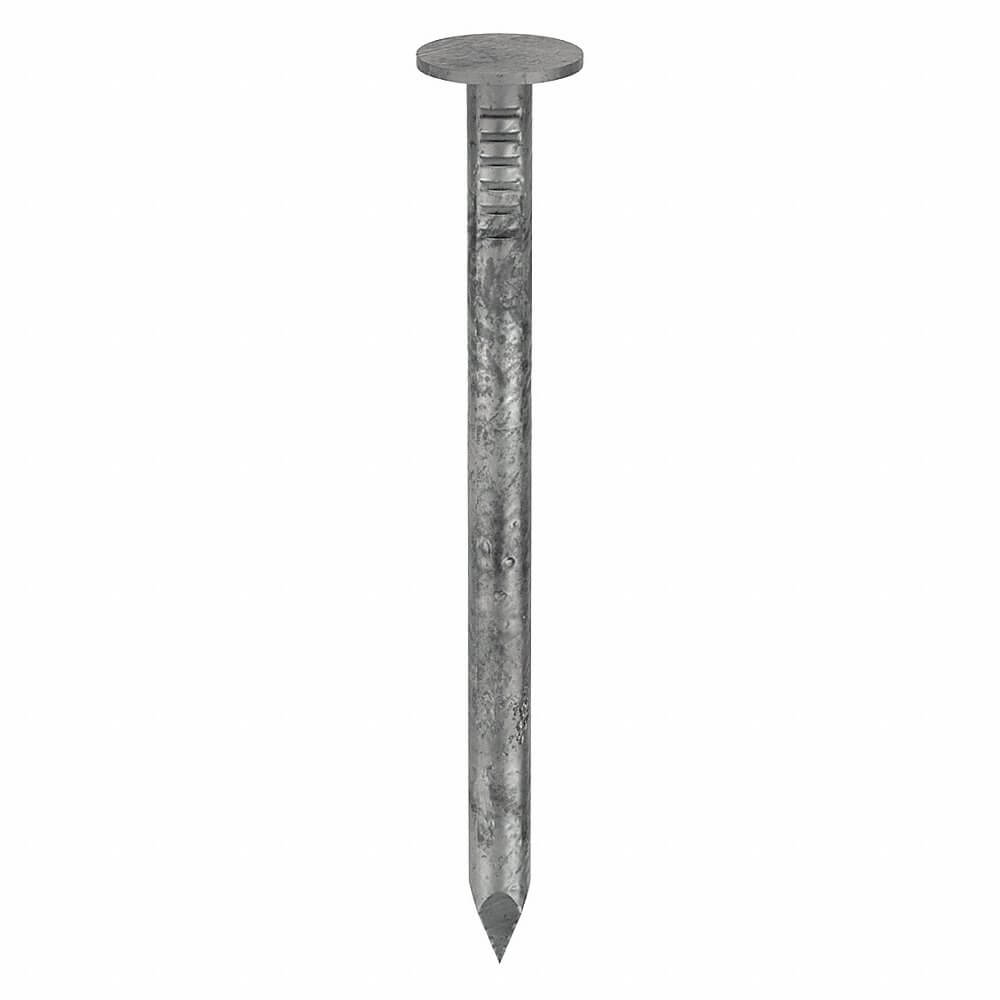

Common nails are used for building a structural panel or shear wall from wood-insulated panels. They are also ideal for framing and general construction applications, owing to their exceptional strength of gripping wood. These nails have 3 parts - a point, a shank and a head. To prevent the splitting of wood, some users dull the nail tip. These units can be installed or removed using hammers, pry bars, nail pullers, flat bars, hammer claws and pliers. Raptor Supplies offers these nails in lengths ranging from 1.5 to 4 inches and head diameters ranging from 1/4 to 13/32 inch.

Features

  • Common nails feature galvanised or plain finish for preventing oxidation reactions on exposed surfaces or installation on interior structural panels, respectively.
  • They are made of steel for enhanced structural rigidity & strength.
  • The point allows easy driving into the workpiece, the shaft / shank secures the workpiece to offer excellent strength & holding power and the head prevents the nails from pulling through the workpiece.
  • They have a smooth or plain shank to facilitate convenient operation as per the requirement.
  • These units have a flat head for preventing unwanted protrusions.
  • They are equipped with a diamond-shaped point to allow easy driving and prevent splitting of materials.
  • These nails have thicknesses ranging from 6 to 12.5 gauge and are available in packs containing up to 2730 pieces.
  • They come in sizes ranging from 4d to 20d .

Frequently Asked Questions

Q. What does 'd' in the size of sinker nails denote?

A. The 'd' denotes the length of a nail (including the head) by its penny size. The abbreviation 'd' stands for 'denarius', which is an ancient Roman coin that became connected with the old British penny over time. The longer the nail, the larger the penny size.

Q. How to choose the size of a nail?

A. The nail length should be 2 to 3 times the thickness of the material being nailed through.

Q. What is the difference between common nails and box nails?

A. Common nails resemble box nails, but have thicker / larger diameter shanks. Common nails are easier to drive in and the heavy shanks permit them to carry massive structural loads, owing to their exceptional strength.

Q. How do these nails work?

A.

  • The shaft of the nail pushes apart wood fibres as the tip penetrates the surface.
  • The friction caused by the dislodged wood fibres grabs the nail's shaft, delivering powerful holding ability.
