Grating Clips(258 Products)

Description

Grating clips are suitable for attaching parallel sheets of grating to angular or channel-shaped flanges. They do not require cutting, taping, drilling or welding. Raptor Supplies offers these grating clips from brands like Grainger, Grating Fasteners, Morse Drum, Unistrut and Vigil Antislip.

Features

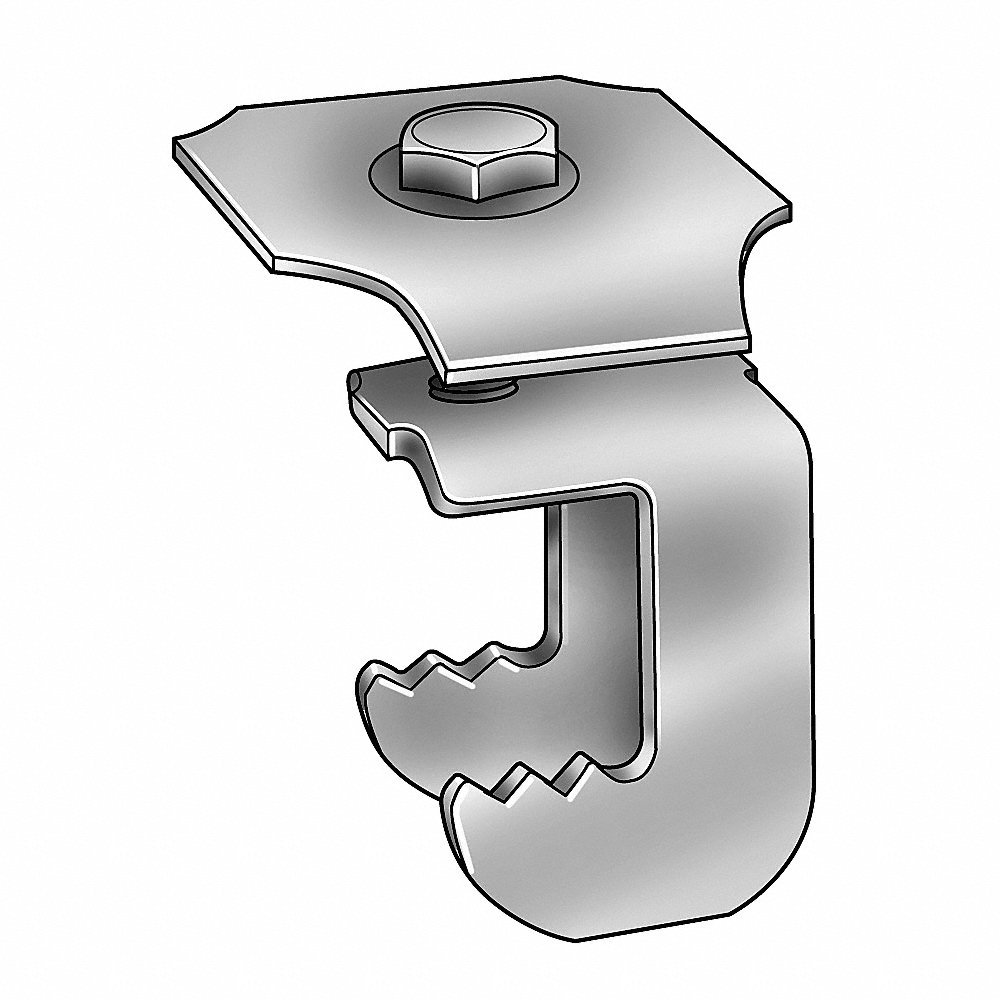

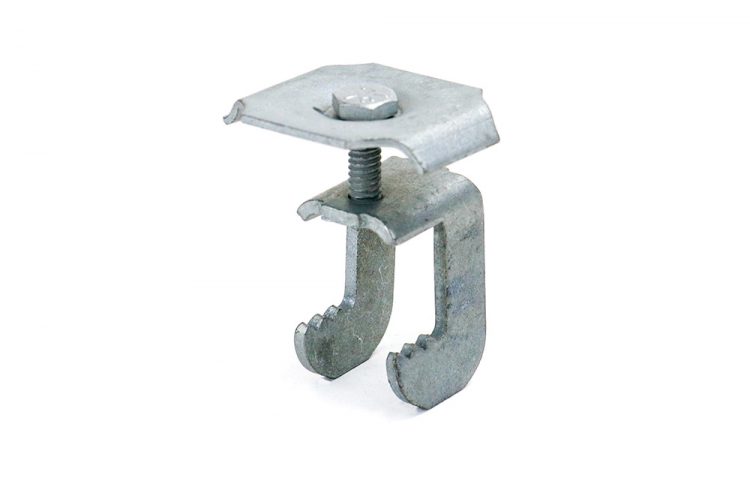

Grating Fasteners ALGG Series G-Clips:

  • They are designed to fasten 19-space bar grating to structural shapes, where the position of the structural flange is in a horizontal plane.
  • They are installed using a hand-held 7/16 inch nut driver. Socket / torque wrenches can also be used for the same purpose.
  • They are composed of aluminium that offers superior corrosion resistance in selected environments as compared to carbon steel / stainless steel metal.

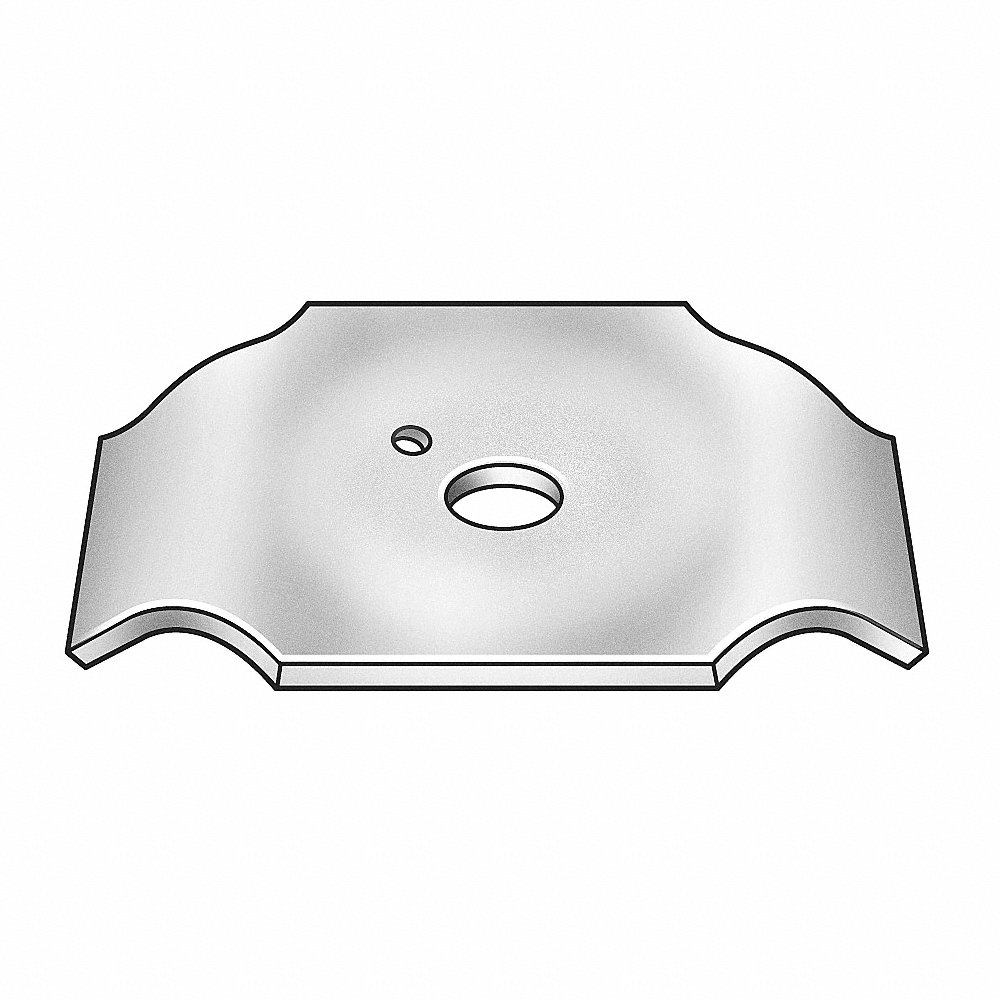

  • These G-clip tops are intended to provide more hold-down strength and are available in a pack of 50.
  • They have carbon steel or 316 stainless steel construction.
  • They provide quick & dependable installation / removal using a screwdriver.

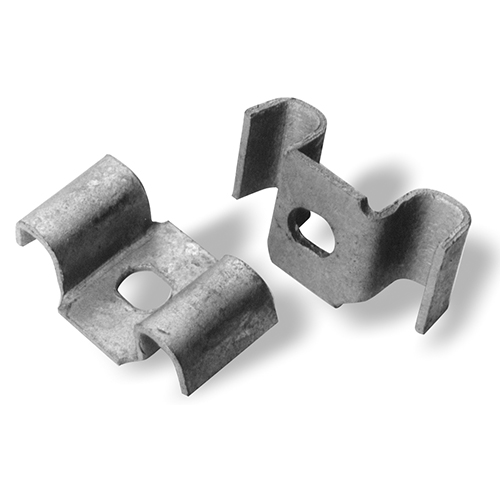

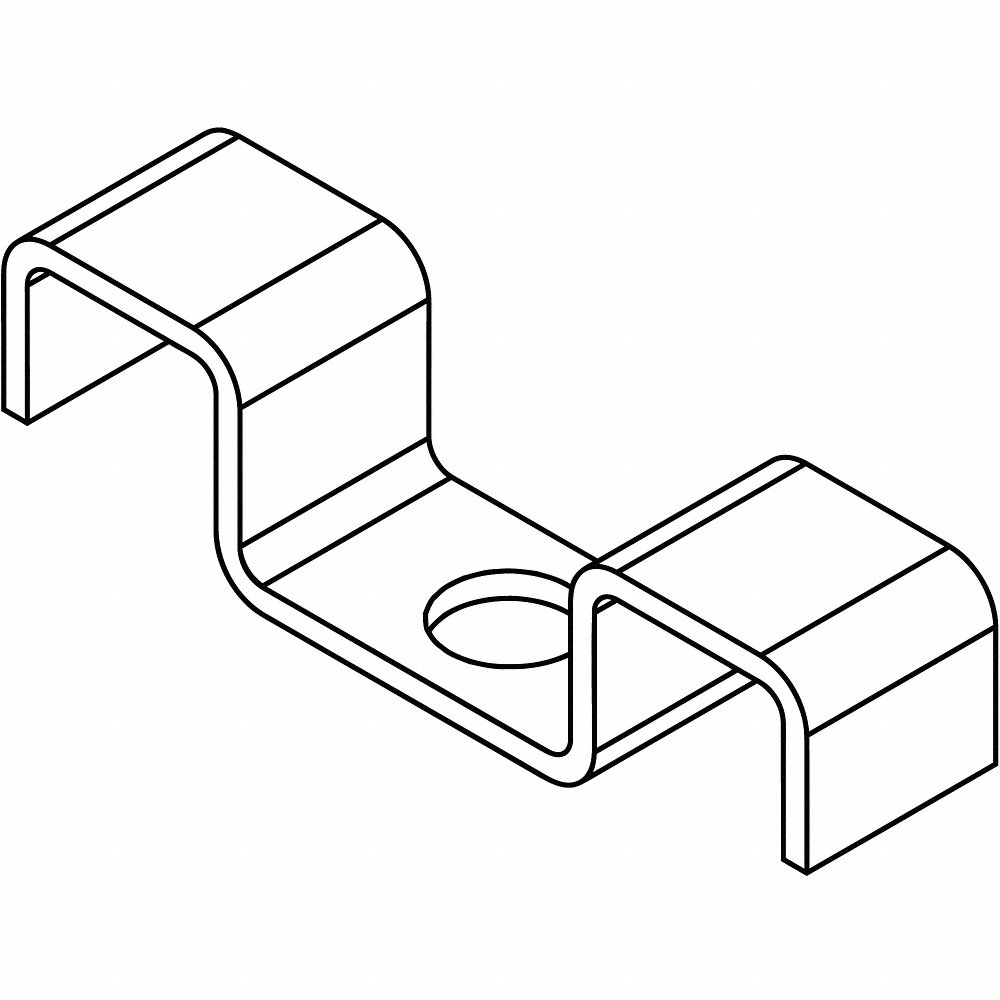

Grating Fasteners Saddle Clips:

  • Saddle clips are used for attaching grating to structures with the help of a screw, bolt or pin.
  • They are made from stainless steel / fibreglass to provide maximum resistance in corrosive environments and are compatible with a 0.25-inch diameter fastener only.
  • Model GSCF-10 is designed to fasten 19-space grating to structures and feature an oval-shaped hole to accommodate either a screw or a carriage bolt.

Frequently Asked Questions

What is a G-clip made of?

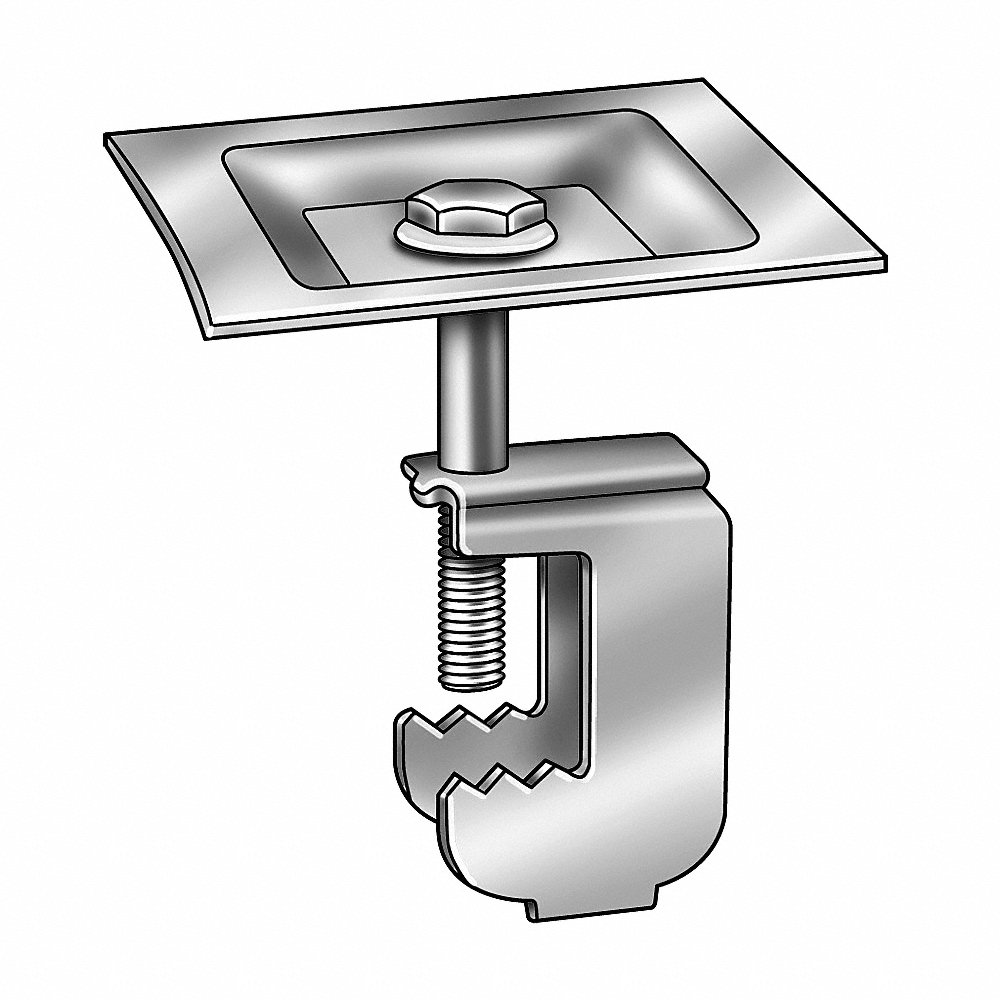

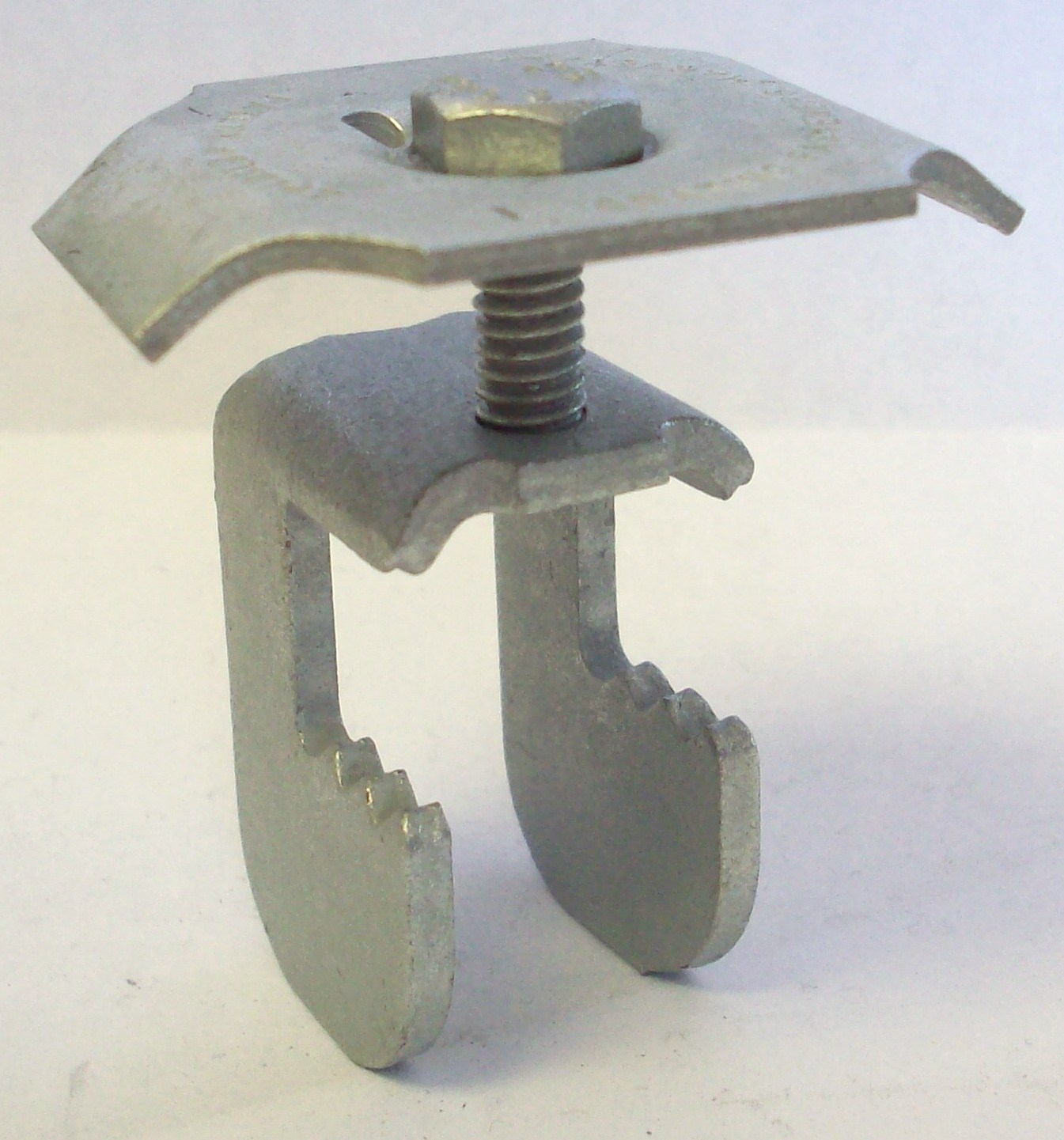

  • G-clip fasteners consist of three parts, assembled at the factory into a complete installation unit.
  • The main part is the grip-jaw portion of the assembly which includes a female-thread form in its upper portion. The jaw is die-stamped with die-cut, toothed segments facing upward which contact the underside of the structural member.
  • The second part is the stamped top designed to fit flat over the grating upper surface.
  • The third part, a 1/4 inch-20 threaded bolt, joins the body & top and can be adjusted as per requirement.

What is a grating used for?

Gratings are used in panels to optimise bending stiffness while minimising weight. They provide a stable flooring base & traction for superior safety. Gratings are common in industrial and commercial settings.

Are there any maintenance requirements for bar grating clips?

Periodic inspection and maintenance may be necessary to ensure optimal performance over time. This may include checking for signs of corrosion, tightening fasteners if necessary and replacing damaged clips as needed.

How do I choose the right bar grating clips for my project?

Selecting the appropriate grating clips depends on factors such as grating type, panel size, load requirements and installation method.

Are there any specific safety considerations when using these grating clips?

When installing grating clips, it is advisable to follow proper safety procedures, including wearing appropriate personal protective equipment (PPE) and using tools and equipment correctly. Additionally, ensure that all clips are securely fastened to prevent accidents or injuries during installation and operation.
