What is the significance of open-ended self-locking inserts?

Inserts having an open end allow installation of fasteners longer than the inserts.

What are some compatible accessories used with these self-locking inserts?

Raptor Supplies offers compatible insert tools like drill bits, standard taps, bolts with two nuts and installation bits for installing these inserts.

How to install a self-locking insert?

Drill a hole according to the insert length & diameter using a standard drill. Tap the drilled hole using a standard tap of the desired thread size. Wind the insert into the hole like an ordinary fastener using a screwdriver, bolt & jam nut or an optional E-Z LOK drive tool. 5 minutes after the threaded insert is placed in the hole, the pre-applied Loctite adhesive on the external threads starts setting for installing the fastener in minutes. After fully curing (72 hours), they can seal against liquids or gases having pressure up to 6000 psi.

Can we reuse these inserts once removed?

The external thread adhesive of these inserts starts setting after installation. Users can install a bolt inside it only if they do not want to remove it in future. Removing the bolt from the insert & the insert from the material after installation may destroy the adhesive & hence the insert's effectiveness. So, users can not reuse these inserts once removed from the application surface.

Self Locking Inserts

Description
FAQ

E-Z LOK

Grade 303 Stainless Steel Self Locking Inserts

Internal Thread Size	External Thread Size	Min. Full Thread Depth	External Class	Internal Class	Thread Type	Power Driver	Wall Type	Pkg. Qty.	Price (inc. GST)
#4-40	#10-32	9/32"	Class 2A	Class 2B	Coarse	-	Heavy Wall	10	SGD 73.12
#6-32	1/4"-20	11/32"	Class 2A	Class 2B	Coarse	4ZE51	Heavy Wall	5	SGD 41.25
#8-32	5/16"-18	7/16"	Class 2A	Class 2B	Coarse	4ZE52	Heavy Wall	5	SGD 45.86
#10-24	3/8"-16	15/32"	Class 2A	Class 2B	Coarse	4ZE53	Heavy Wall	5	SGD 54.31
#10-32	3/8"-16	15/32"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE53	Heavy Wall	5	SGD 54.41
1/4"-20	7/16"-14	1/2"	Class 2A	Class 2B	Coarse	4ZE54	Heavy Wall	5	SGD 50.41
1/4"-28	7/16"-14	1/2"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE54	Heavy Wall	5	SGD 55.02
5/16"-18	1/2"-13	9/16"	Class 2A	Class 2B	Coarse	4ZE55	Heavy Wall	5	SGD 53.20
5/8"-11	7/8"-9	13/16"	Class 2A	Class 2B	Coarse Internal/Coarse External	4ZE59	Heavy Wall	5	SGD 110.64
3/4"-10	1"-8	7/8"	Class 2A	Class 2B	Coarse	4ZE60	Heavy Wall	5	SGD 219.28
+ See More

POWERS FASTENERS

Carbon Steel Self Locking Inserts

Internal Thread Size	External Thread Size	Wall Type	Min. Full Thread Depth	External Class	Internal Class	Thread Type	Power Driver	Pkg. Qty.	Price (inc. GST)
#10-24	5/16"-18	Thin Wall	3/8"	Class 2A	Class 2B	Coarse	4ZE53	10	SGD 35.83
#10-32	5/16"-18	Thin Wall	3/8"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE53	10	SGD 35.40
1/4"-20	3/8"-16	Thin Wall	7/16"	Class 2A	Class 2B	Coarse	4ZE54	10	SGD 41.91
1/4"-28	3/8"-16	Thin Wall	7/16"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE54	10	SGD 39.62
5/16"-18	7/16"-14	Thin Wall	1/2"	Class 2A	Class 2B	Coarse	4ZE55	10	SGD 41.25
5/16"-24	7/16"-14	Thin Wall	1/2"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE55	10	SGD 49.10
3/8"-16	1/2"-13	Thin Wall	9/16"	Class 2A	Class 2B	Coarse	4ZE56	10	SGD 46.37
3/8"-24	1/2"-13	-	9/16"	-	-	UNF Internal, UNC External	4ZE56	10	SGD 53.26
-	-	-	-	-	-	Coarse	-	5	SGD 30.26
-	-	-	-	-	-	UNF Internal, UNC External	4ZE57	5	SGD 30.65
+ See More

MICRO 100

Locking Screws, Standard

Finish	Price (inc. GST)
Uncoated	RFQ
Uncoated	RFQ

MICRO 100

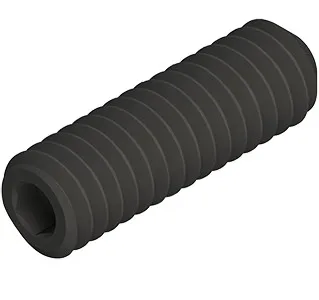

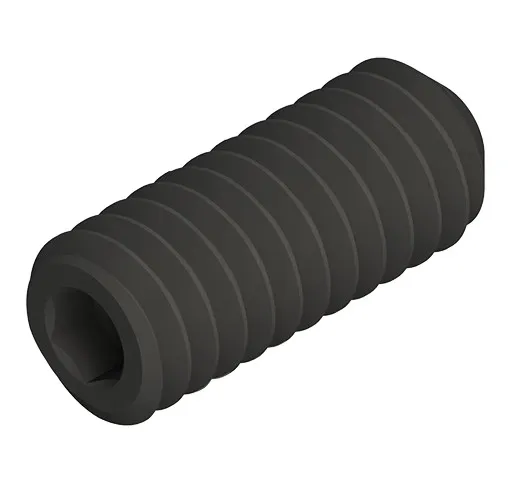

Locking Screws, Quick Change

Finish	Pkg. Qty.	Price (inc. GST)
Uncoated	1	SGD 9.43
Uncoated	10	SGD 66.18
Uncoated	1	SGD 25.86
Uncoated	1	SGD 9.43
Uncoated	10	SGD 64.87
Uncoated	1	RFQ

DEWALT

Setting Tool, Carbon Steel, 1/4 In Size, Zn Plated

Finish	Size	Price (inc. GST)
Zinc Plated	1/4"	SGD 39.38

DEWALT

Setting Tool, Carbon Steel, 3/8 In Size, Zn Plated

Finish	Size	Price (inc. GST)
Zinc Plated	3/8"	SGD 36.45

DEWALT

Setting Tool, 1/2 In - 13 Internal Thread Size, Carbon Steel, 1/2 In Size, Zn Plated

Internal Thread Size	Finish	Size	Price (inc. GST)
1/2"-13	Zinc Plated	1/2"	SGD 61.31

DEWALT

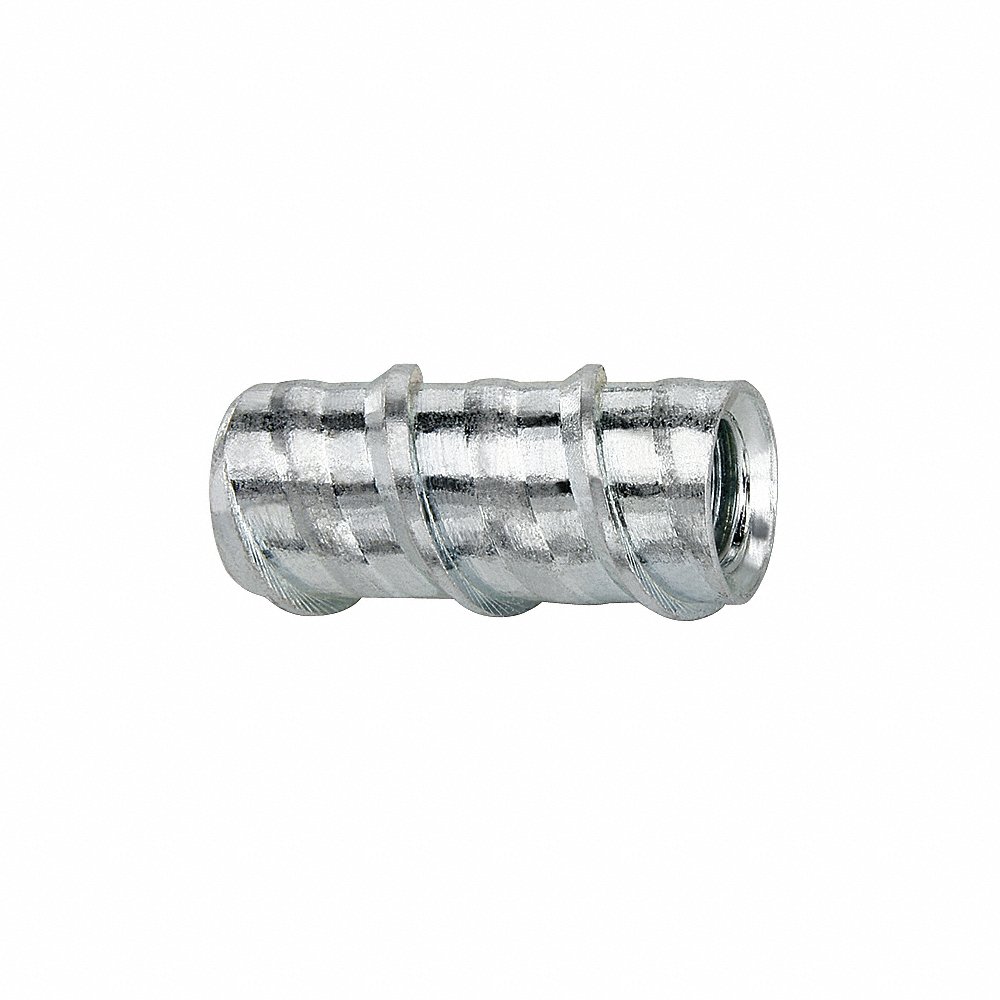

Screw Anchor, 1/4 In - 20 Int. Thread Size, 11/16 In Lg., Carbon Steel, 1/4 In Size, 100PK

Internal Thread Size	Wall Type	Min. Full Thread Depth	Finish	Thread Type	Size	Min. Hole Depth	Pkg. Qty.	Price (inc. GST)
1/4"-20	Heavy Wall	11/16"	Zinc Plated	Coarse	1/4"	1 5/8"	100	SGD 376.07

DEWALT

Screw Anchor, 3/8 In - 16 Int. Thread Size, 11/16 In Lg., Carbon Steel, 3/8 In Size, 50PK

Internal Thread Size	Wall Type	Min. Full Thread Depth	Finish	Thread Type	Size	Min. Hole Depth	Pkg. Qty.	Price (inc. GST)
3/8"-16	Heavy Wall	11/16"	Zinc Plated	Coarse	3/8"	1 5/8"	50	SGD 162.47

DEWALT

Screw Anchor, 1/2 In - 13 Int. Thread Size, 29/32 In Lg., Carbon Steel, 1/2 In Size, 50PK

Internal Thread Size	Wall Type	Min. Full Thread Depth	Finish	Thread Type	Size	Min. Hole Depth	Pkg. Qty.	Price (inc. GST)
1/2"-13	Heavy Wall	29/32"	Zinc Plated	Coarse	1/2"	2 1/2"	50	SGD 602.51

RIDGID

Hoselock, Adaptor

MPN	Price (inc. GST)
83732	SGD 14.46

Description

Self-locking inserts are suitable for locking threaded fasteners inside a tapped hole in automobile, aerospace and maintenance applications. Raptor Supplies offers these thread-locking inserts from E-Z Lok. They lock the threads of the fastener and prevent their loosening due to vibration.

Self Locking Inserts

Grade 303 Stainless Steel Self Locking Inserts

Carbon Steel Self Locking Inserts

Locking Screws, Standard

Locking Screws, Quick Change

Setting Tool, Carbon Steel, 1/4 In Size, Zn Plated

Setting Tool, Carbon Steel, 3/8 In Size, Zn Plated

Setting Tool, 1/2 In - 13 Internal Thread Size, Carbon Steel, 1/2 In Size, Zn Plated

Screw Anchor, 1/4 In - 20 Int. Thread Size, 11/16 In Lg., Carbon Steel, 1/4 In Size, 100PK

Screw Anchor, 3/8 In - 16 Int. Thread Size, 11/16 In Lg., Carbon Steel, 3/8 In Size, 50PK

Screw Anchor, 1/2 In - 13 Int. Thread Size, 29/32 In Lg., Carbon Steel, 1/2 In Size, 50PK

Hoselock, Adaptor

Description

Frequently Asked Questions

What is the significance of open-ended self-locking inserts?

What are some compatible accessories used with these self-locking inserts?

How to install a self-locking insert?

Can we reuse these inserts once removed?
