U-Bolts(513 Products)

Description

U-bolts are used to support heavy objects from walls, poles and ceilings. Raptor Supplies offers a wide range of U-bolts from brands like Grainger, Anvil, ZSI, Chicago Hardware and Calbrite. The U shape of these bolts keeps them firmly in place, providing stability to the support.

Features

  • They are ideal for supporting pipe assemblies transporting both liquids and gases.
  • These U-bolts feature screw threadings on both ends to ensure a secure connection.

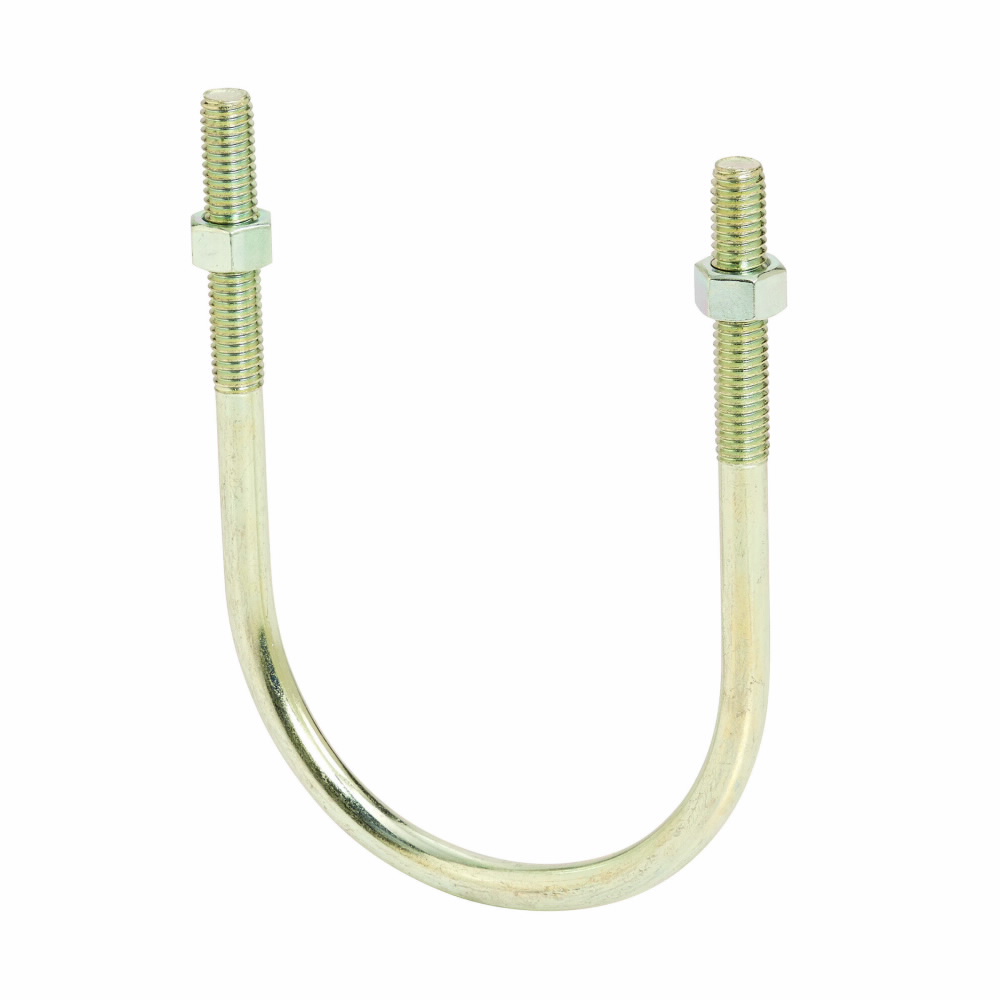

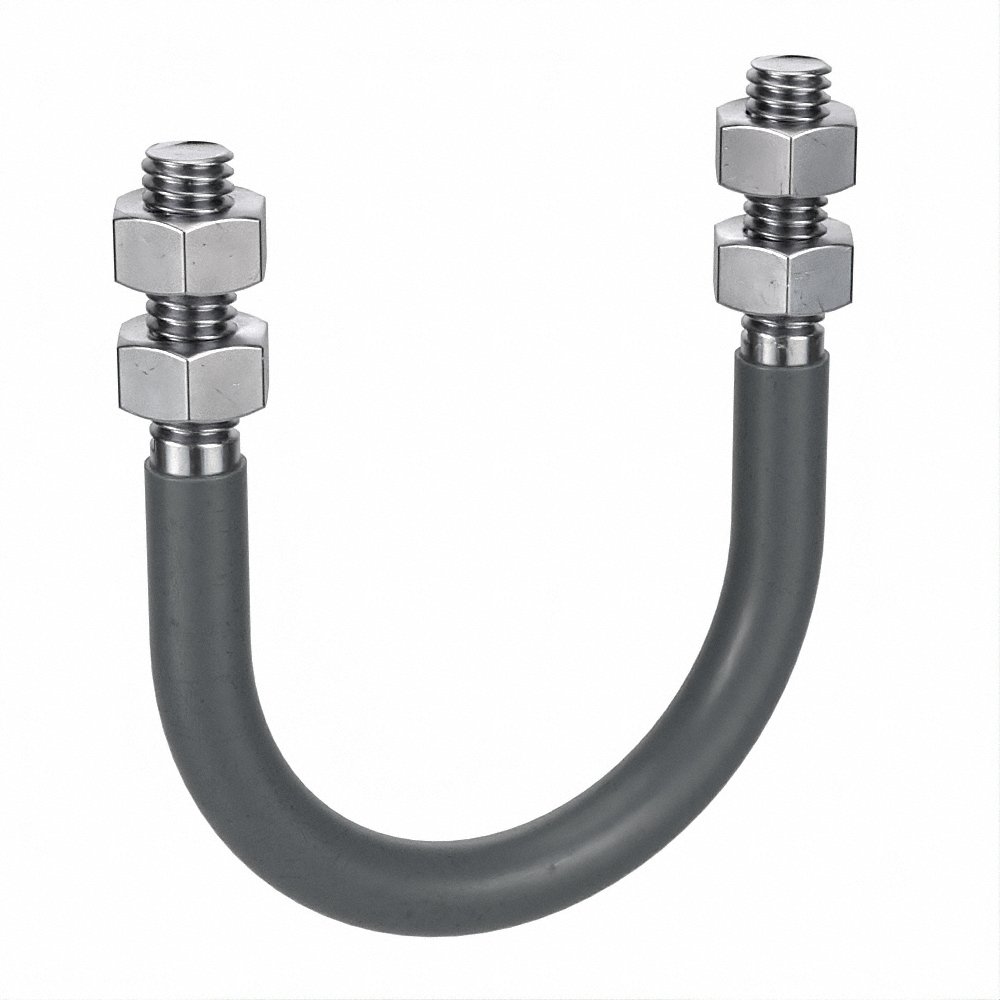

  • These U-bolts are available in cushioned, square / round bend, plate, long tangent, round and standard configurations.
  • Anvil U-bolts are used with hex nuts for supporting both light & heavy loads and are also ideal for handling copper, glass, brass and aluminium pipes. These U-bolts feature carbon steel / stainless steel construction for withstanding both tensile and compressive stresses. They offer zinc plated / 304 stainless steel finish for resistance against oxidation on the exposed surfaces.
  • For applications on leaf spring trucks and trailers, Chicago Hardware offers round bend U-bolts made of low-carbon steel / 304 stainless steel for corrosion resistance. They come with two hex nuts & NC rolled threads for ease of installation and have hot-dipped galvanised / plain / zinc finish to provide crack resistance. These U-bolts are compatible with 1/4 - 18 inch steel or wrought iron pipes.

Frequently Asked Questions

What are U-bolt nuts made of?

These nuts are made of steel / stainless steel / aluminium / polyurethane rubber, ensuring high impact and abrasion resistance.

What is the significance of nonconductive U-bolts?

These fibreglass-reinforced polyurethane U-bolts do not conduct electricity and prevent metal-to-metal corrosion. These U-bolts are chemical, UV and abrasion resistant.

What accessories are compatible with these U-bolts?

Standoff brackets can be used with U-bolts for conveying pipes, tubes and cable raceways at a distance from walls, floors and ceilings. They offer extra clearance that allows access for maintenance as well as adding & removing lines.

How do we measure the size of a U-bolt?

The length of these fasteners is measured from the bolt end to the inside of the bends. The width of these U-bolts is measured between the legs.

What mounting options do these U-bolts offer?

These U-bolts offer threaded / screw mounting for easy and secure installation.

What types of nuts can be used with U-bolts?

U-bolts are compatible with hex nuts, nylon-insert lock nuts and serrated flange lock nuts.

How to install U-bolts?

  • Remove both nuts from all sides of the U-bolt.
  • Place the U-bolt around the pipe to be attached and thread the ends of the bolt through the holes in the supporting beam or structure.
  • Thread all the nuts on each of the bolt's outer ends.
  • Tighten the nuts that are closest to the support beam manually.
  • Finally, tighten the outer nuts on ends of the U-bolt with a wrench or an influence tool.

What safety precautions should be taken while using U-bolts?

  • Before using, check for damages that may be caused due to the high pressure exerted while pulling a load with a truck.
  • Tighten the nuts if loosen to prevent slipping.
  • Replace the U-bolt if any crack is found.
  • If the U-bolt is rusted, get a new one.

How do I determine the right size of U-bolt for my application?

You can determine the right size of standard U-bolts by measuring the diameter of the steel bar or pipe you need to attach and selecting a U-bolt that matches or slightly exceeds that diameter.

When should I use square U-bolts?

Square U-bolts are used in applications where there is a need for greater stability and resistance to movement or rotation. They are ideal for securing items with square or rectangular shapes, such as lumber, beams, poles or frames. Square U-bolts provide a more secure grip, minimising the risk of shifting or slipping.
