Press Fit Dowel Pins

Description
Features
FAQ

Stainless Steel

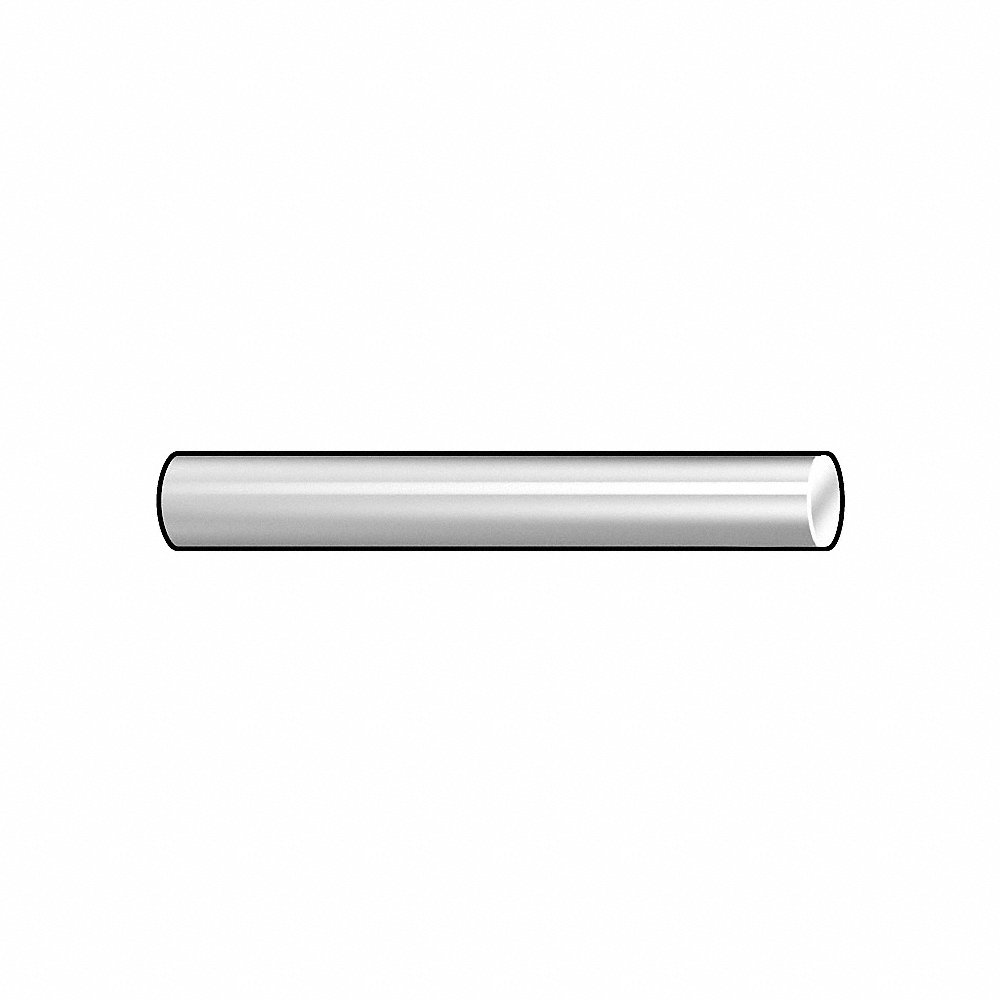

2mm Stainless Steel Press Fit Dowel Pins

Shank Length	Hardness	Pin Style	Length Tolerance	Pin Type	Pin Dia.	Material	Grade	Pkg. Qty.	Price
5 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2 mm	Stainless Steel	Grade 416	10	SGD 27.35
6 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2 mm	Stainless Steel	Grade 416	10	SGD 37.25
8 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2 mm	Stainless Steel	Grade 416	10	SGD 33.19
10 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2 mm	Stainless Steel	Grade 416	10	SGD 40.56
12 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2 mm	Stainless Steel	Grade 416	10	SGD 48.52
14 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2 mm	Stainless Steel	Grade 416	10	SGD 29.83
16 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2 mm	Stainless Steel	Grade 416	10	SGD 30.43
20 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2 mm	Stainless Steel	Grade 416	10	SGD 69.42
24 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2 mm	Stainless Steel	Grade 416	10	SGD 38.14

APPROVED VENDOR

Stainless Steel

2.5mm Stainless Steel Press Fit Dowel Pins

Shank Length	Hardness	Pin Style	Length Tolerance	Pin Type	Pin Dia.	Material	Grade	Pkg. Qty.	Price
5 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2.5 mm	Stainless Steel	Grade 416	10	SGD 27.07
6 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2.5 mm	Stainless Steel	Grade 416	10	SGD 62.04
8 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2.5 mm	Stainless Steel	Grade 416	10	SGD 28.27
10 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2.5 mm	Stainless Steel	Grade 416	10	SGD 33.95
12 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2.5 mm	Stainless Steel	Grade 416	10	SGD 34.35
-	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2.5 mm	Stainless Steel	Grade 416	10	SGD 68.46
16 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2.5 mm	Stainless Steel	Grade 416	10	SGD 68.87
20 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2.5 mm	Stainless Steel	Grade 416	10	SGD 70.13
24 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	2.5 mm	Stainless Steel	Grade 416	10	SGD 31.25

APPROVED VENDOR

Stainless Steel

3mm Stainless Steel Press Fit Dowel Pins

Shank Length	Hardness	Pin Style	Length Tolerance	Pin Type	Pin Dia.	Material	Grade	Pkg. Qty.	Price
6 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	3 mm	Stainless Steel	Grade 416	10	SGD 36.11
8 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	3 mm	Stainless Steel	Grade 416	10	SGD 40.56
10 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	3 mm	Stainless Steel	Grade 416	10	SGD 42.83
12 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	3 mm	Stainless Steel	Grade 416	10	SGD 43.61
14 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	3 mm	Stainless Steel	Grade 416	10	SGD 28.17
16 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	3 mm	Stainless Steel	Grade 416	10	SGD 33.64
20 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	3 mm	Stainless Steel	Grade 416	10	SGD 47.29
-	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	3 mm	Stainless Steel	Grade 416	10	SGD 47.56

APPROVED VENDOR

Stainless Steel

4mm Stainless Steel Press Fit Dowel Pins

Shank Length	Hardness	Pin Style	Length Tolerance	Pin Type	Pin Dia.	Material	Grade	Pkg. Qty.	Price
10 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	4 mm	Stainless Steel	Grade 416	10	SGD 46.58
12 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	4 mm	Stainless Steel	Grade 416	10	SGD 45.34
14 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	4 mm	Stainless Steel	Grade 416	10	SGD 46.14
16 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	4 mm	Stainless Steel	Grade 416	10	SGD 46.14
20 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	4 mm	Stainless Steel	Grade 416	10	SGD 30.83
24 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	4 mm	Stainless Steel	Grade 416	10	SGD 36.79

APPROVED VENDOR

Stainless Steel

5mm Stainless Steel Press Fit Dowel Pins

Shank Length	Hardness	Pin Style	Length Tolerance	Pin Type	Pin Dia.	Material	Grade	Pkg. Qty.	Price
10 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	5 mm	Stainless Steel	Grade 416	10	SGD 34.95
12 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	5 mm	Stainless Steel	Grade 416	10	SGD 47.98
16 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	5 mm	Stainless Steel	Grade 416	10	SGD 41.90
20 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	5 mm	Stainless Steel	Grade 416	10	SGD 50.84
24 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	5 mm	Stainless Steel	Grade 416	10	SGD 50.13
30 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	5 mm	Stainless Steel	Grade 416	10	SGD 40.56

APPROVED VENDOR

Stainless Steel

6mm Stainless Steel Press Fit Dowel Pins

Shank Length	Hardness	Pin Style	Length Tolerance	Pin Type	Pin Dia.	Material	Grade	Pkg. Qty.	Price
12 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	6 mm	Stainless Steel	Grade 416	10	SGD 44.45
16 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	6 mm	Stainless Steel	Grade 416	10	SGD 37.69
20 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	6 mm	Stainless Steel	Grade 416	10	SGD 67.83
-	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	6 mm	Stainless Steel	Grade 416	10	SGD 65.45
30 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	6 mm	Stainless Steel	Grade 416	10	SGD 71.70
40 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	6 mm	Stainless Steel	Grade 416	10	SGD 75.03

APPROVED VENDOR

Stainless Steel

8mm Stainless Steel Press Fit Dowel Pins

Shank Length	Hardness	Pin Style	Length Tolerance	Pin Type	Pin Dia.	Material	Grade	Pkg. Qty.	Price
16 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	8 mm	Stainless Steel	Grade 416	10	SGD 89.56
20 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	8 mm	Stainless Steel	Grade 416	10	SGD 63.20
24 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	8 mm	Stainless Steel	Grade 416	10	SGD 59.11
30 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	8 mm	Stainless Steel	Grade 416	10	SGD 53.53
40 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	8 mm	Stainless Steel	Grade 416	10	SGD 57.41

APPROVED VENDOR

Stainless Steel

10mm Stainless Steel Press Fit Dowel Pins

Shank Length	Hardness	Pin Style	Length Tolerance	Pin Type	Pin Dia.	Material	Grade	Pkg. Qty.	Price
20 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	10 mm	Stainless Steel	Grade 416	10	SGD 119.55
24 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	10 mm	Stainless Steel	Grade 416	10	SGD 40.56
-	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	10 mm	Stainless Steel	Grade 416	10	SGD 126.71
40 mm	Rockwell C36-C42	Hardened Ground	0 mm to +0.5 mm	Press Fit	10 mm	Stainless Steel	Grade 416	10	SGD 83.65

Description

Press fit dowel pins are fastener components used to securely join two or more parts together. They are cylindrical in shape with a chamfered end and are inserted into pre-drilled holes. Dowel pins are known for their high mechanical strength and are used in the automotive, aerospace and electronics industries. They are used to precisely locate components in machines, tools, jigs and fixtures. These press fit dowel pins can join parts together in the assembly process as well. They are also used to join parts in applications where there is a need for a precise fit. Press fit dowel pins are available in a range of sizes and materials, including steel, stainless steel, brass and plastic.

Features

Press fit dowel pins are used in precision assemblies where close tolerance alignment of components is critical.
These metal dowel pins have a slightly oversized tolerance and are designed for use with a hole that is slightly smaller than the pin diameter.

Press Fit Dowel Pins

2mm Stainless Steel Press Fit Dowel Pins

2.5mm Stainless Steel Press Fit Dowel Pins

3mm Stainless Steel Press Fit Dowel Pins

4mm Stainless Steel Press Fit Dowel Pins

5mm Stainless Steel Press Fit Dowel Pins

6mm Stainless Steel Press Fit Dowel Pins

8mm Stainless Steel Press Fit Dowel Pins

10mm Stainless Steel Press Fit Dowel Pins

Description

Features

Frequently Asked Questions

What is clearance in dowel pins?

What is interference?

What is the difference between press fit and slip fit?
