Hydraulic Crimping Tool System

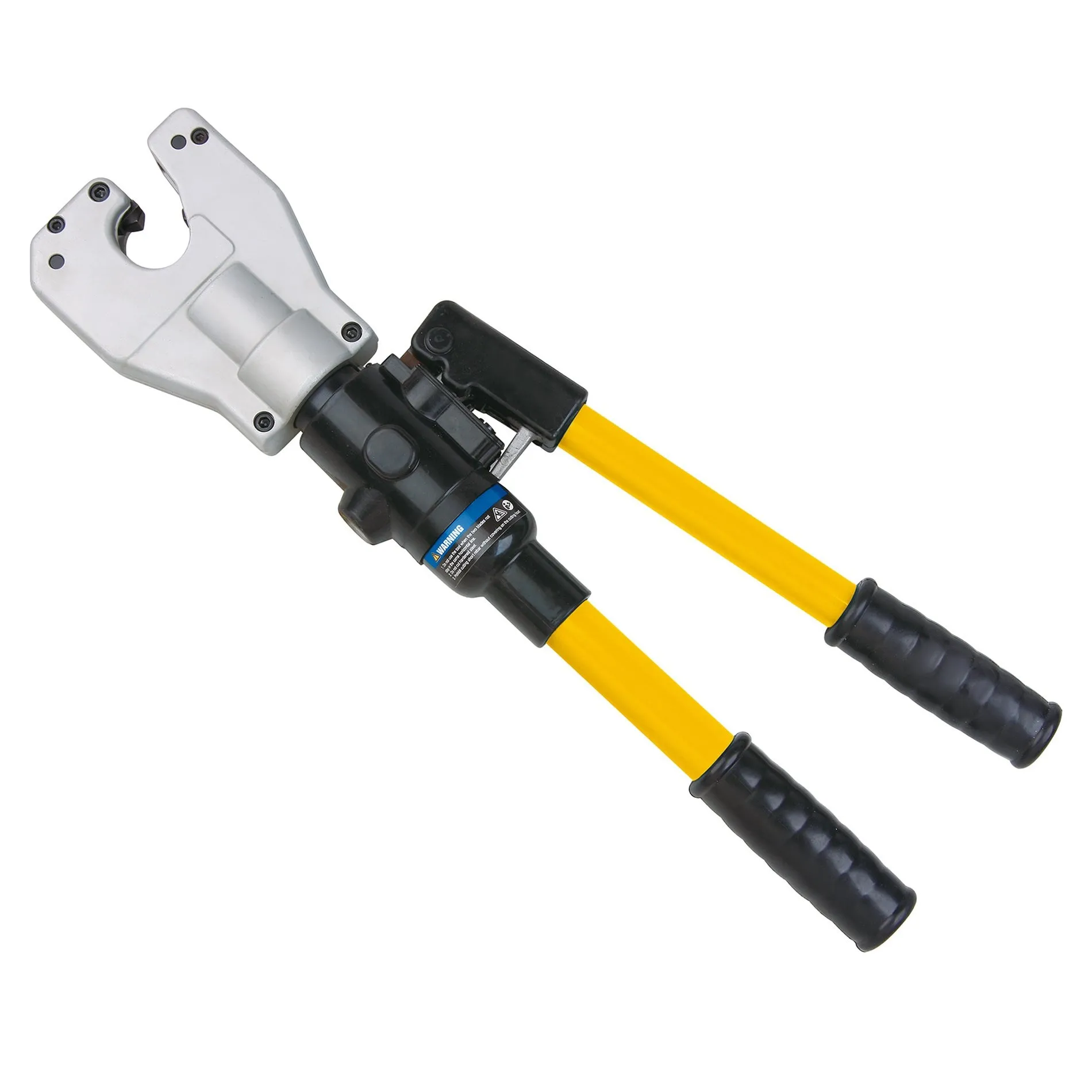

Crimping tools are best suited for crimping braided, spiral, thermoplastic & teflon hoses, C- & H-taps, lugs and overhead tension sleeves. Raptor Supplies offers a wide array of Aeroquip, Burndy, Eaton, Eclipse, Greenlee, Parker and Thomas & Betts hydraulic crimping tools. Eclipse hydraulic crimpers feature an interchangeable die for eliminating the requirement of additional tools, a flexible head capable of rotating up to 360 degrees and a built-in safety valve for bypassing oil levels upon reaching the maximum pressure limit. Selected models from Eaton feature a positive stop crimp diameter control for facilitating consistent crimping without any requirement of prior adjustments or calibrations, variable frame position for ease-of-installation and a hinged handle for fatigue-free operation with maximum gripping action. Choose from an extensive range of these tools available in pressure ratings ranging from 2500 to 10000 psi.

• These crimping tools consist of a hydraulic pump, crimping head and interchangeable dies to perform the crimping process.
• The hydraulic pump creates the necessary pressure to operate the crimping head.
• The head of the crimping tool houses the dies and is attached to the hydraulic pump. It helps to position the dies in the correct location to make a crimp.
• These pressure welding tools come with a set of interchangeable dies with different shapes and sizes to accommodate different wire and terminal sizes.
• The wire and terminal are placed into the correct position between the dies.
• Once correctly positioned, the operator can activate the hydraulic pump to apply pressure to the crimping die.
• The crimping die compresses onto the wire and terminal, thereby creating a secure and reliable electrical connection.
• Once the crimping is complete, the pressure is released and the wire & terminal can be removed from the dies.

Greenlee Crimping Tools :

• These quad-point crimping tools are designed to accommodate four indenters to make the crimp. Each intender applies pressure to the wire and terminal from a different angle, resulting in a uniform and consistent crimp.
• They feature a hydraulic pump delivering a maximum pressure of 10000 psi that allows crimping of both small-and large-size wires and terminals with minimal ease.
• They feature a compact and lightweight design that allows application in tight spaces.
• They are equipped with 3/8 inches male screw couplers to connect the hydraulic pump to the crimping head.
• They include a test gauge and test slugs to meet industry standards and user safety. They also come with a carrying case to provide storage and transport convenience.

Eaton Hydraulic Crimping Machine :

• This positive stop crimping machine allows consistent crimping at all times with no operator adjustment.
• It features a lightweight design and hand-operated function to allow easy transport and operation where electricity is not available.
• This crimping machine comes with high-efficiency PTFE grease to provide exceptional lubrication and reduce friction between moving parts.
• It can be mounted on a workbench for providing stability and utilises 2-piece collet assemblies to securely hold or position the hose or fitting during the crimping process.
• This crimping machine also includes spacer rings and a sliding pusher to create accurate and uniform crimps on hoses and fittings.
