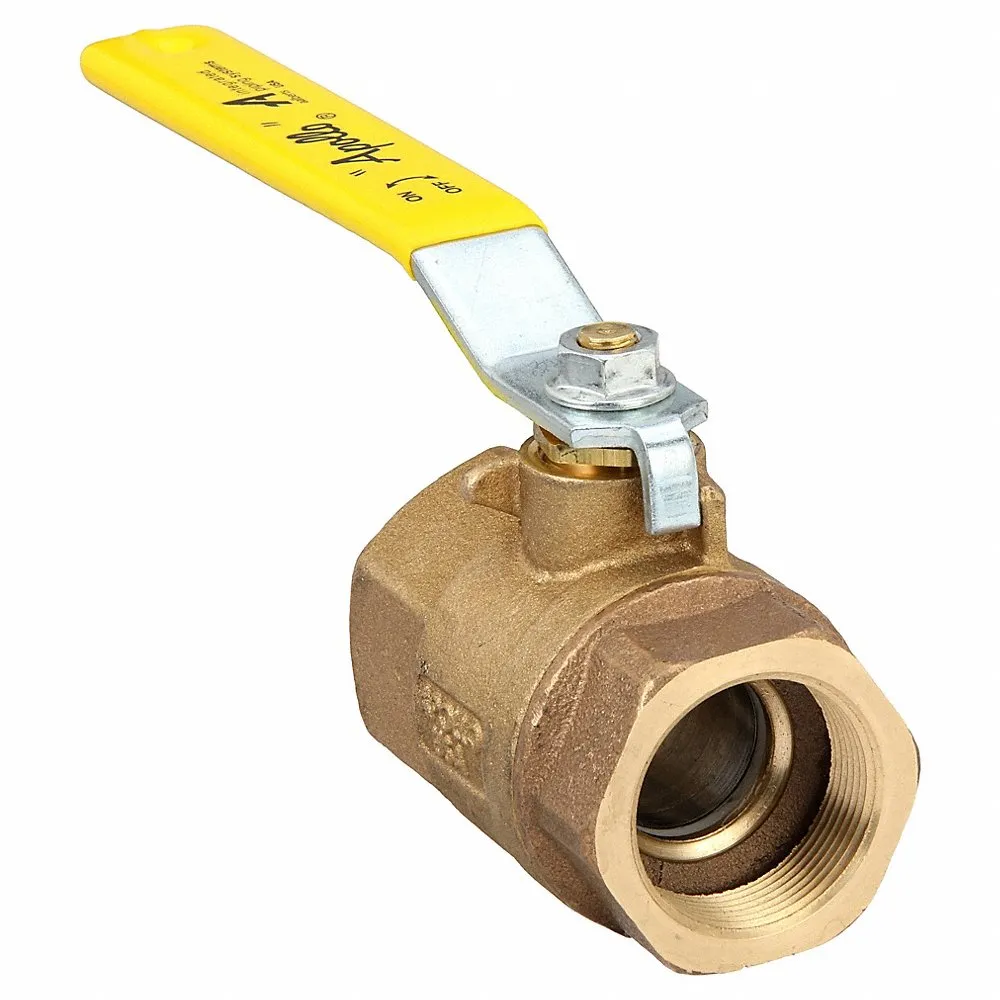

APOLLO VALVES 70-100 Series Bronze Inline Ball Valves
Item: AA9MYG
Model: 7010710
Cross Ref: 1DZJ1
Check Availability
In Stock
Get it by Wednesday, Jul 29
Stainless Steel
5% off
SGD302.04 /unit (inc. GST)
Request Quote
Payment
Delivery
- Specifications
- Shipping Information
Specifications
| Item | Ball Valve |
|---|---|
| 3-a Certified | Not Rated |
| Ball Finish | Bronze , Chrome Plated |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Bore Type | Reduced Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume(cv) | 0.01 |
| Color | Yellow, Bronze |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1 1/2" |
| Connection Size-side 2 | 1 1/2" |
| Connection Type | FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| Continuous Medium Temp. | -20.002°F to +500°F |
| D1 | 1.9 , 2.56 |
| D2 | 1.9 |
| Dimensions | 7.45" x 2.76" x 4.43" |
| E | 1.12 |
| Finish | None |
| For Media | Steam |
| Grease-free | No |
| H2 | 17 |
| Handgrip Length | 1" |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Length | 7 3/4" |
| Handle Material | Stainless Steel |
| Handle Type | Lever |
| Handle/hand Wheel Height | 0.9" |
| Housing Construction | 2-Part |
| Length Of Connection 1 | 2.14" |
| Length Of Connection 2 | 2.17" |
| M1 | 1 |
| M2 | 7.75 |
| Max. Medium Temp. | 500°F |
| Max. Operating Pressure | 600 psi |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure-combustible Gas | Not Rated |
|---|---|
| Max. Steam Pressure | 150 psi |
| Media Temp. | -20°F to +500°F |
| Medically Clean | No |
| Min. Medium Temp. | -20°F |
| Nominal Valve Size | 1 1/2" |
| Outside Pipe Dia. Connection 1 | 1.9" |
| Outside Pipe Dia. Connection 2 | 1.9" |
| Overall Length | 4.37" |
| Port Type | Standard |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 70 Series Ball Valves |
| Shape | Straight |
| Size | 1 1/2" |
| Spindle Material | Brass |
| Stem Grade | Grade B16 |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. | 0°F to 450°F |
| U | 1.31 |
| V | 2.18 |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 70 Series |
| With Coupling Connection 1 | No |
| With Coupling Connection 2 | No |
| With Drain Possibility (connection) | No |
| With Drain Valve | No |
| With Filter | No |
| With Insulation Shell | No |
| With Non-return Valve | No |
| With Thermometer | No |
| Working Length Connection 1 | 1.47" |
| Working Length Connection 2 | 1.49" |
| Y | 0.9 |
| Z1 | 1.47 |
| Z2 | 1.49 |
Shipping Information
| Height (cm) | 11.25 |
|---|---|
| Length (cm) | 18.92 |
| Width (cm) | 7.01 |
| HS Code | 8481801085 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 2.4525 |
