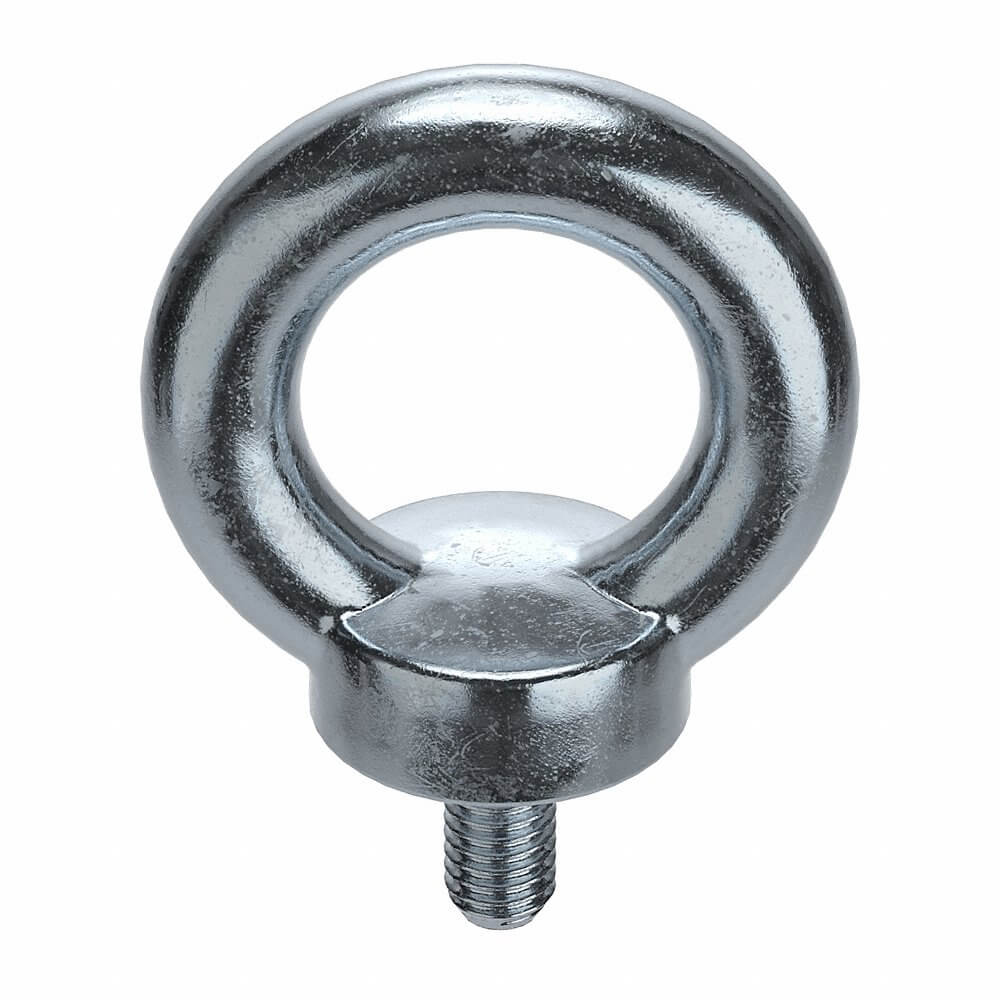

| Item | Eyebolt |
|---|---|
| Application | Lifting |
| Eye Closure | Closed |
| Eye Inside Dia. | 20 mm |
| Eye Outside Dia. | 36 mm |
| Finish | Zinc Plated |
| Includes Nut | Nut Not Included |
| Length | 49 mm |
| Made In North America | Not Made In North America |
| Material | Steel |
| Max Working Load | 70 lbs. |
| Overall Length | 49 mm |
| Screw Size | M6 |
| Shank Dia. | 6 mm |
|---|---|
| Shank Length | 13 mm |
| Shoulder Dia. | 20 mm |
| Shoulder Length | 6 mm |
| Shoulder Style | With Shoulder |
| System Of Measurement | Metric |
| Thread Length | 13 mm |
| Thread Size | M6 x 1 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Machinery Eye Bolt |
| Working Load Limit | 70 lbs. |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 15.24 |
| Width (cm) | 3.81 |
| HS Code | 7318152095 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 0.1575 |
| Style | Model | Thread Size | Shank Length | Eye Inside Dia. | Thread Length | Eye Outside Dia. | Working Load Limit | Shank Dia. | Shoulder Dia. | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RB580080-003P2 | M8 x 1.25 | 13 mm | 20 mm | 13 mm | 36 mm | 140 lbs. | 8 mm | 20 mm | 3 | SGD 40.56 | |
| A | RB580100-003P2 | M10 x 1.5 | 17 mm | 25 mm | 17 mm | - | 230 lbs. | 10 mm | 25 mm | 3 | SGD 51.77 | |
| A | RB580120-002P2 | M12 x 1.75 | 20.5 mm | 30 mm | 20.5 mm | 54 mm | 339 lbs. | 12 mm | 30 mm | 2 | SGD 55.42 | |
| A | RB580160-002P2 | M16 x 2 | 27 mm | 35 mm | 27 mm | 63 mm | 698 lbs. | 16 mm | 35 mm | 2 | SGD 74.45 | |
| A | RB580200-001P2 | M20 x 2.5 | 30 mm | 40 mm | 30 mm | 72 mm | 1197 lbs. | 20 mm | 40 mm | 1 | SGD 40.56 | |
| A | RB580240-001P2 | M24 x 3 | 36 mm | 50 mm | 36 mm | 90 mm | 1796 lbs. | 24 mm | 50 mm | 1 | SGD 74.32 | |
| A | RB580300-001P2 | M30 x 3.5 | 45 mm | 60 mm | 45 mm | 108 mm | 3592 lbs. | 30 mm | 65 mm | 1 | SGD 146.17 |
