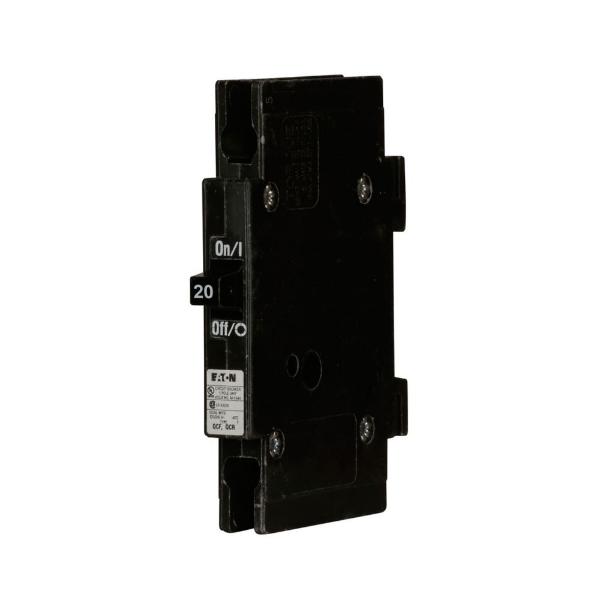

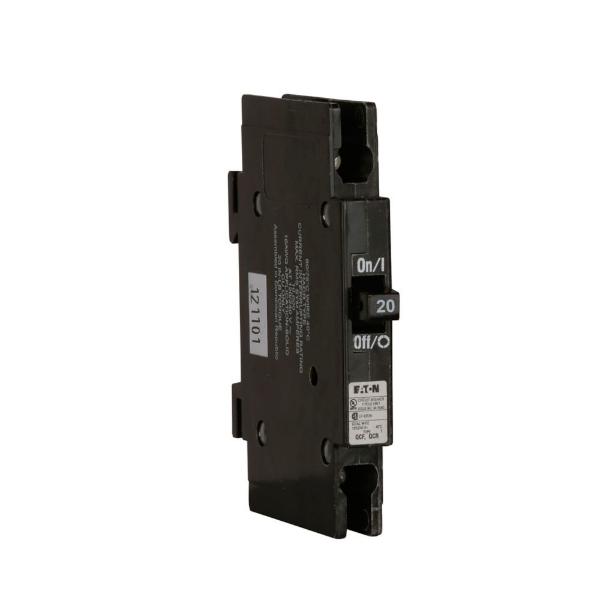

EATON QCR1020T Thermal-Magnetic Circuit Breaker, Type Qcr, 20 A, 10 Kaic, 1-Pole, 120/240 V
Item: BH6NPT
Model: QCR1020T
14 In Stock
Ships within 2 days via
5% off
SGD104.37/unit
(inc. GST)
Request Quote
FREE delivery on orders over SGD200
Specifications
| Item | Circuit Breaker |
|---|---|
| Amps | 20A |
| Application | Rear Mounting |
| Circuit Breaker Type | QCR |
| Connection | Cable-in/cable-out |
| Features | Ring Or Spade Lug Terminals |
| Height | 5.1" |
| Interrupt Rating | 10 kAIC |
| Length | 3.3" |
|---|---|
| Mounting Type | Rear |
| No. Of Poles | 1 |
| Notes | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided). Switching Duty Rated For Fluorescent Lighting Applications. |
| Terminals | Ring Or Spade Lug |
| Trip Type | Thermal-magnetic |
| Type | Industrial Circuit Breaker |
| Width | 1.3" |
Shipping Information
| Height (cm) | 12.95 |
|---|---|
| Length (cm) | 8.38 |
| Width (cm) | 3.3 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.1125 |
Related Products
| Style | Model | height | no. of poles | amps | voltage | interrupt rating | circuit breaker type | notes | terminals | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | QCR1010 | 1 1/5" | 1 | 10A | - | 10 kAIC | QCR | Standard Breaker Terminals Are Box Type Lugs. | - | SGD76.43 | |
| B | QCR1015 | 1 1/5" | 1 | 15A | - | 10 kAIC | QCR | Standard Breaker Terminals Are Box Type Lugs. Switching Duty Rated For Fluorescent Lighting Applications. | - | SGD76.43 | |
| B | QCR1015T | 1 1/5" | 1 | 15A | - | 10 kAIC | QCR | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided). Switching Duty Rated For Fluorescent Lighting Applications. | Ring Or Spade Lug | SGD104.37 | |
| C | QCR1025 | 1 1/5" | 1 | 25A | - | 10 kAIC | QCR | Standard Breaker Terminals Are Box Type Lugs. | - | SGD75.33 | |
| D | QCR1030 | 1 1/5" | 1 | 30A | 120/240V | 10 kAIC | QCR | Standard Breaker Terminals Are Box Type Lugs. | - | SGD76.43 | |
| E | QCR1035 | 1.3" | 1 | 35A | 120/240V | 10 kAIC | QCR | Standard Breaker Terminals Are Box Type Lugs. | - | SGD75.33 | |
| F | QCR1040 | 1 1/5" | 1 | 40A | 120/240V | 10 kAIC | QCR | Standard Breaker Terminals Are Box Type Lugs. | - | SGD75.33 |
