| Item | Carbonator Pump Motor |
|---|---|
| Bearing Type | Ball |
| Body Dia. | 5 3/5" |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.4-3.6/7.1-7.2A |
| Height | 5 13/16" |
| Hp | 1/2 hp |
| Hz | 60 Hz |
| Insulation Class | Class B |
| Length Less Shaft | 8 9/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
|---|---|
| Motor Sub Application | Carbonator Pump |
| Motor Thermal Protection | Automatic |
| Motor Type | Split Phase |
| Mounting | Cradle |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 63.3% |
| Overall Height | 5.812" |
| Overall Length | 8 3/4" |
| Phase | 1 |
| Rotation | Clockwise/Counter Clockwise |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1/4" |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/230V AC |
| standard | CE MARK, CSA CERTIFIED, UL RECOGNIZED |

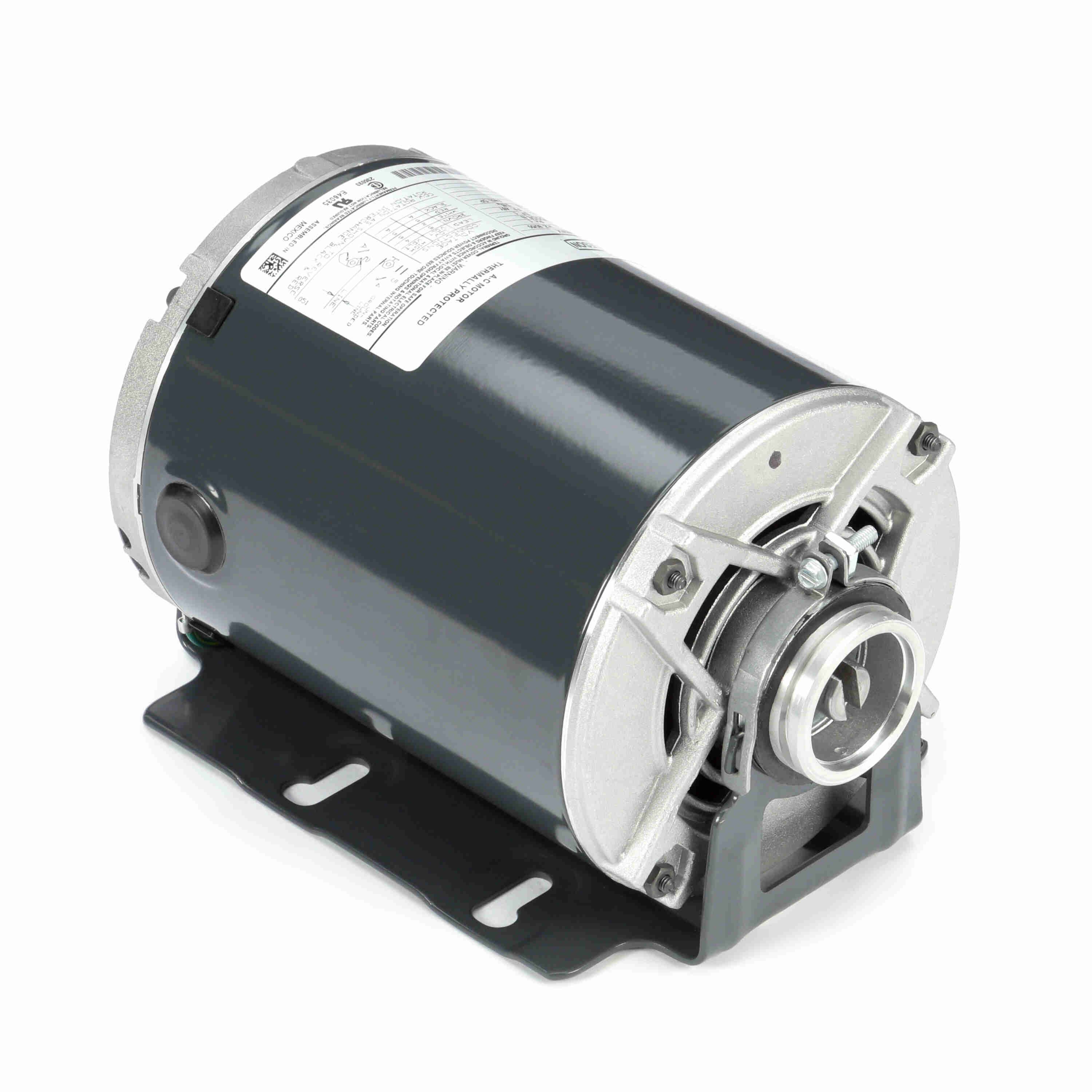

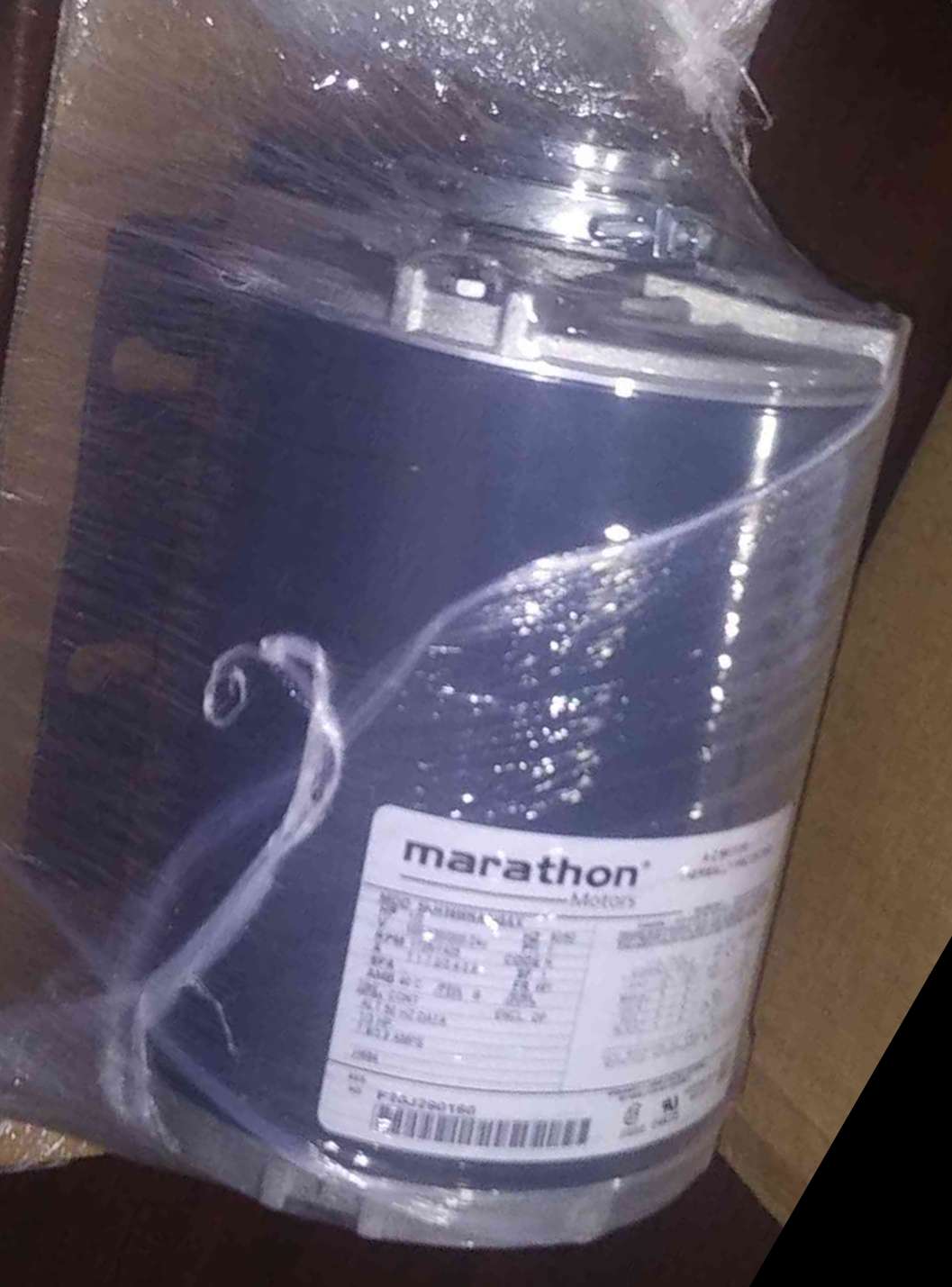

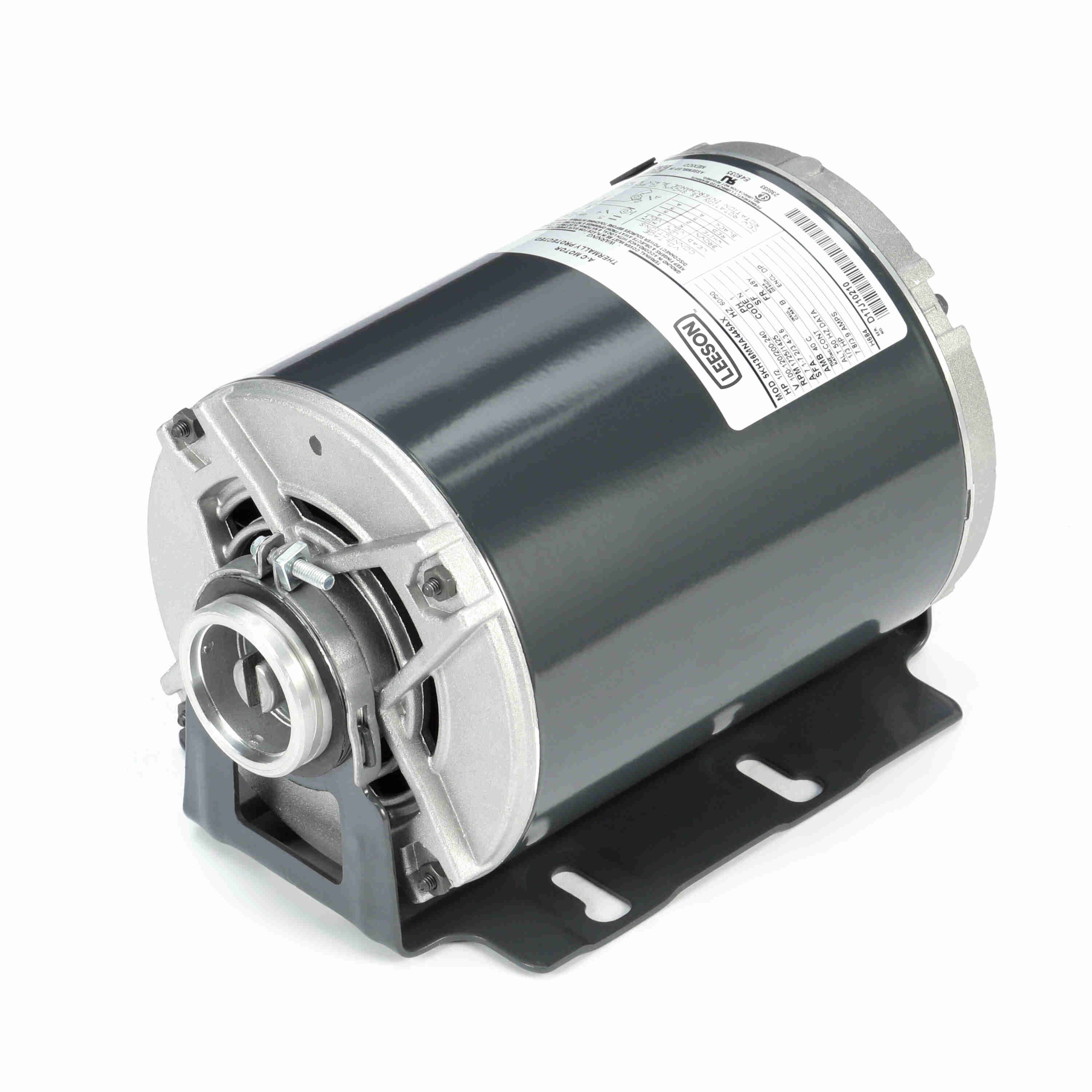

Marathon 5KH36MNA445X carbonator pump AC motor is used in vending machine pumps, power liquid transfer pumps and other hub-mounted pump applications. This motor is typically employed on the carbonated beverage and drink dispensers in bars and restaurants.
| Height (cm) | 19.05 |
|---|---|
| Length (cm) | 32.08 |
| Width (cm) | 17.63 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 8.55 |
In a single-phase motor, the electricity flows through a single conductor. On the other hand, a three-phase connection comprises three separate conductors for transmitting electricity.
A shaft is a cylindrical component extruding out from the housing and the motor. It transfers energy from the motor to end-use applications.
| Style | Model | Voltage | Hp | Shaft Dia. | Service Factor | Motor Thermal Protection | Full Load Amps | Rotation | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5KH37PNA479X | 115/230V AC | 3/4 hp | 5/8" | 1 | Automatic | 10.4/5.2A | Counter Clockwise | 9 1/8" | SGD 1,643.18 | |
| B | 5KH32GNB812X | 230V AC | 1/3 hp | 5/8" | 1 | Automatic | 2.7A | Clockwise/Counter Clockwise | 7 11/16" | SGD 482.59 | |
| C | 5KH32GNB813X | 208-240V AC | 1/4 hp | 5/8" | 1 | Auto | 2.3-2.4A | CW/CCW | 7 11/16" | SGD 458.45 | |
| D | 5KH32DN5587X | 115V AC | 1/4 hp | 1/2" | 1 | Automatic | 5A | Clockwise/Counter Clockwise | 7 11/16" | SGD 438.74 | |
| E | 5KH32FN5586X | 115V AC | 1/3 hp | 1/2" | 1.15 | Automatic | 5.6A | Clockwise/Counter Clockwise | 7 11/16" | SGD 450.31 | |
| F | 5KH33GNA444X | 115/230V AC | 1/3 hp | 5/8" | 1 | Automatic | 2.7-2.8/5.5-5.6A | Clockwise/Counter Clockwise | 7 15/16" | SGD 507.71 | RFQ
|
| G | 5KH36MNB637X | 115V AC | 1/2 hp | 5/8" | 1.2 | Automatic | 7.2A | Clockwise/Counter Clockwise | 8 3/4" | SGD 618.67 |
