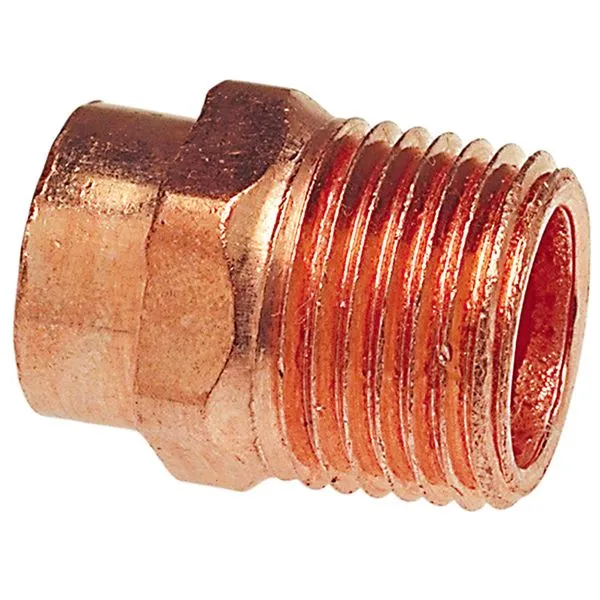

| Item | Adapter |
| Application | Air, Gases, Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Wrought Copper |
| Connection Type | C x MNPT |
| Fitting Material | Wrot Copper |
| Fitting Side A Connection Type | Cup |
| Fitting Side A Copper Tube Size | 3" |
| Fitting Side B Pipe Size | 3" |
| Max. Pressure | 317 psi |
| Outside Dia. | 3 1/8" x 3" |
| Size | 3" |
| Specific Pipe Fitting Shape | Adapter |
| Temp. Range | -20°F to +400°F |
| Fitting Side A Tube Outer Diameter | 3 1/8" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Tube Outer Diameter | 3 1/8" |
| Material Grade | C12200 |
| Maximum Operating Pressure | 317 psi @ 100°F |
| Maximum Operating Temperature | 400°F |
| Minimum Operating Temperature | 20°F |
| Resistance Properties | Dezincification Resistant |
| Specific Fitting Shape | Straight Adapter |
| Standards | ASME B16.22, ASTM B75 ALLOY C12200, ISO 9001, MSS SP-104, NFPA 99, PAMPHLET G4.1, THIRD-PARTY CERTIFIED 372, THIRD-PARTY CERTIFIED NSF/ANSI 61, UL 207 |
| Ship weight (kg) | 0.67 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 9.4 |
| HS code | 7412200090 |
| Country of Origin | US |
