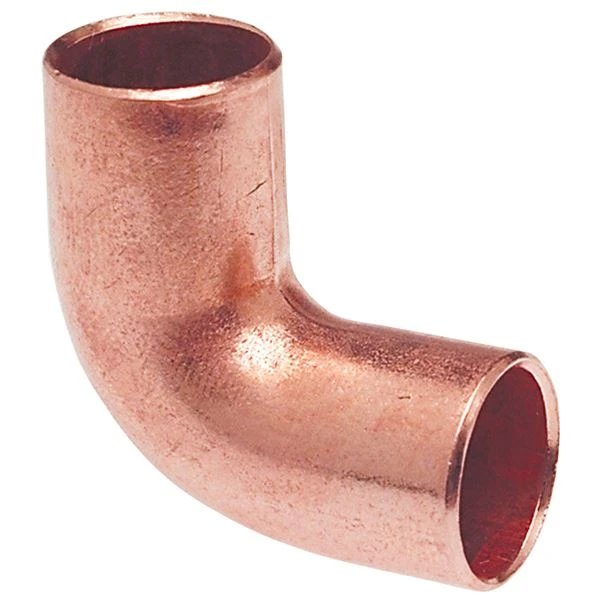

| Item | Close Rough Elbow, 90 Degrees |
| Application | Air, Gases, Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Wrought Copper |
| Fitting Material | Wrot Copper |
| Fitting Side A Copper Tube Size | 3/4" |
| Fitting Side A Tube Outer Dia. | 7/8" |
| Fitting Side B Copper Tube Size | 3/4" |
| Fitting Side B Tube Outer Dia. | 7/8" |
| Max. Pressure | 466 psi @ 200°F |
| Outside Dia. | 7/8" |
| Size | 3/4" |
| Temp. Range | -20°F to +400°F |
| Fitting Side A Connection Type | FTG |
| Fitting Side A Tube Outer Diameter | 7/8" |
| Fitting Side B Connection Type | FTG |
| Fitting Side B Tube Outer Diameter | 7/8" |
| Material Grade | C12200 |
| Maximum Operating Pressure | 466 psi @ 200°F |
| Maximum Operating Temperature | 400°F |
| Minimum Operating Temperature | 20°F |
| Resistance Properties | Dezincification Resistant |
| Specific Fitting Shape | 90° Close Rough Elbow |
| Standards | ASME B16.22, ASTM B75 ALLOY C12200, ISO 9001, MSS SP-104, NFPA 99, PAMPHLET G4.1, THIRD-PARTY CERTIFIED 372, THIRD-PARTY CERTIFIED NSF/ANSI 61 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 3.81 |
| HS code | 7412100000 |
| Country of Origin | US |
