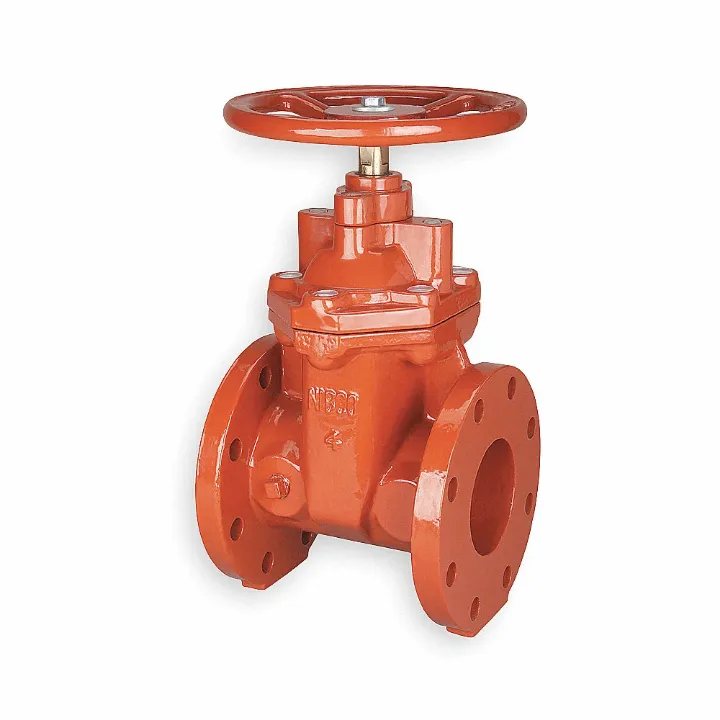

| Item | Gate Valve |
|---|---|
| Ansi Flange Class | Class 125 |
| Body Material | Ductile Iron |
| Bonnet Material | Ductile Iron |
| Bonnet Style | Bolted |
| Class | Class 125 |
| Connection Gender - Side 1 | Not Applicable |
| Connection Gender Side 2 | Not Applicable |
| Connection Size - Side 1 | 6" |
| Connection Size - Side 2 | 6" |
| Connection Type | Class 125 Flange |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| For Media | Water |
| Handle Dia. | 14 4/5" |
| Handle Diameter | 14.8" |
| Handle Height | 17 1/5" |
| Handle Length | Not Applicable |
| Handle Material | Ductile Iron |
| Handle Type | Wheel |
| Inlet To Outlet Length | 10 1/2" |
| Max. Fluid Temp. | 160°F |
|---|---|
| Max. Pressure (cwp) | 300 psi |
| Max. Pressure (steam) | 250 psi |
| Max. Water Pressure | 250 psi |
| Media Temperature Range | 33°F to 160°F |
| Nominal Valve Size | 6" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Number Of Flange Bolt Holes | 8 |
| Operating Temperature - Maximum | 160°F |
| Operating Temperature - Minimum | 33°F |
| Overall Length | 10.5" |
| Seal Material | EPDM |
| Seat Material | EPDM, Iron |
| Stem Material | Cast Iron |
| Stem Type | Non Rising |
| Top Of Handle To Inlet Center | 17.406" |
| Valve Class | Class 125 |
| Wedge Material | Ductile Iron |
| Wedge Style | Resilient |
| Standards | AWWA C509, C515, NSF 372 |
| Height (cm) | 38.1 |
|---|---|
| Length (cm) | 26.67 |
| Width (cm) | 38.1 |
| HS Code | 8481803055 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 57.15 |
| Style | Model | Top Of Handle To Inlet Center | Inlet To Outlet Length | Body Material | Seal Material | Seat Material | Connection Type | Max. Water Pressure | Max. Fluid Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | F619RW 2 | 10" | 7" | Ductile Iron | EPDM | EPDM, Iron | Class 125 Flange | 250 psi | 160°F | SGD 1759.29 | |
| A | F619RW 2 1/2 | 11.297" | 7 1/2" | Ductile Iron | EPDM | EPDM, Iron | Class 125 Flange | 250 psi | 160°F | SGD 1857.25 | |
| B | F619RW 3 | 12.593" | 8" | Ductile Iron | EPDM | EPDM, Iron | Class 125 Flange | 250 psi | 160°F | SGD 1850.80 | |
| C | F-619-RWS | 13 1/2" | 9" | Ductile Iron | EPDM | EPDM, Iron | Class 125 Flange | 250 psi | 160°F | SGD 2016.85 | |
| A | F619RW 8 | 20.797" | 11 1/2" | Ductile Iron | EPDM | EPDM, Iron | Class 125 Flange | 250 psi | 160°F | SGD 6507.77 |
