| Item | Shaft Collar |
|---|---|
| Bore Dia. | 0.312" |
| Bore Diameter | 5/16" |
| Bore Tolerance | +0.0005" to +0.002" |
| Bore Type | Round |
| Cap Screw Size | #4-40 |
| Clearance Dia. | 0.812" |
| Clearance Diameter | 0.84" |
| Collar Construction | 2-Piece |
| Collar Material | Carbon Steel |
| Collar Material Finish | Black Oxide |
| Collar Material Grade | 1215 |
| Collar Outside Diameter | 11/16" |
| Collar Style | Clamp |
| Collar Width | 9/32" |
| Dimension Type | Standard |
| Finish | Black Oxide |
| For Shaft Diameter | 5/16" |
| Grade | Grade 1215 |
| Included Screws | (2) Hex Socket Cap Screw |
| Inside Dia. | 0.312" |
|---|---|
| Material | Lead Free Steel |
| Maximum Operating Temperature | 350°F |
| Minimum Operating Temperature | -40°F |
| Number Of Pieces | 2 |
| Operating Temp. Range | -40°F to +350°F |
| Outside Dia. | 0.688" |
| Screw Location From Center | 0.25" |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Seating Torque | 15 lbs.-in. |
| Screw Size | #4-40 |
| Screw Thread Size | #4-40 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Type | Two Piece Clamp |
| Width | 0.281" |
| Width Tolerance | -0.01" to +0.003" |
| Withstand Temp. | 350°F |
| Height (cm) | 0.76 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 0.71 |
| HS Code | 8483608000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.009 |
| Style | Model | Collar Material | Outside Dia. | Bore Dia. | Screw Material | Collar Material Finish | Shaft Tolerance | Bore Tolerance | Included Screws | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | SP-30-A | Aluminum | 2 7/8" | 1 7/8" | Alloy Steel | Bright | -0.0005" to 0" | +0.0005" to +0.002" | (2) Hex Socket Cap Screw | SGD 132.81 | |
| B | SP-30-F | Carbon Steel | 2 7/8" | 1 7/8" | Alloy Steel | Black Oxide | -0.0005" to 0" | +0.0005" to +0.002" | (2) Hex Socket Cap Screw | SGD 101.40 | |

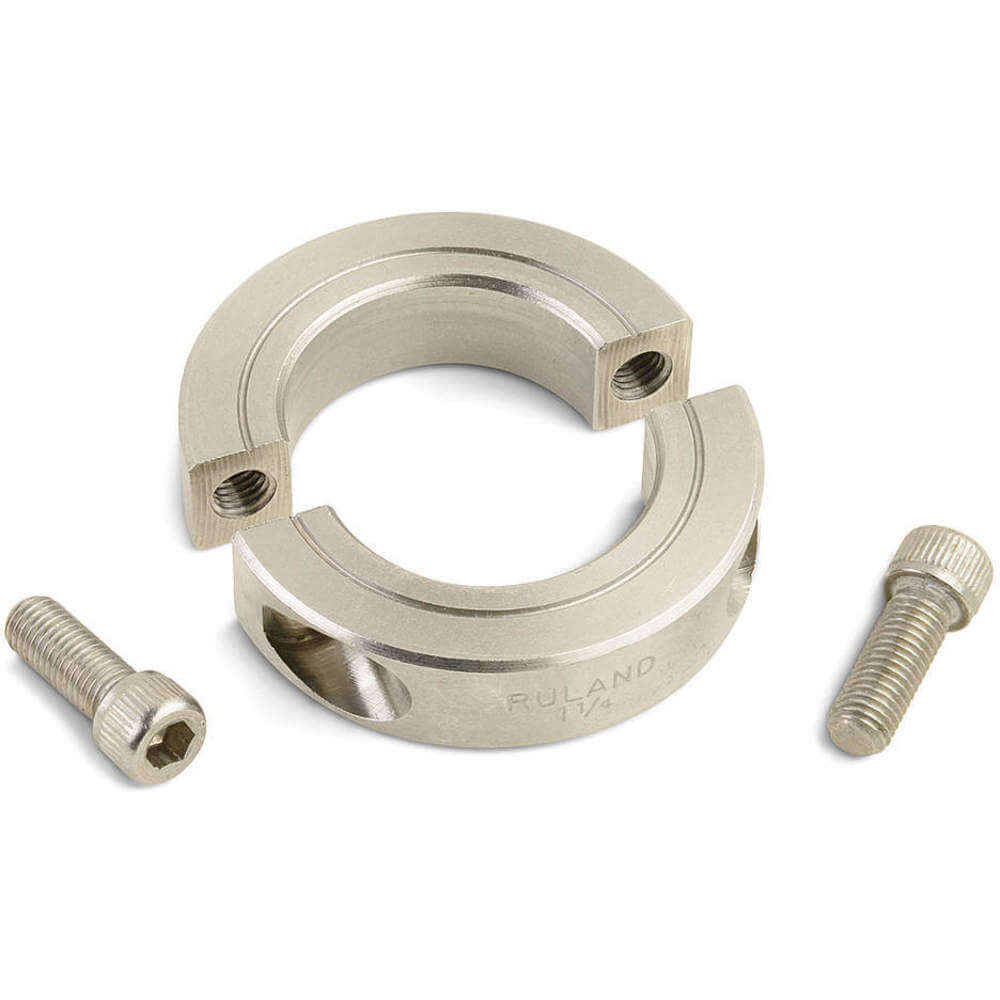

| C | SP-30-SS | Stainless Steel | 2 7/8" | 1 7/8" | Stainless Steel | Bright | -0.0005" to 0" | +0.0005" to +0.002" | (2) Hex Socket Cap Screw | SGD 374.01 | |

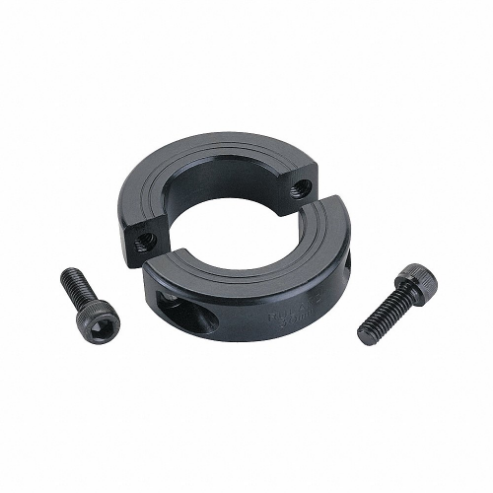

| B | SP-42-F | Carbon Steel | 3 7/8" | - | Alloy Steel | Black Oxide | -0.0005" to 0" | +0.0005" to +0.002" | (2) Hex Socket Cap Screw | SGD 225.31 | |
| C | SP-43-SS | Stainless Steel | 4" | 2.688" | Stainless Steel | Bright | -0.0005" to 0" | +0.0005" to +0.002" | (2) Hex Socket Cap Screw | SGD 713.51 | |
| A | SP-44-A | Aluminum | 4" | - | Alloy Steel | Bright | -0.0005" to 0" | +0.0005" to +0.002" | (2) Hex Socket Cap Screw | SGD 280.96 | |
| B | SP-44-F | Carbon Steel | 4" | - | Alloy Steel | Black Oxide | -0.0005" to 0" | +0.0005" to +0.002" | (2) Hex Socket Cap Screw | SGD 234.30 |
