STARRETT 120A-6 64514 Dial Caliper, Lapped Jaws, Stainless Steel, 6 Inch Range, White
Item: AC4GXU
Model: 120A-6
Cross Ref: 2ZUE7 / 64514
17 In Stock
Ships within 2 days via
5% off
SGD846.60/unit
(inc. GST)
Request Quote
FREE delivery on orders over SGD200.00
Specifications
| Item | Dial Caliper |
|---|---|
| Accuracy | -0.001" to +0.001" |
| Bar Graduations | 0.1" |
| Calibration Certificate | No |
| Caliper Dial Color | White |
| Caliper Grouping | Dial Caliper |
| Caliper Material | Stainless Steel |
| Case Type | Case |
| Depth Rod Shape | Rectangular |
| Dial Color | White |
| Dial Diameter (in) | 1 1/2" |
| Dial Graduation | 0.001" |
| Dimension Type | Inch |
| Finish | Polish |
| Graduations | 0.001" |
| Includes | Fitted Case |
| Includes Bezel Lock | Yes |
| Includes Case | Yes |
| Includes Locking Nut | Yes |
| Inside Jaw Depth (in) | 5/8" |
|---|---|
| Jaw Actuation Type | Thumb Wheel |
| Jaw Depth | 1 1/2" |
| Jaw Depth Upper Jaw | 5/8" |
| Jaw Material | Stainless Steel |
| Jaw Shape | Standard Blade Nibs For Inside/Outside Measurement |
| Long Form Calibration Certificate | No |
| Material | Hardened Stainless Steel |
| Max. Measurement | 6" |
| Measurements | 4-Way |
| Measures Depth | Yes |
| Measures Inside Dimension | Yes |
| Measures Outside Dimension | Yes |
| Measures Step | Yes |
| Minimum Measurement - Inch | 0" |
| Outside Jaw Depth (in) | 1 1/2" |
| Range | 0" to 6" |
| Range Per Revolution | 0.1" |
| standard | US FEDERAL SPECIFICATIONS |
Product Details

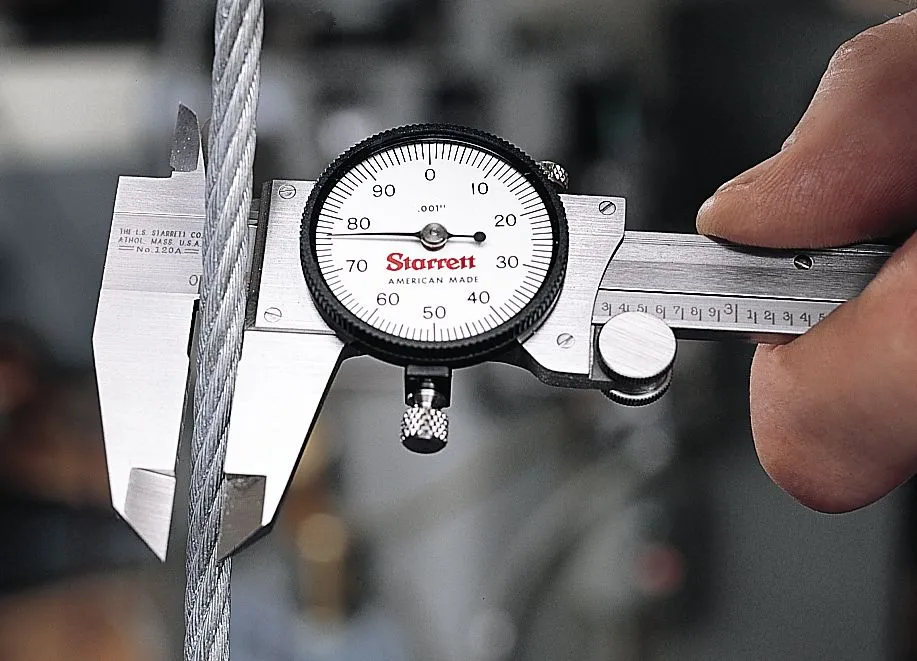

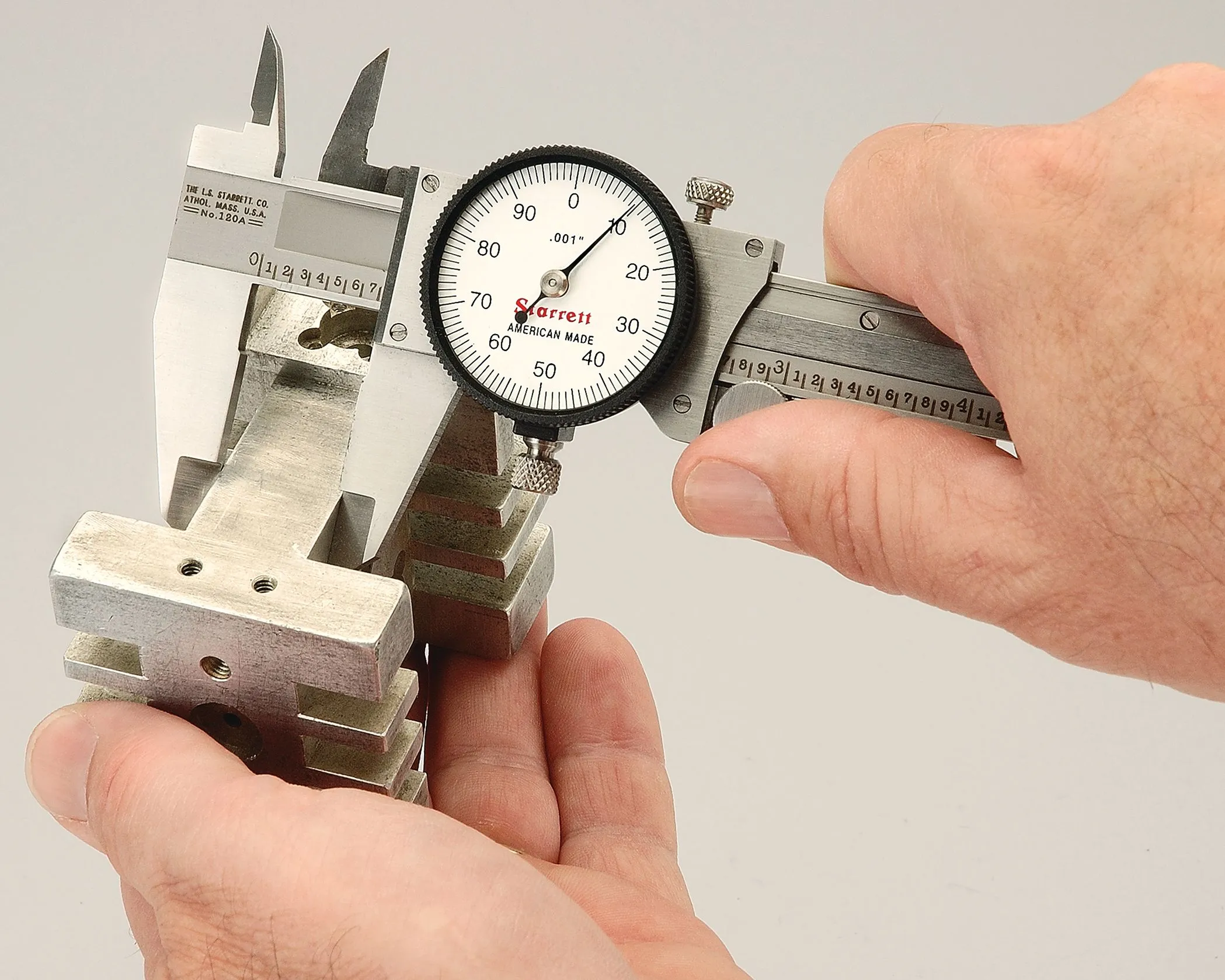

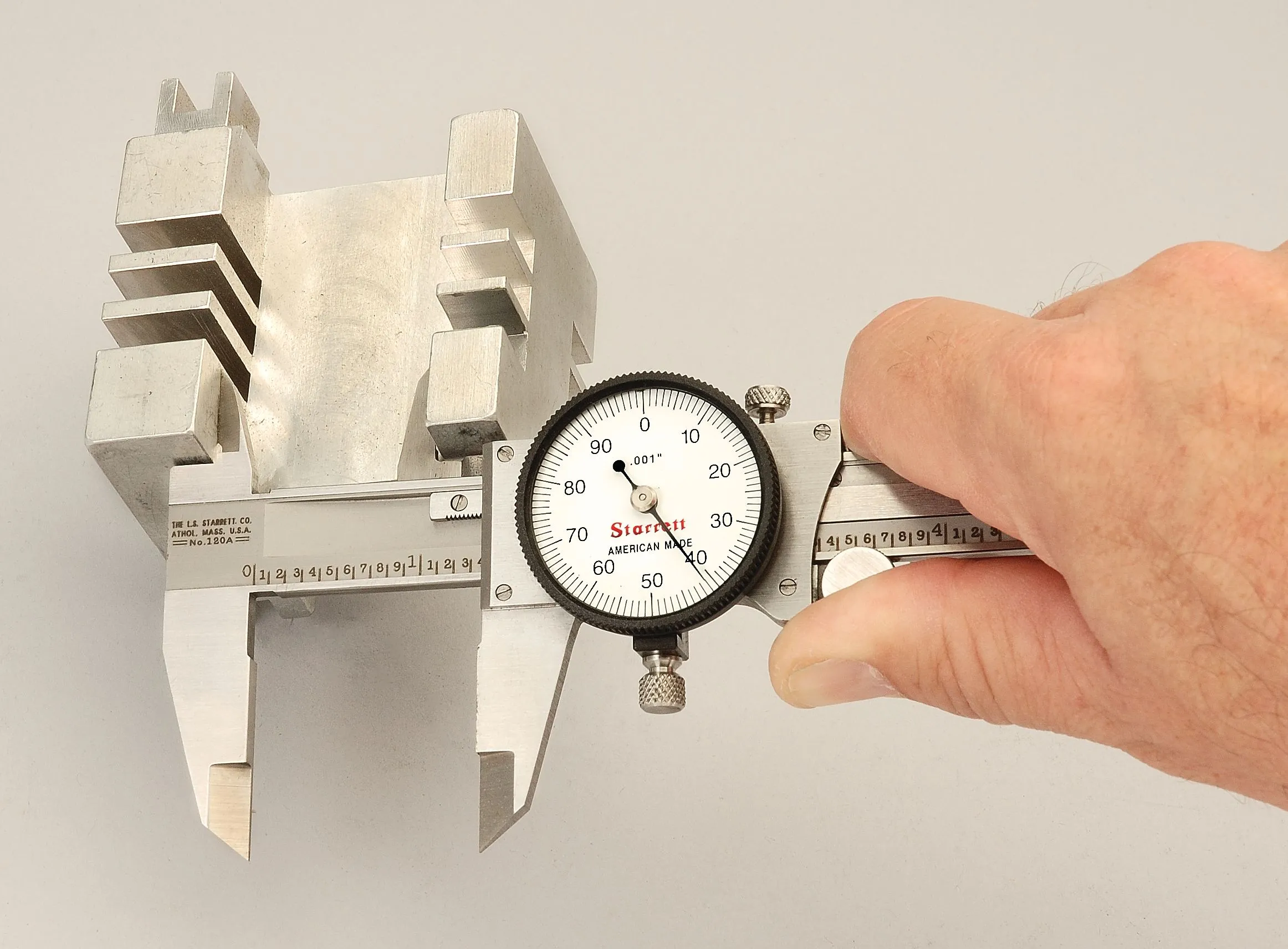

- Precision measuring device designed to measure the inside and outside dimensions, depth and steps
- Durable stainless-steel construction with parallel jaws and a round dial clock
- Provides a measuring range of 0 - 6 inches with graduations at 0.001-inch and features a jaw depth of 1-1/2 inch

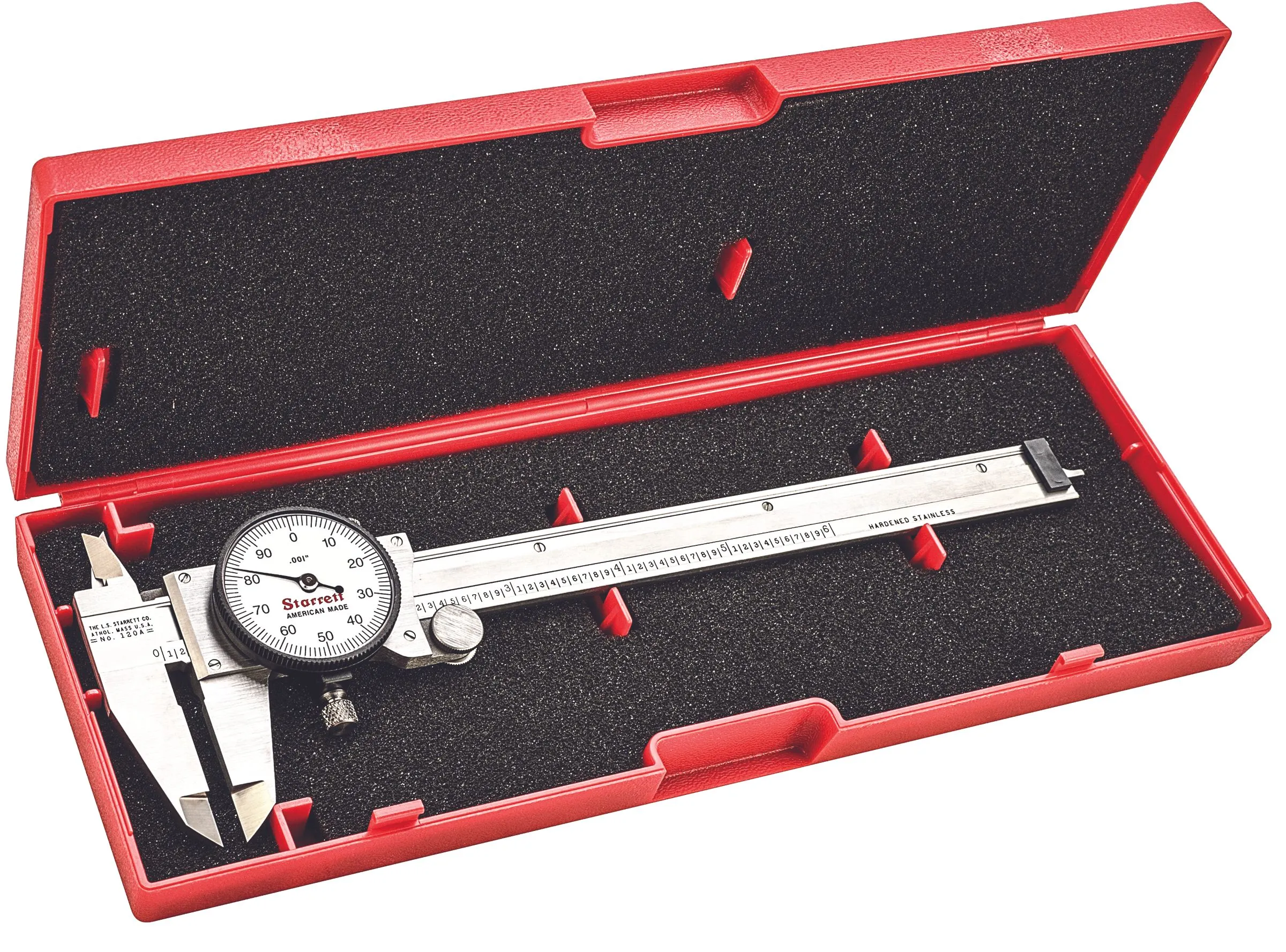

- Comes included with a fitted case
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 24.38 |
| Width | 8.64 |
| HS Code | 9017304000 |
|---|---|
| Country Of Origin | US |
| Weight | 0.292500 |
Related Products
| Style | Model | Range | Dimension Type | Dial Color | Accuracy | Dial Graduation | Material | Jaw Depth | Long Form Calibration Certificate | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 120AM-150 | 0 mm to 150 mm | Metric | Yellow | -0.03 mm to +0.03 mm | 0.02 mm | Stainless Steel | 1 1/2" | No | SGD 835.26 | |
| B | B120A-6 | 0" to 6" | Imperial | Black | - | - | Hardened Stainless Steel | 1 1/2" | - | SGD 784.84 | |
| C | 120A-6 W/SLC | 0" to 6" | Inch | White | -0.001" to +0.001" | 0.001" | Hardened Stainless Steel | 1 1/2" | No | SGD 825.68 |
