STARRETT 25-441J 53295 Dial Indicator, 0.1 Inch Range, 0-100 Dial Reading
Item: AC4GYV
Model: 25-441J
Cross Ref: 2ZUH9 / 53295
15 In Stock
Ships within 2 days via
5% off
SGD528.28/unit
(inc. GST)
Request Quote
FREE delivery on orders over SGD200
Specifications
| Item | Dial Indicator |
|---|---|
| Accuracy | -0.001" to +0.001" |
| Agd No. | AGD 2 |
| Back Type | Lug On Center |
| Bearing Type | Jeweled |
| Bearings | Jeweled |
| Bezel | Adjustable |
| Bezel Lock | Yes |
| Bezel Type | Sharp |
| Calibration Certificate | Not Included |
| Case Finish | No Glare Satin Finish |
| Color | White |
| Construction | Rugged And Simple Unit |
| Contact Point Dia. | 1/4" |
| Contact Point Shape | Radius |
| Contact Point Style | Ball |
| Design | Universally Fitting |
| Dial Color | White |
| Dial Finish | Non-Reflecting White Eggshell |
| Dial Reading | 0-100 |
| Dial Size | 2 1/4" |
| Dimensions Type | Inch |
| Features | Shockless, Hardened Steel Gear Train |
| Finish | Satin Chrome |
|---|---|
| Gear Material | Hardened Stainless Steel |
| Graduations | 0.001" |
| Included | No Certification Included |
| Included Case | No |
| Indicator Group | AGD 2 |
| Long Form Calibration Certificate | No |
| Max. Measurement-inch | 1" |
| Mechanism | Special Non-Shock |
| Min. Measurement-inch | 0" |
| No. Of Indicators | 1 |
| Non Magnetic | No |
| Operation Type | Plunger |
| Pinion Material | Hardened Stainless Steel |
| Rack Material | Hardened Stainless Steel |
| Range | 0" to 1" |
| Reading | Continuous |
| Series | 25 Series |
| Shock Resistant | Yes |
| Spindle Material | Hardened Stainless Steel |
| Stem Dia. | 3/8" |
| Stem Material | Hardened Stainless Steel |
| Stem Thread Size | #4-48 |
Product Details

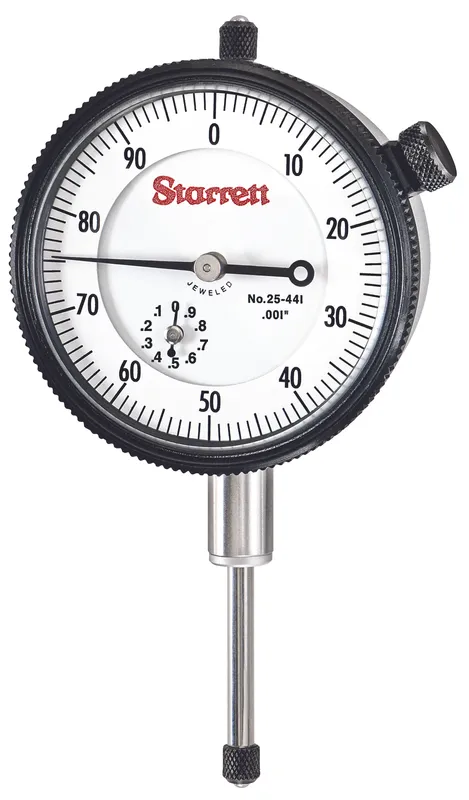

- Starrett 25-441J is a hardened-steel dial indicator that measures distances as small as 0.001 inches. It has a dial reading of 0 to 100 and a total range of 1 inch.
- This Starrett dial indicator is furnished with an unbreakable crystal dial face with a non-reflecting white eggshell finish for easy readability and features adjustable bezel serrations for positive grip.
Shipping Information
| Height (cm) | 6.6 |
|---|---|
| Length (cm) | 16 |
| Width (cm) | 10.41 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | BR |
| Weight (kg) | 0.2700 |
Related Products
| Style | Model | dial reading | dial color | bearing type | stem dia. | dial size | range per revolution | stem thread size | range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 25-211J | 0-10 | White | Jeweled | 0.375" | 2.25" | 0.01" | #4-48 | 0" to 0.025" | SGD855.55 | |
| B | 25-341/5J | 0-50-0 | White | Jeweled | 0.375" | 2 1/4" | 0.1" | #4-48 | 0" to 0.5" | SGD616.09 | |
| C | 25-441/5J | 0-100 | White | Jeweled | 0.375" | 2 1/4" | 0.1" | #4-48 | 0" to 0.5" | SGD619.52 | |
| D | 25-481J | 0-100 | Yellow | Jeweled | 3/8" | 2 1/4" | 1 mm | #4-48 | 0 mm to 10 mm | SGD720.66 | |
| E | 25-881J | 0-100 | Yellow | Jeweled | 0.375" | 2 1/4" | 1 mm | #4-48 | 0 mm to 25 mm | SGD724.46 | |
| F | 25-441J W/SLC | 0-100 | White | Jeweled | 0.375" | 2 1/4" | 0.1" | #4-48 | 0" to 1" | SGD643.39 | |
| G | 25-141J | 0-50-0 | White | Jeweled | 0.375" | 2 1/4" | 0.1" | #4-48 | 0" to 0.25" | SGD621.16 |
