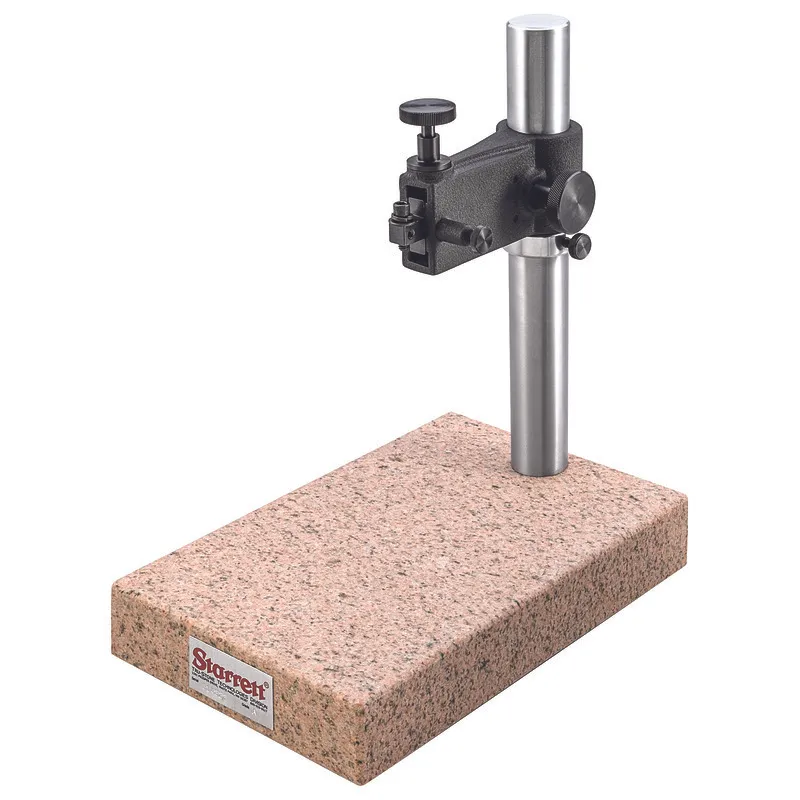

STARRETT 653G 56646 Comparator With Granite Base 8 x 12 x 2 In
Item: AC4GZU
Model: 653G
Cross Ref: 2ZUL8 / 56646
Check Availability
In Stock
Get it by Monday, Oct 19
5% off
SGD 2,499.93/unit
(inc. GST)
Request Quote
Delivery
Specifications
| Item | Comparator w/Granite Base |
|---|---|
| Anvil Shape | Square |
| Anvil Size | 8" x 12" |
| Anvil Style | Smooth |
| Base Depth | 12" |
| Base Height | 2" |
| Base Length | 12" |
| Base Material | Granite |
| Base Size | 8" x 12" x 2" |
| Base Width | 8" |
| Construction | Granite |
| Features | On/Off Switch, Sliding Ring W/Locking Screw, Throat Depth 5 In, Vertical Capacity 9 1/4 In |
|---|---|
| Fine Adjustment Position | Fine Adjust Top (FAT) |
| Finish | Unfinished |
| Overall Length | 9 1/4" |
| Plate Tolerance | 0.0001" |
| Post Dia. | 1 1/2" |
| Snug | Clamping |
| Vertical Travel | 9 1/4" |
| With Feet | Yes |
| With Swivel Post | No |
Product Details

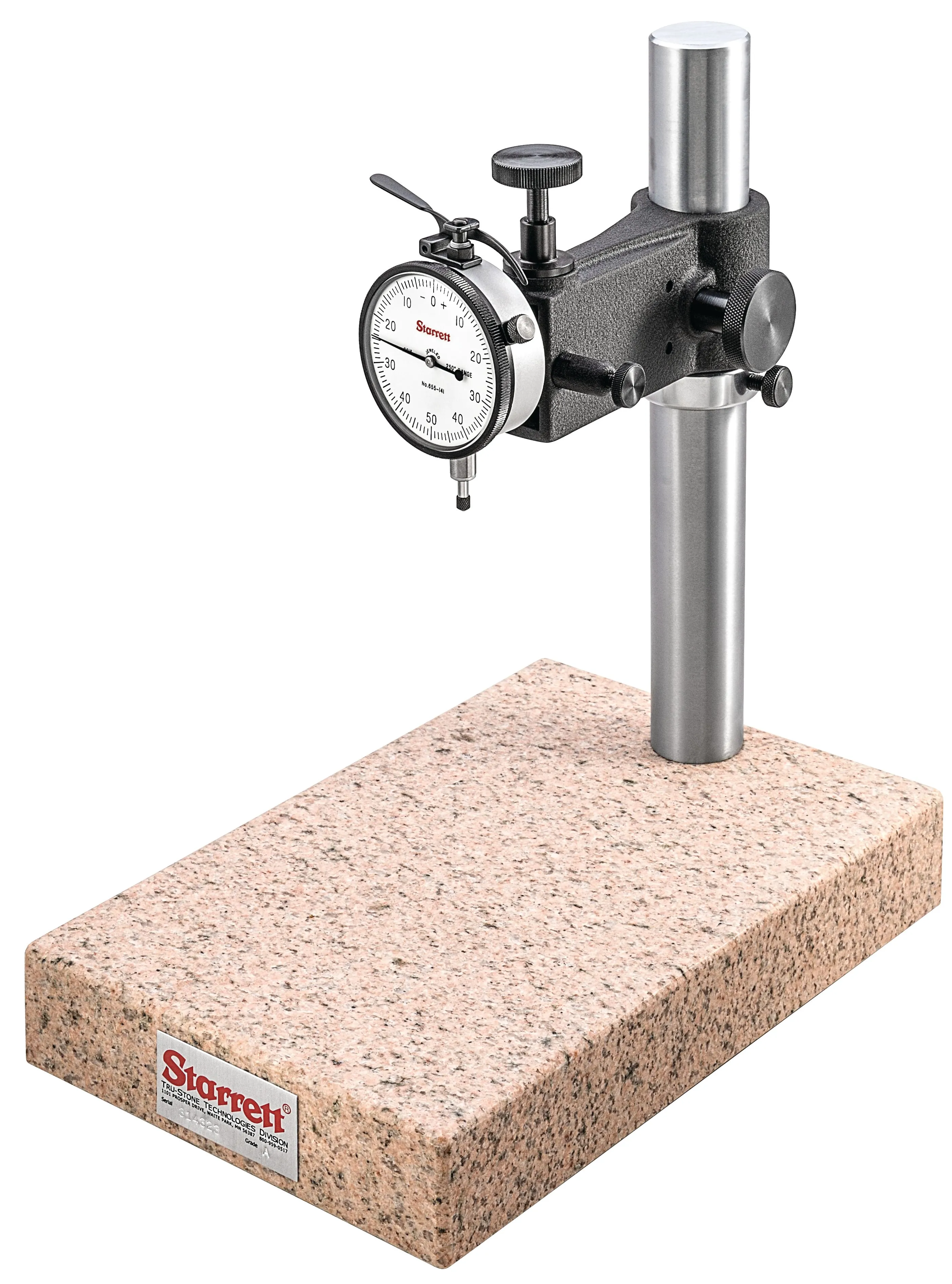

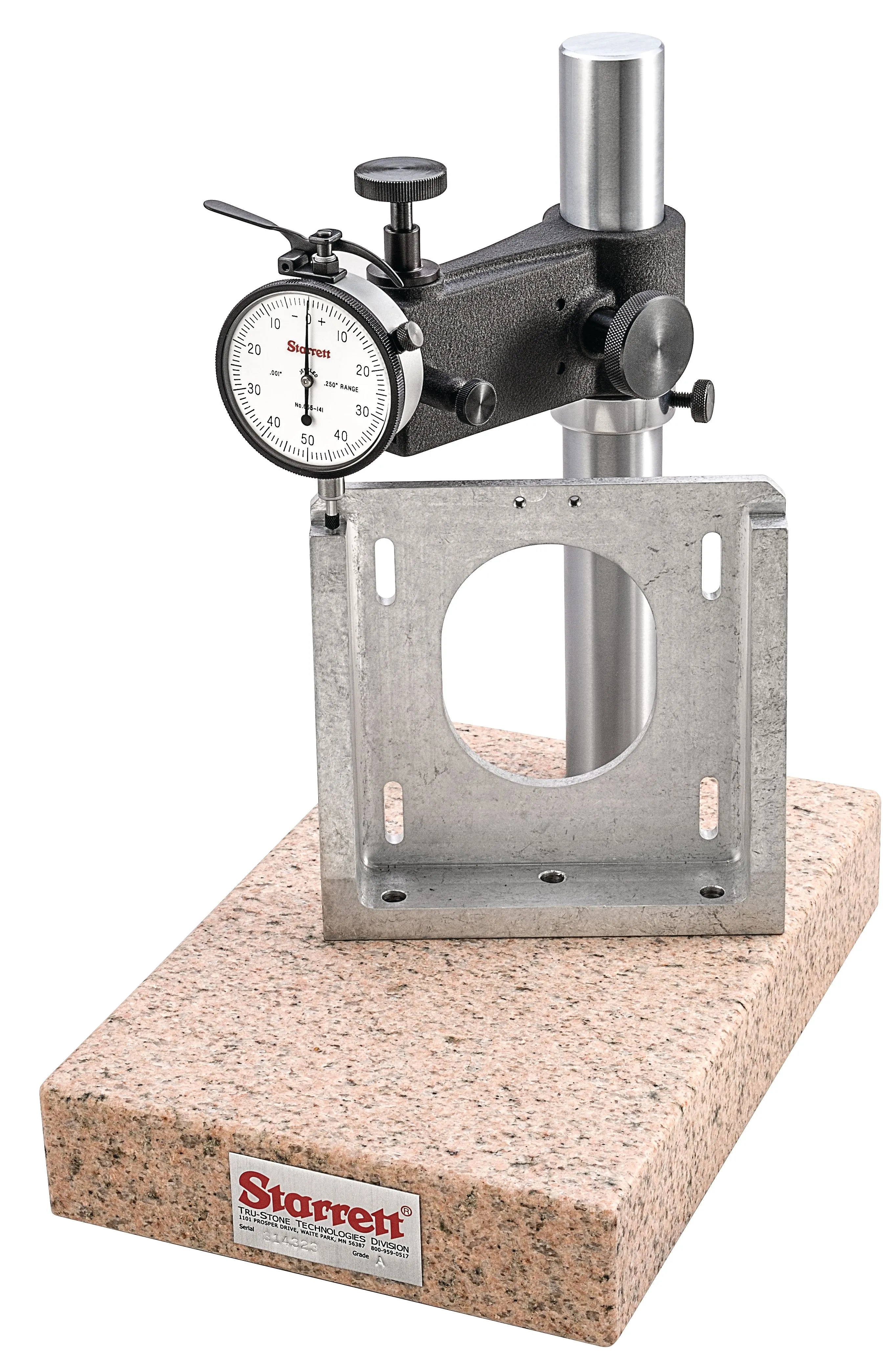

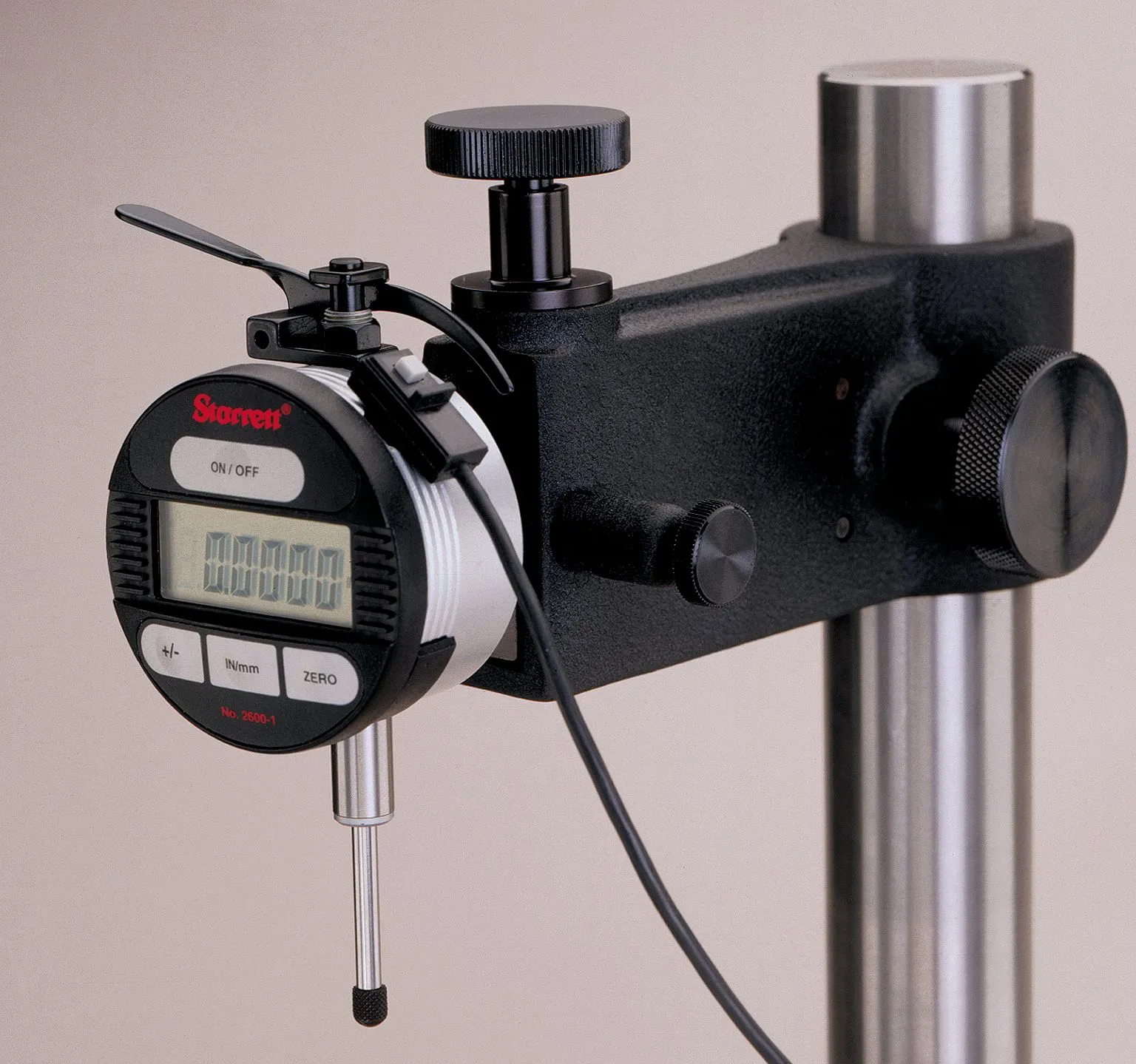

- Starrett 653G is an adjustable bench-type comparator stand with a granite base designed for in-process and final inspection work. It includes a fine adjustment on the beam for final indicator setting.
- This Starrett comparator features a sliding ring that allows you to swing the indicator to either side and also prevents the accidental dropping of the beam.
Shipping Information
| Height (cm) | 41.4 |
|---|---|
| Length (cm) | 36.83 |
| Width (cm) | 25.4 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 13.9500 |
