| Item | Dial Test Indicator |
|---|---|
| Accuracy | -0.001" to +0.001" |
| Bearing Type | Jeweled |
| Contact Point Dia. | 3/25" |
| Contact Point Material | Steel |
| Contact Point Shape | Ball |
| Dial Color | White, Yellow |
| Dial Reading | 0-15-0 |
| Dial Size | 1" |
| Dimensions Type | Inch |
| Graduations | 0.001" |

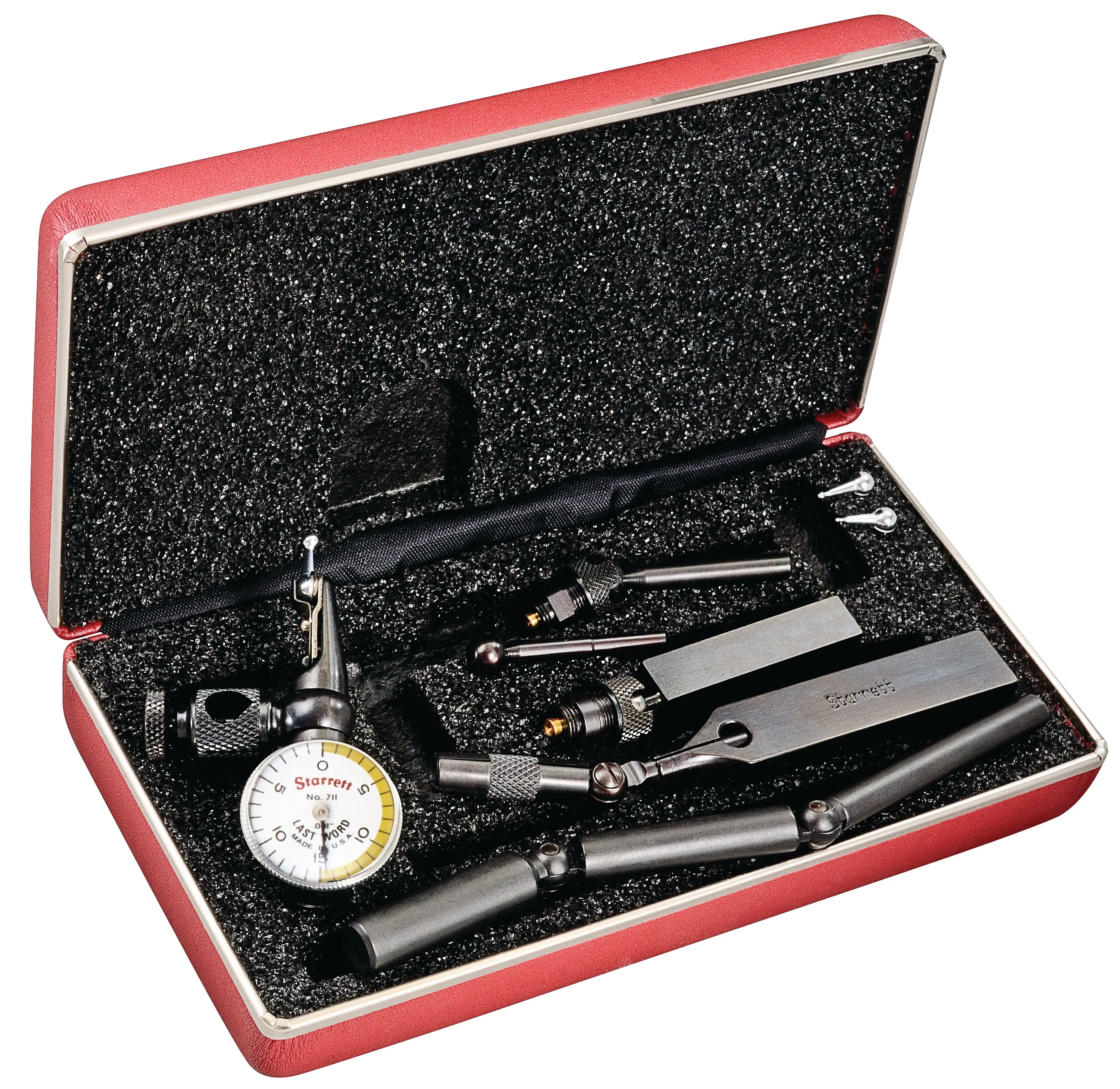

| Included | Indicator Complete With All Attachments |
| Included Case | Yes |
| Included Dovetail Mount Attachments | No |
| Indicator Style | Horizontal |
|---|---|
| Long Form Calibration Certificate | No |
| Max. Measurement-inch | 0.03" |
| Min. Measurement-inch | 0" |
| Mounting Style | Dovetail |
| No. Of Indicators | 1 |
| Non Magnetic Tip | No |
| Operation Type | Lever Style |
| Range | 0" to 0.03" |
| Range Per Revolution | 0.03" |
| Reading | Balanced |
| Stylus Length | 0.15625", 4 mm |
| Test Indicator Style | Swivel Head |
| Height (cm) | 3.81 |
|---|---|
| Length (cm) | 18.8 |
| Width (cm) | 9.65 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.405 |
| Style | Model | Range | Dial Reading | Graduations | Range Per Revolution | Dial Size | Contact Point Dia. | Indicator Style | Min. Measurement | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 711FSZ | 0" to 0.03" | 0-15-0 | 0.001" | 0.03" | 1" | 0.12" | Horizontal | - | SGD 709.97 | |
| B | 711LCSZ | 0" to 0.03" | 0-15-0 | 0.0005" | 0.03" | 1" | 3/25" | Horizontal | - | SGD 1,200.65 | |
| C | 711HSAZ | 0" to 0.03" | 0-15-0 | 0.0005" | 0.03" | 1 1/2" | 0.12" | Vertical | - | SGD 907.27 | |
| D | 711FSAZ | - | - | - | - | - | - | - | - | SGD 784.07 | |
| E | 711EA | - | - | - | - | - | - | - | - | SGD 58.26 | |
| F | 711HSZ | 0" to 0.03" | 0 to 15 | 0.0005" | 0.03" | 1" | 3/25" | - | 0.0" | SGD 786.90 | |
| G | 711MGCSZ | 0 mm to 0.7 mm | 0 to 35 | 0.01 mm | 0.0275" | 1" | - | - | 0 mm | SGD 1,155.59 |
