| Item | Dial Indicator |
|---|---|
| Accuracy | -0.001" to +0.001" |
| Agd Number | Agd 1 |
| Back Type | Lug On Center |
| Bearing Type | Jeweled |
| Bezel | Lock |
| Bezel Lock | Yes |
| Bezel Type | Adjustable |
| Calibration Certificate | No |
| Color | White |
| Contact Point Dia. | 1/4" |
| Contact Point Shape | Radius |
| Contact Point Style | Radius |
| Dial Color | White |
| Dial Reading | 0-100 |
| Dial Size | 1.69" |
| Dimension Type | Inch |
| Finish | Satin Chrome |
| Graduations | 0.001" |
|---|---|
| Includes Case | No |
| Long Form Calibration Certificate | No |
| Maximum Measurement - Inch | 1/4" |
| Minimum Measurement - Inch | 0" |
| Non-magnetic | No |
| Nonmagnetic Side | No |
| Number Of Indicators | 1 |
| Operation Type | Plunger |
| Range | 0" to 1/4" |
| Range Per Revolution | 0.1" |
| Reading | Continuous |
| Resistance | Shock Resistant |
| Shock Resistant | Yes |
| Standards | AGD |
| Stem Dia. | 0.375" |
| Stem Thread Size | #4-48 |

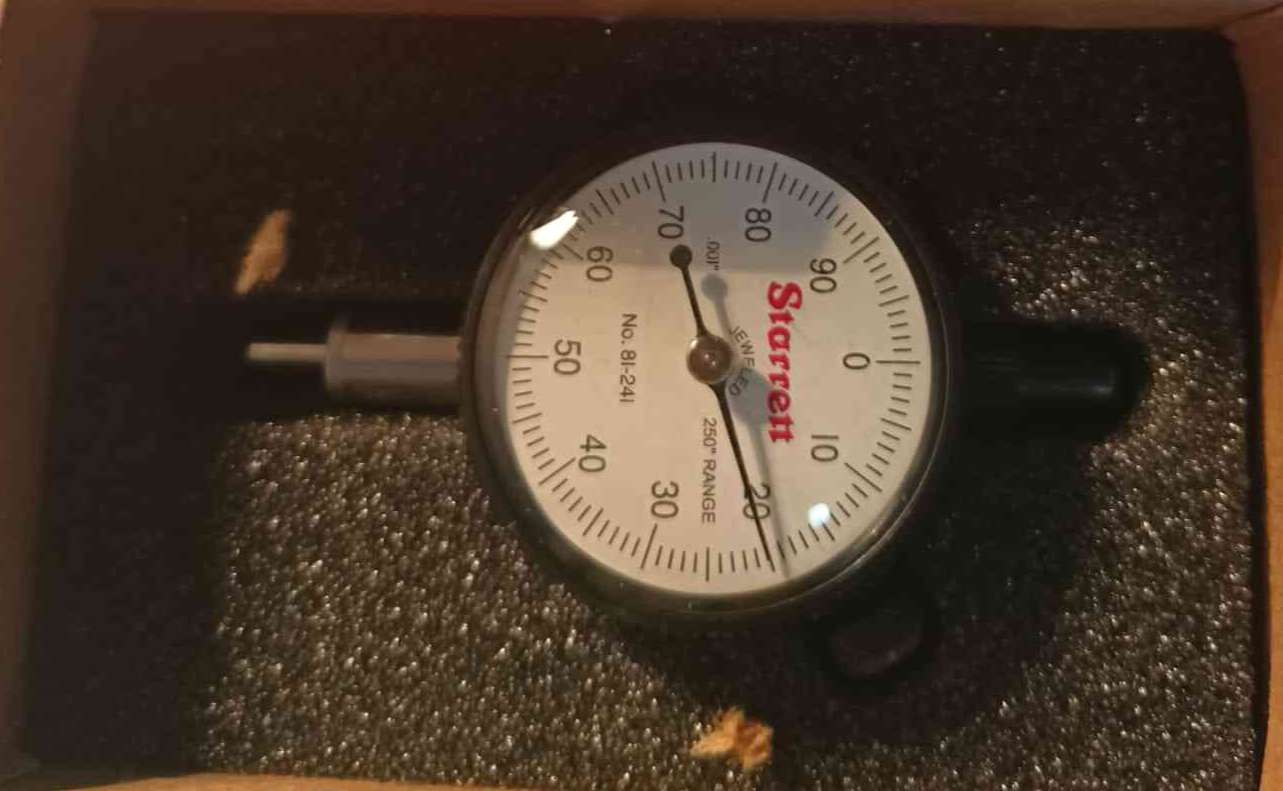

Starrett 81-241J dial indicator is a precision measurement tool used to gauge small variations in dimensions and positions of mechanical components with accuracy. This dial indicator is ideal for applications that include machine setup, alignment and quality control in the automotive, aerospace and machining industries. The indicator's precision dial provides real-time readings, aiding in detecting minute deviations and ensuring parts adhere to specifications.
| Height (cm) | 6.1 |
|---|---|
| Length (cm) | 11.18 |
| Width (cm) | 7.11 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.1575 |
The continuous dial's markings correspond to 0.001-inch graduations. As the plunger moves, the dial rotates and the pointer indicates the measurement.
Regularly cleaning the jewelled bearing with a gentle solvent and keeping it free from debris helps maintain its smooth movement.
| Style | Model | Range | Dimension Type | Accuracy | Reading | Dial Reading | Graduations | Range Per Revolution | Stem Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 81-141J | 0" to 1/4" | Inch | -0.001" to +0.001" | Balanced | 0-50-0 | 0.001" | 0.1" | 0.375" | SGD 573.48 | |
| B | 81-181J | 0 mm to 2.5 mm | Metric | -0.01 mm to +0.01 mm | Balanced | 0 to 50 | 0.01 mm | 1 mm | 3/8" | SGD 579.87 | |
| C | 81-136J | 0.075" | Inch | -0.0005" to +0.0005" | Balanced | 0 to 15 | 0.0005" | 0.03" | 3/8" | SGD 680.31 | |
| D | 81-131J | 0" to 1/8" | Inch | -0.0005" to +0.0005" | Balanced | 0 to 25 | 0.0005" | 0.05" | 3/8" | SGD 605.12 | |

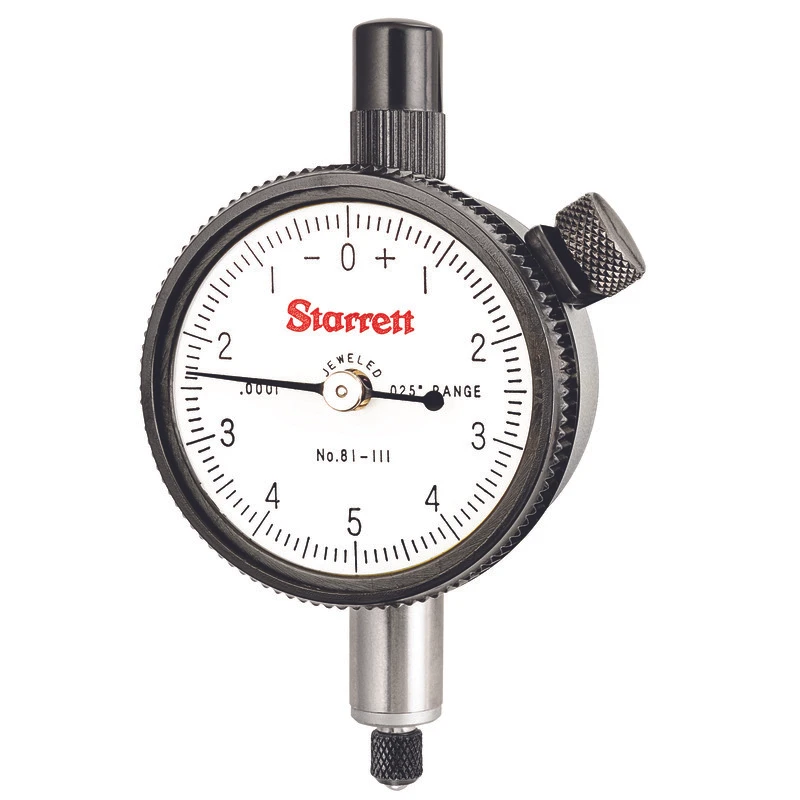

| E | 81-111J | - | - | - | - | - | - | - | - | - | RFQ
|

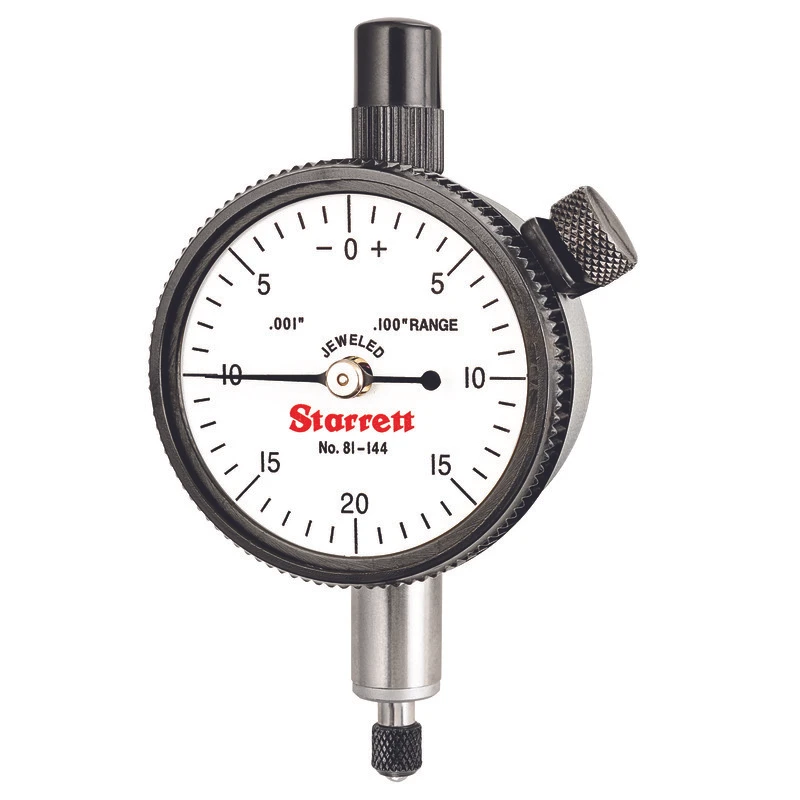

| F | 81-144J | - | - | - | - | - | - | - | - | - | RFQ
|

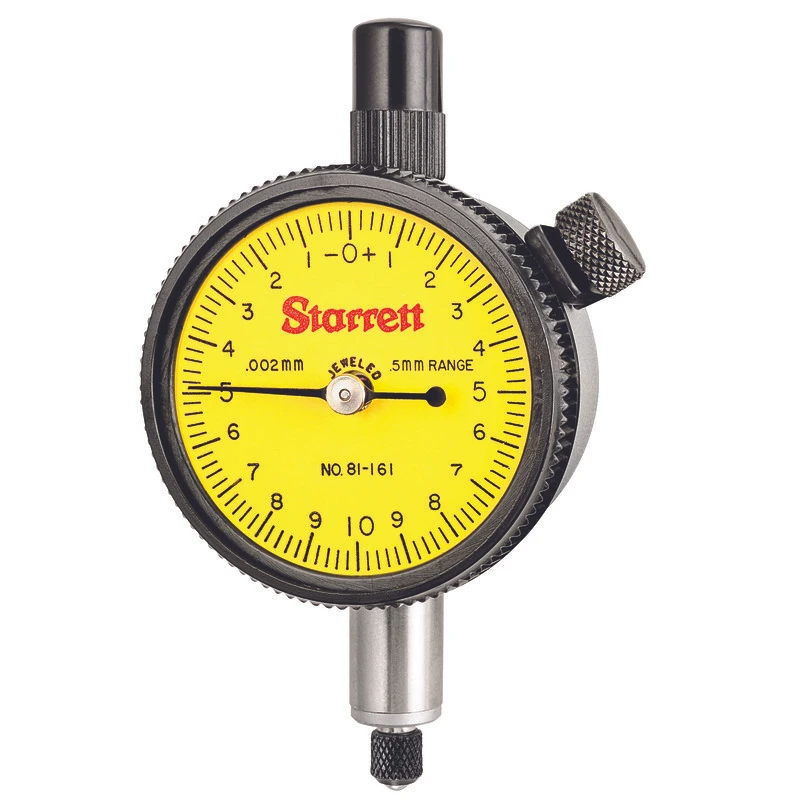

| G | 81-161J | - | - | - | - | - | - | - | - | - | RFQ
|
