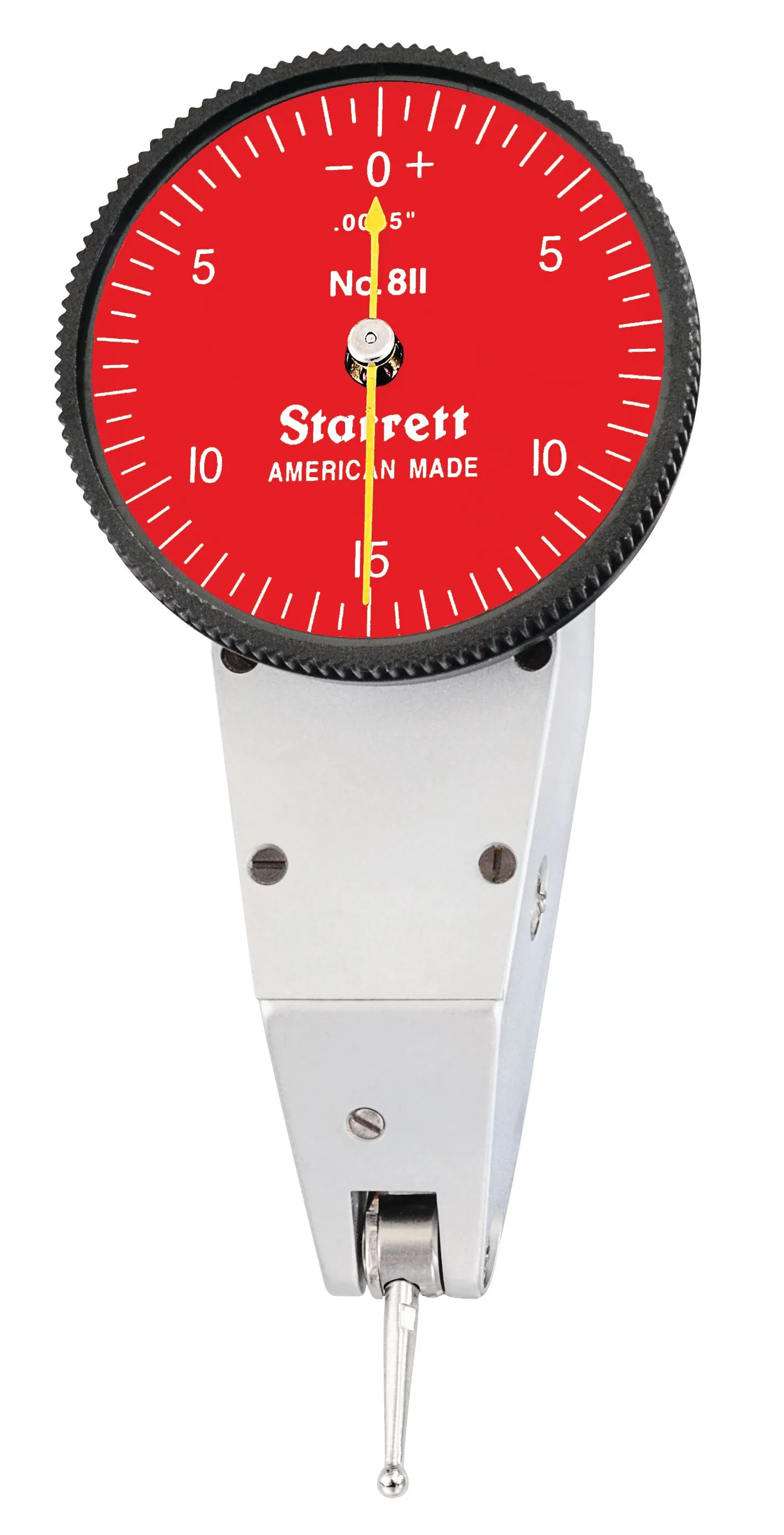

STARRETT 811-5CZ 57079 Test Indicator 1.375 Diameter 0.0005 In
Item: AC4GZE
Model: 811-5CZ
Cross Ref: 2ZUJ9 / 57079
Check Availability
In Stock
Get it by Monday, Oct 26
SGD 39.99 Flat Shipping + GST SGD 39.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates
5% off
SGD 1,866.45/unit
(inc. GST)
Request Quote
Delivery
Specifications
| Item | Dial Test Indicator |
|---|---|
| Accuracy | -0.0005" to +0.0005" |
| Bearing Type | Jeweled |
| Contact Point Dia. | 5/64" |
| Contact Point Length | 5/8" |
| Contact Point Material | Steel |
| Contact Point Shape | Ball |
| Dial Color | White |
| Dial Reading | 0-15-0 |
| Dial Size | 1.38" |
| Dimensions Type | Inch |
| Graduations | 0.0005" |
| Included | Dovetail Body Clamp, Snug And Rod Unit, Swivel Post Snug With Dovetail Indicator Clamp, Tool Post Holder |
| Included Case | Yes |
| Included Dovetail Mount Attachments | Yes |
| Indicator Style | Swivel Head |
|---|---|
| Long Form Calibration Certificate | No |
| Max. Measurement-inch | 0.03" |
| Min. Measurement-inch | 0" |
| Mounting Style | Dovetail |
| No. Of Indicators | 1 |
| Non Magnetic Tip | No |
| Operation Type | Lever Style |
| Range | 0" to 0.03" |
| Range Per Revolution | 0.03" |
| Reading | Balanced |
| Stylus Length | 0.625", 16" |
| Swivel Angle | 90° |
| Test Indicator Style | Swivel Head |
Product Details
- Starrett 811-5CZ is a dial test indicator with a swivel head that allows horizontal and vertical positioning at any angle between 0 and 90 degrees.
- It is used to analyse surface roughness, and align and inspect workpieces in any machine tool.
- It features a contact point that reverses automatically and fits replaceable contacts that are frictionally adjustable.
- This Starrett dial test indicator comes with a dovetail body clamp, tool post holder, swivel post snug with dovetail indicator clamp, and snug and rod unit.
Shipping Information
| Height (cm) | 5.84 |
|---|---|
| Length (cm) | 19.56 |
| Width (cm) | 13.72 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.7425 |
Related Products
| Style | Model | Range | Dial Reading | Range Per Revolution | Stylus Length | Accuracy | Graduations | Reading | Contact Point Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 811-1PZ | 0" to 0.06" | 0 to 30 | 0.06" | 1 15/16" | -0.001" to +0.001" | 0.001" | Continuous | 1 5/16" | SGD 1,620.16 | |
| B | 811-1CZ | 0" to 0.06" | 0 to 30 | 0.06" | 1 15/16" | -0.001" to +0.001" | 0.001" | Continuous | - | SGD 1,983.03 |
