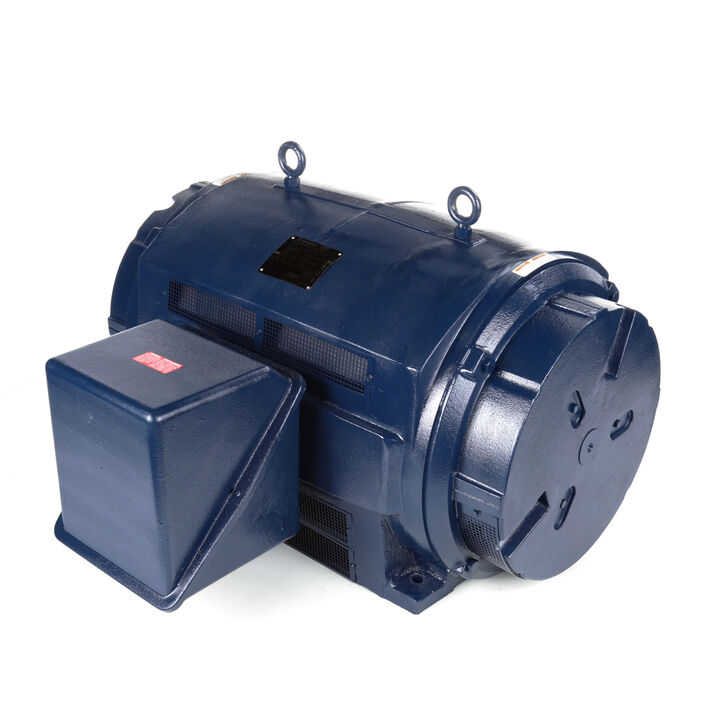

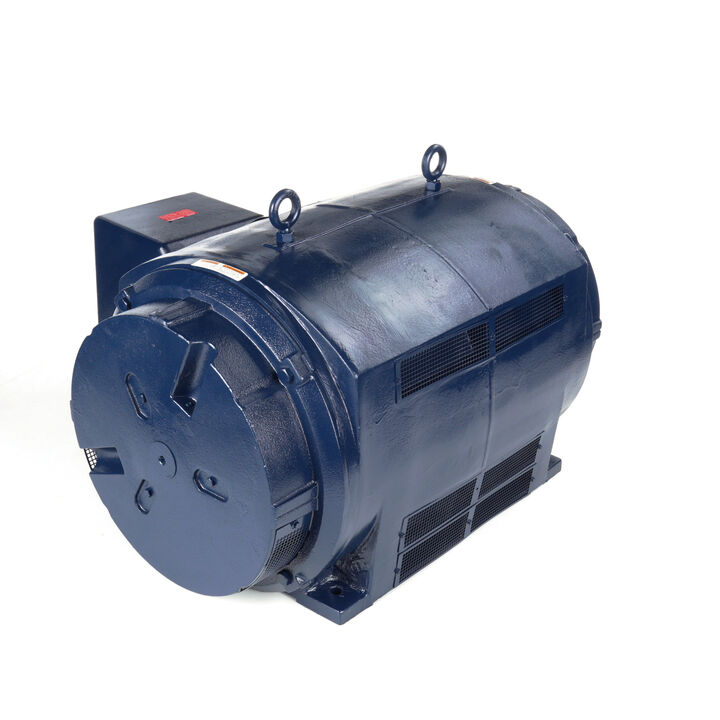

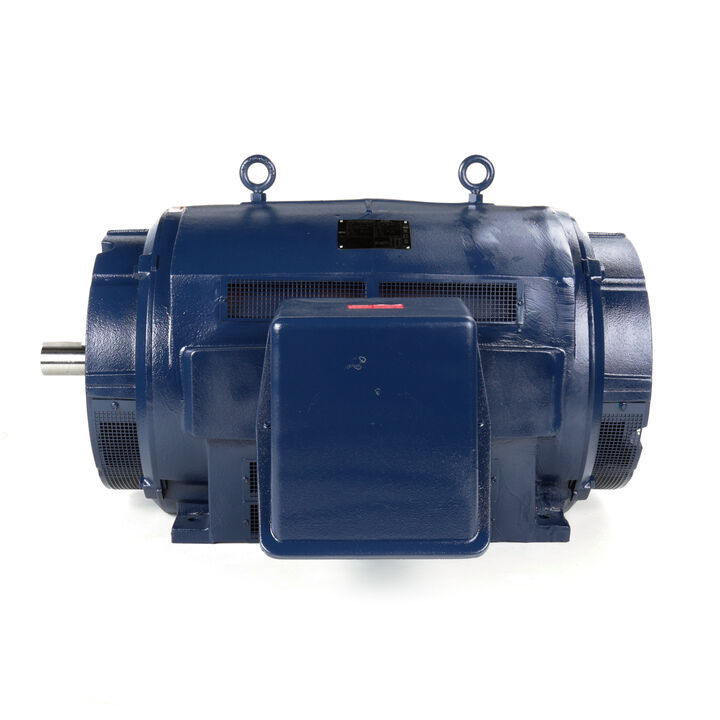

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 96.2% |
| Efficiency Group | Premium |
| Frame | 449TS |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 538A |
| Full Load Amps @ 50hz | 538A |
| Hp | 500 hp |
| Hp @ 50hz | 500 hp |
| Insulation Class | Class H |
| Inverter Rated | Yes |
| Length Less Shaft | 39 1/2" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
|---|---|
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3572 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 96.2% |
| Overall Length | 44 1/2" |
| Phase | 3 |
| Rpm Range | Over 3600 RPM |
| Shaft Dia. | 2 3/8" |
| Shaft Length | 5" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Motor Thermal Protection | None |
| standard | CE CERTIFIED, CSA CERTIFIED, UL LISTED |
| Height (cm) | 79.2 |
|---|---|
| Length (cm) | 142.24 |
| Width (cm) | 116.84 |
| HS Code | 8501538040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1192.05 |
| Style | Model | Motor Enclosure Design | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Motor Type | Frame | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 449TSTDN14005 | Open Dripproof | 460V AC | 3575 RPM | 500 hp | 50/60 Hz | 546A | Three Phase | 449TS | SGD 95,314.10 | |
| B | 056T17D3301 | Open Dripproof | 208-230/460V AC | 1725 RPM | 1 hp | 50/60 Hz | 3.4-3.6/1.8A | Three Phase | 56HZ | SGD 1,483.82 | |
| C | 145TTDR5401 | Open Dripproof | 230/460V AC | 850 RPM | 3/4 hp | 50/60 Hz | 4/2A | Three Phase | 145T | SGD 1,348.43 | |
| D | 056T17D3303 | Open Dripproof | 208-230/460V AC | 1725 RPM | 2 hp | 50/60 Hz | 6.2/3.1A | Three Phase | 56HZ | SGD 1,476.78 | |
| E | 143TTDR6052 | Open Dripproof | 230/460V AC | 1760 RPM | 1 hp | 50/60 Hz | 3/1.5A | Three Phase | 143T | SGD 1,347.40 | |
| F | 145TTDR6126 | Open Dripproof | 230/460V AC | 1755 RPM | 1 1/2 hp | 50/60 Hz | 2.2/4.4A | Three Phase | 145T | SGD 1,139.37 | |
| G | 145TTDR6132 | Open Dripproof | 230/460V AC | 1750 RPM | 2 hp | 50/60 Hz | 6/3A | Three Phase | 145T | SGD 1,811.11 |
