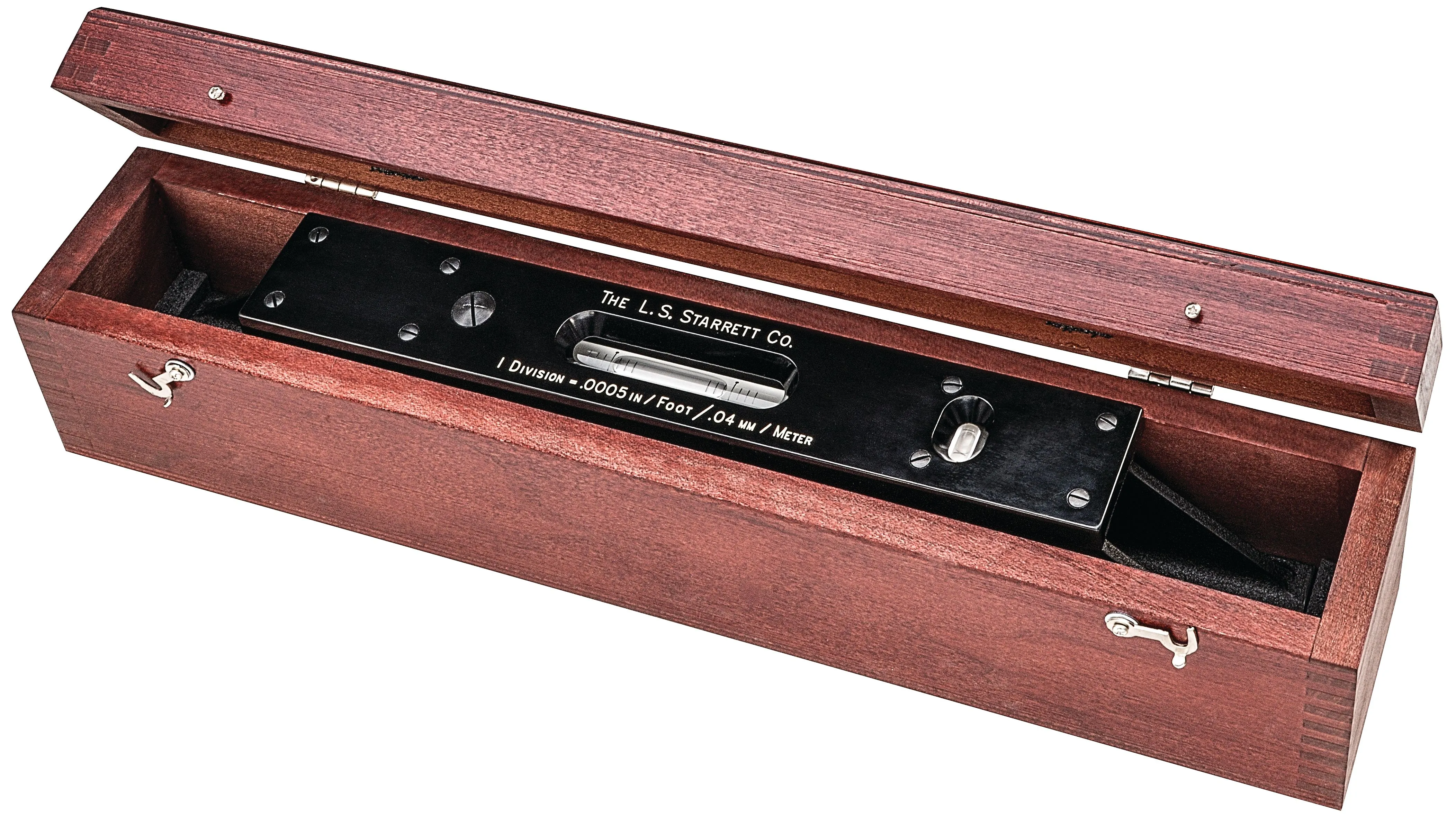

STARRETT 199Z 50719 Machinists Master Precision Level, 15 Inch Length, 2 Vials
Item: AC8HCX
Model: 199Z
Cross Ref: 3ACH1 / 50719
24 In Stock
Ships within 2 days via
5% off
SGD3,131.60/unit
(inc. GST)
Request Quote
FREE delivery on orders over SGD200.00
Specifications
| Item | Master Level |
|---|---|
| Accuracy | 10 sec. |
| Construction | Cast Iron |
| Frame Material | Cast Iron |
| Graduations | 0.04 mm/m |
| Height | 3" |
| Includes | Standard Letter of Certification |
| Length | 15" |
| Length (mm) | 380 mm |
| Level Orientation | Horizontal |
| Material | Cast Iron |
| Number Of Cross Test Vials | 1 |
| Number Of Level Vials | 2 |
| Number Of Plumb Vials | 0 |
|---|---|
| Number Of V-grooves | 0 |
| Overall Height | 3" |
| Overall Length | 15" |
| Overall Width | 1 5/8" |
| Precision Vial Properties | Graduated, Grounded |
| Sensitivity | 0.0005 in./ft. |
| Shape | Straight |
| Total Number Of Vials | 2 |
| Type | Precision |
| Vial Material | Glass |
| Vial Shape | Barrel |
| Width | 1.62" |
Product Details
- Starrett 199Z is a 15-inch-long, precision level designed to level machines or workpieces. It uses a special iron alloy to reduce thermal effects & provides an accurate reading of the machine level.
- This Starrett precision level has the main vial of 10 second accuracy with seven graduations on each side of the bubble, where one division equals 0.0005 inch per foot or 0.04 mm per meter. An auxiliary level vial is also present for horizontal positioning of the workpiece.
Shipping Information
| Height | 10.16 |
|---|---|
| Length | 46.23 |
| Width | 15.49 |
| HS Code | 9015308000 |
|---|---|
| Country Of Origin | US |
| Weight | 3.870000 |
