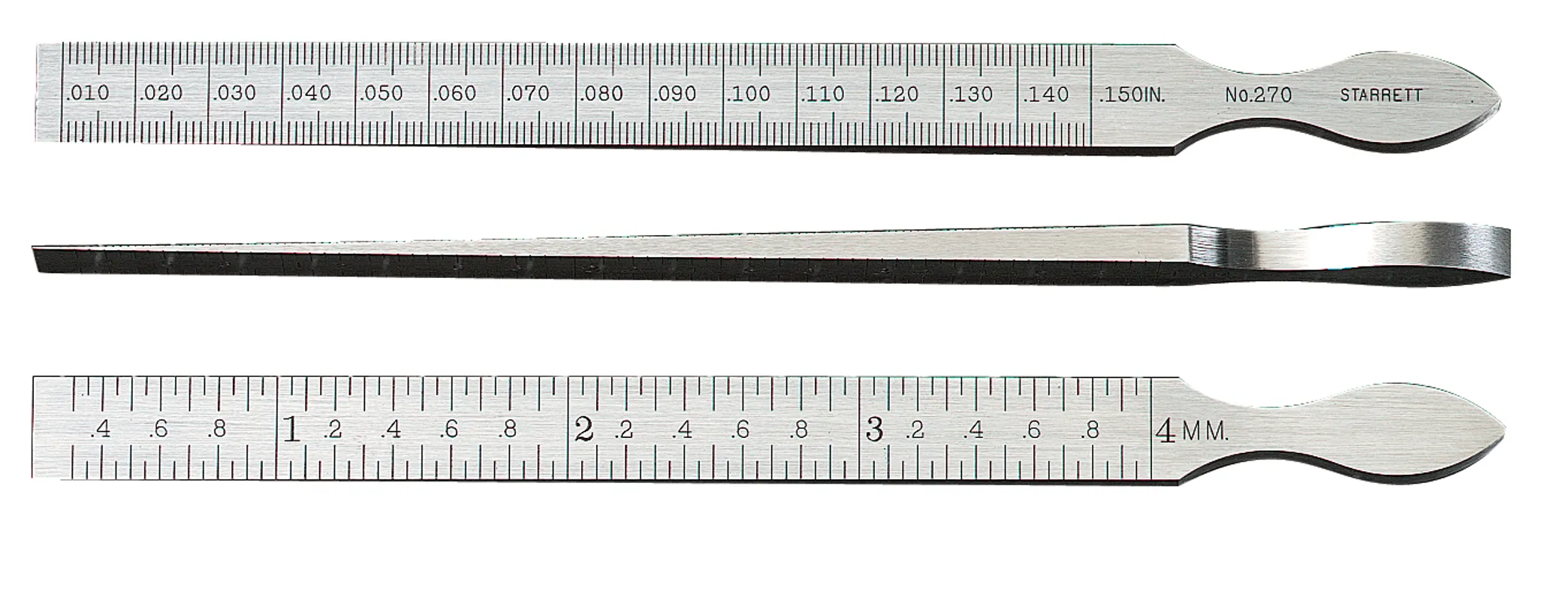

STARRETT 270 51292 Taper Gauge, W/ Gauge Style Flat Leaf, 0.30mm to 4mm range
Item: AC4HHJ
Model: 270
Cross Ref: 2ZVC2 / 51292
13 In Stock
Ships within 2 days via
5% off
SGD464.22/unit
(inc. GST)
Request Quote
FREE delivery on orders over SGD200
Specifications
| Item | Taper Gage |
|---|---|
| Dimensions Type | Inch |
| Finish | Polish |
| Gauge Style | Flat Leaf |
| Graduations | 0.001" |
| Length | 6 1/4" |
| Material | Tool Steel |
| Measurement | 0.01" to 0.15" |
|---|---|
| No. Of Leaves | 8 |
| Operation Type | Mechanical |
| Overall Length | 6 1/4" |
| Range | 0.01" to 0.15" |
| Spc Output | No |
| Width | 7.062" |
Product Details
- Starrett 270 is a tool-steel constructed taper gauge, used to measure hole and slot sizes accurately
- It is widely used in bearing work and for gaging slots, and can also be used as a precision shim
- This Starrett taper gauge is one-side graduated from 0.01 to 0.15 inch in thousandths of an inch and reverse side graduated from 0.3 mm to 4 mm in one-twentieth of a mm (0.05mm)
Shipping Information
| Height (cm) | 2.03 |
|---|---|
| Length (cm) | 17.27 |
| Width (cm) | 3.81 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.0675 |
FAQ′s
Q. Are outside micrometers and micrometer calipers the same?
A. Yes, outside micrometers are also called micrometer calipers.
Q. What is the function of a taper gauge?
A. A taper gauge is a measuring tool that calculates sizes, such as the widths of grooves & gaps, pipe inner diameters and hole diameters.
