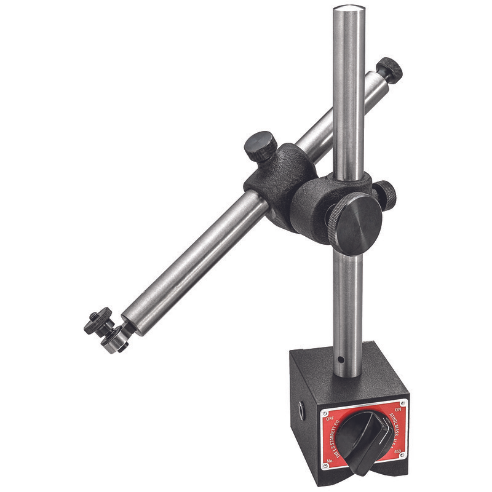

STARRETT 659A 56687 Magnetic Indicator Holder, Thread Adapter, Fine Adjust
Item: AC4GZV
Model: 659A
Cross Ref: 2ZUL9 / 56687
25 In Stock
Ships within 2 days via
5% off
SGD2,121.40/unit
(inc. GST)
Request Quote
FREE delivery on orders over SGD200.00
Specifications
| Item | Indicator Holder |
|---|---|
| Arm Type | Rigid |
| Base Depth | 3" |
| Base Height | 2 3/8" |
| Base Length | 3" |
| Base Type | Magnetic |
| Base Width | 2 3/8" |
| Color | Black |
| Construction | Cast Iron |
| Features | Rotary On/Off Switch |
| Finish | Black |
| Includes Snug | Yes |
|---|---|
| Magnetic Pull | 150 lbs. |
| Max. Reach | 15" |
| Overall Length | 11 3/4" |
| Rod Dia. | 3/4" |
| Screw Type | Knob |
| Snug | Swivel Post |
| Switch Type | Off/Rotating On |
| Thread Size | 3/8"-24 |
| Working Length Of Post/lower Arm | 9 3/8" |
| Working Length Of Upper Arm | 9 3/8" |
Product Details
- Upright post assemblies include post, snug & gage rod with clamp and fine adjust

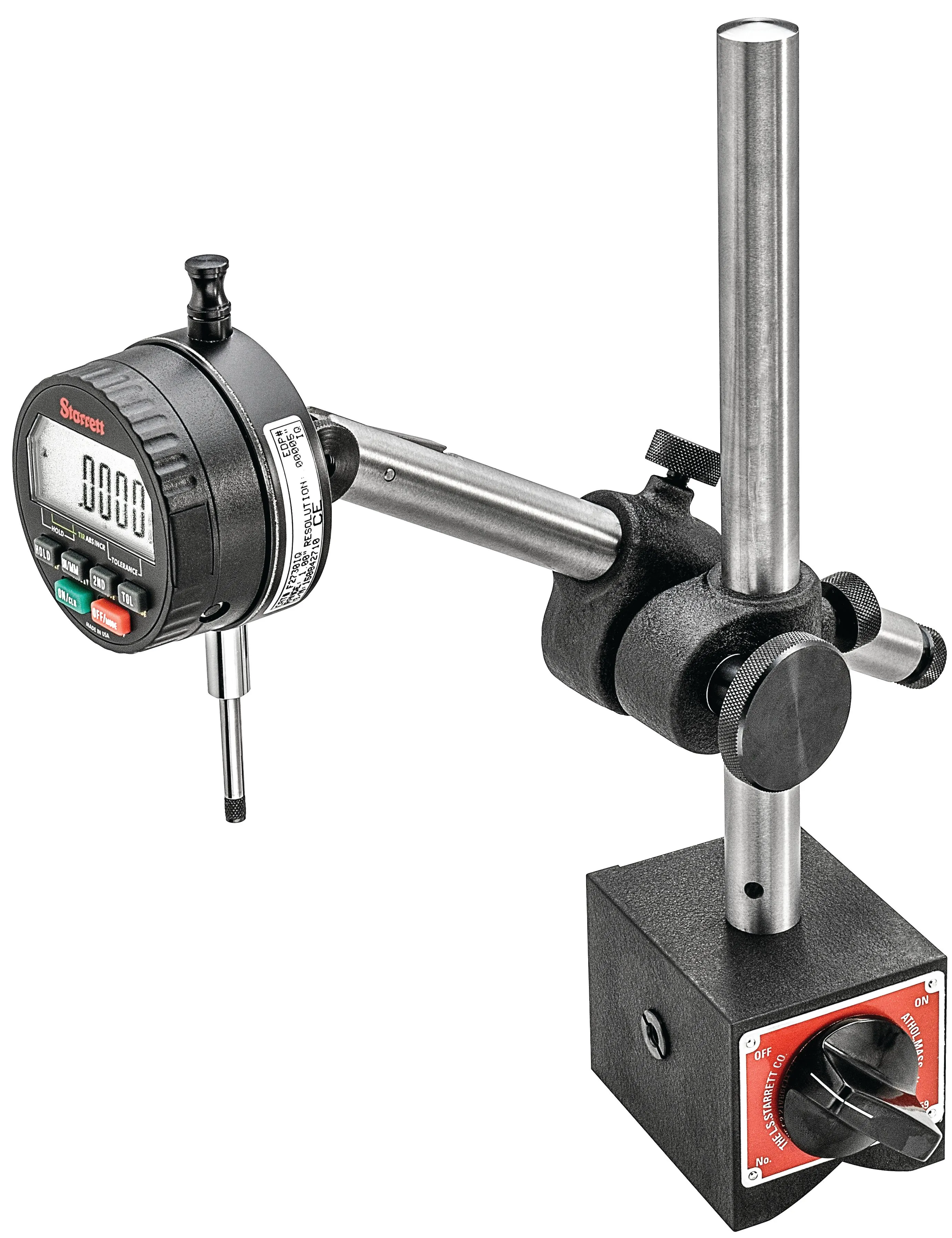

- Used to mount dial indicators for taking accurate and repeatable measurements
- V-shaped magnetic base with a holding strength of 100 to 150 lb
- Equipped with on/off switch for releasing magnetic field for repositioning
- Two 3/4 inch / 19 mm holes for positioning dial indicator at any height and vertical angle
Shipping Information
| Height | 7.62 |
|---|---|
| Length | 36.32 |
| Width | 12.95 |
| HS Code | 8505904000 |
|---|---|
| Country Of Origin | US |
| Weight | 3.825000 |
Related Products
| Style | Model | Base Height | Base Width | Base Length | Includes Snug | Magnet Type | Compatible Indicator Mounts | Operation Type | Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 659BZ | 2.375" | 2.375" | 2.375" | No | Permanent | Lug | Mechanical | 0" to 0.125" | SGD 2,875.63 | |
| B | 659P | 2 3/8" | 2 3/8" | 3" | No | On/Off Knob | 1/4" | - | - | SGD 948.03 | |
| C | 659AZ | - | - | - | - | - | - | - | - | - |
