STARRETT S668DZ 67153 Shaft Alignment Clamp, Extension Plate, Anodized Aluminium

Item: AD6XFW

Model: S668DZ

Cross Ref: 4CEW1 / 67153

11 In Stock

Ships within 2 days via

~~SGD 3,490.47~~

5% off

SGD 3,315.94 /unit (inc. GST)

Add To Cart

Request Quote

FREE delivery on orders over SGD 200.00

Payment

Specifications

Item	Shaft Alignment Clamp Set
Band Material	Steel
Clamp Material	Aluminum
Compatible Shaft Dia. (max.)	7 1/2"
Dial Reading	0-50-0
Frame Material	Aluminum
Included	Case, Chain Clamp, Extension Plate, Posts

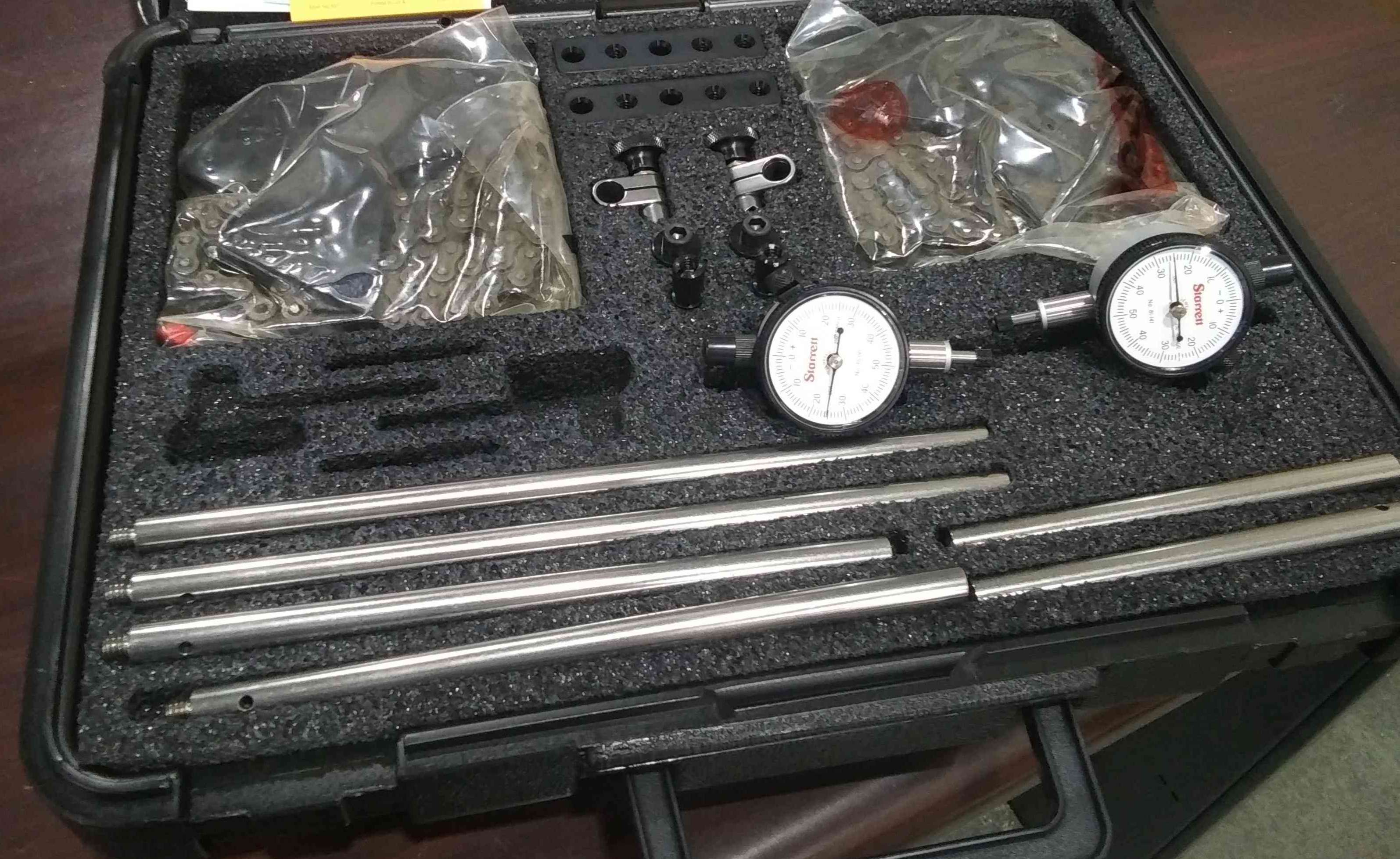

Starrett S668DZ is a shaft alignment clamp set that includes two chain clamps, two Starrett 81-141J back-plunger dial indicator gauges, two PT18724 stainless-steel snugs to hold the gauges in position, two extension plates for additional radial clearance and 6 rigid 3/8 inch diameter, stainless-steel indicator posts in three lengths (5, 7.44 and 9 inches).
The lightweight chain clamps are made of black anodised aluminium featuring heavy-duty roller chains that can accommodate shafts up to 7.5 inches in diameter. The second clamp is mounted across from the first clamp and acts as a vertical target for face alignment.
The indicator gauges are used to measure alignment distortion and have a configurable armature to secure the gauges in position on two axes. These dial indicator gauges have shockless and low-friction jeweled bearings that can withstand excessive vibrations.

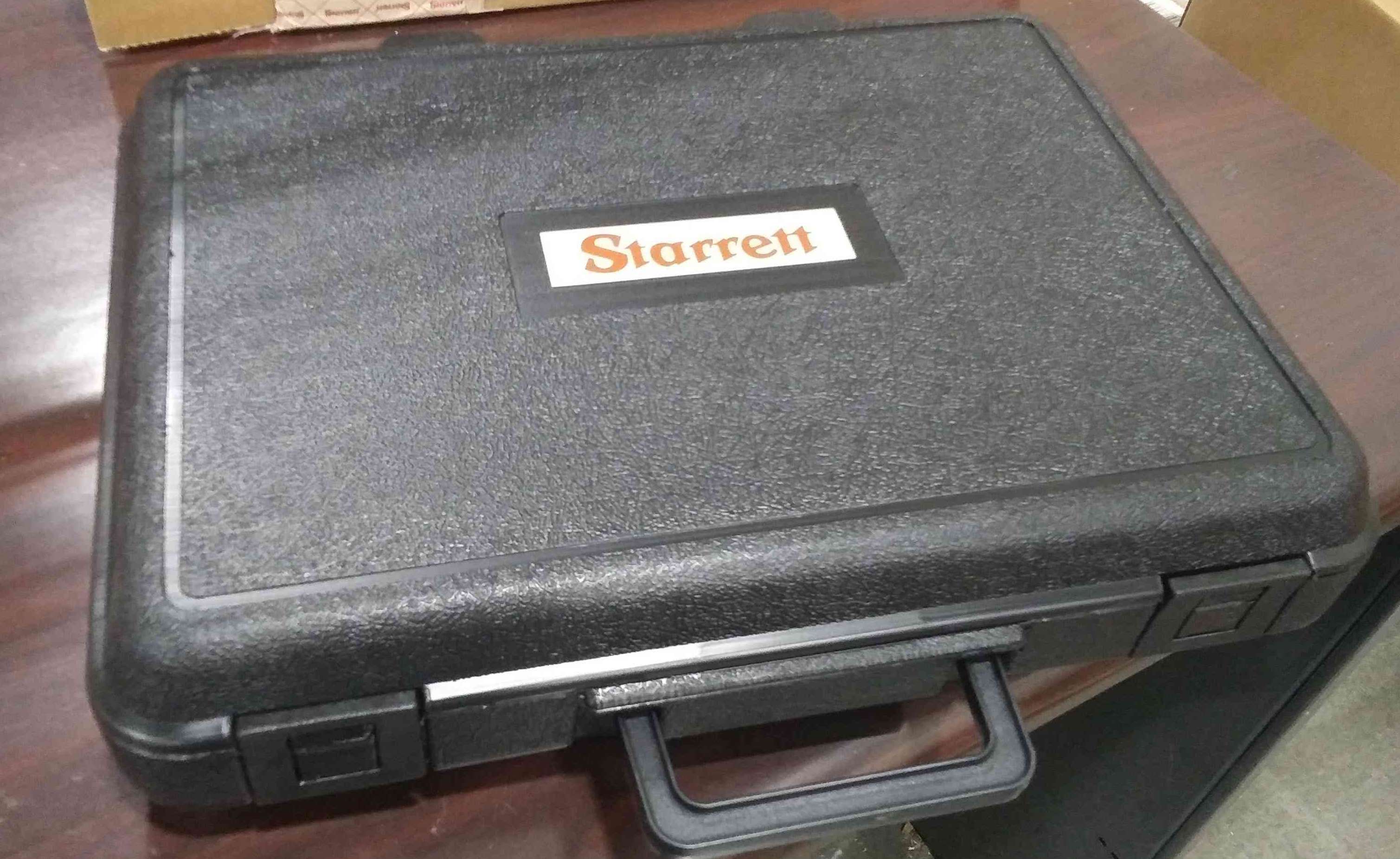

This set comes in a case for proper organisation & protection of the components and is used to provide precise radial and angular alignment of motors, pumps and compressors. It is also capable of addressing radial and angular misalignment problems.
