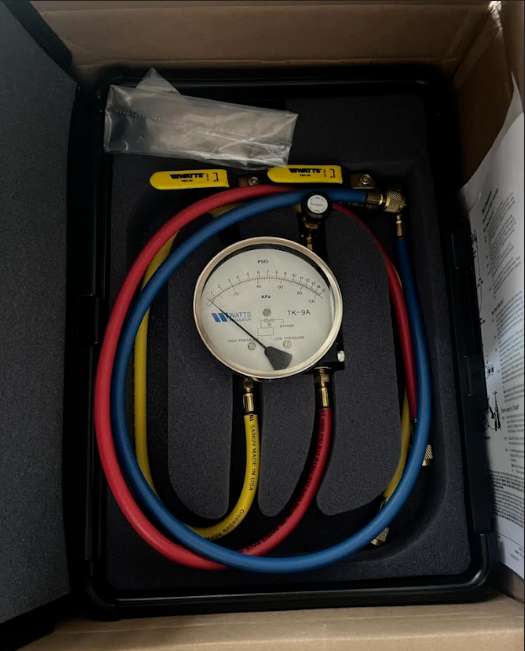

WATTS TK-9A 0385496 Backflow Preventer Test Kit, +/-2% Accuracy, 3 Hoses
Item: AB2BGT
Model: TK-9A
Cross Ref: 1KYB6 / 0385496
22 In Stock
Ships within 2 days via
5% off
SGD 5,461.77/unit
(inc. GST)
Request Quote
FREE delivery on orders over SGD 200
- Specifications
- Product Details
- Shipping Information
- Features
- Standards and Approvals
- FAQ′s
- See Variants
Specifications
| Item | Backflow Preventer Test Kit, 3 Valve |
|---|---|
| Accuracy Level | -2% to +2% |
| Adapters Included | Yes |
| Buy American Act Compliant | Yes |
| Compatible Product Type | Double Check Valve Assemblies, Pressure Vacuum Breakers, Spill-Resistant Vacuum Breakers To Usc, Asse 5000 Standards, Testing All Reduced Pressure Zone Backflow Prevention Assemblies |
| Hoses Included | Yes |
| Included | (3) 3 ft. Hoses, (9) Hose Adapters, Analog Test Gauge, Carrying Case, Security Strap, 16 In |
| Kit Type | 3 Valve Test Kit |
|---|---|
| Lead Free | Not In Scope |
| Max. Working Pressure | 12.1 Bar |
| Max.ing Working Temp. | 210°F |
| No. Of Valves | 3 |
| Product Type | Test Kit |
| Series | TK-9A Series |
Product Details
Watts TK-9A backflow preventer test kit is used to test pressure vacuum breakers, spill-resistant vacuum breakers and double-check valve & backflow prevention assemblies.
Shipping Information
| Height (cm) | 15.49 |
|---|---|
| Length (cm) | 43.94 |
| Width (cm) | 36.58 |
| HS Code | 9017800000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 3.9015 |
Features
- This backflow preventer test kit connects easily to an RPZ device for accurate testing of relief valve opening differential, zone differential pressure and fouled check valves.
- It features a weatherproof gauge design with 600 psi ball valves for On/Off and needle valves for metering with an accuracy of +/-2%.
- This test kit includes threaded coupling adapters, hoses with female-threaded swivel couplings & test valves, and a moisture-resistant instruction guide for connecting with testable assemblies.
- It comes in a shock-resistant carrying case for easy handling and accessibility.
Standards and Approvals
- USC
- ASSE 5000
FAQ′s
Q. What is the maximum operating temperature of Watts TK-9A backflow preventer test kit?
A. This backflow preventer test kit can be operated at a maximum temperature of 210 degrees F.
Q. What is the difference between a backflow preventer and a check valve?
A. Check valves prevent backflow into sewage lift stations, ejector systems, wastewater lines & sump disposal lines, whereas backflow preventers stop water from flowing backwards into a water supply pipe, protecting potable water from pollution.
Q. How often should a backflow preventer be tested?
A. Backflow preventers should be tested at least once a year.
