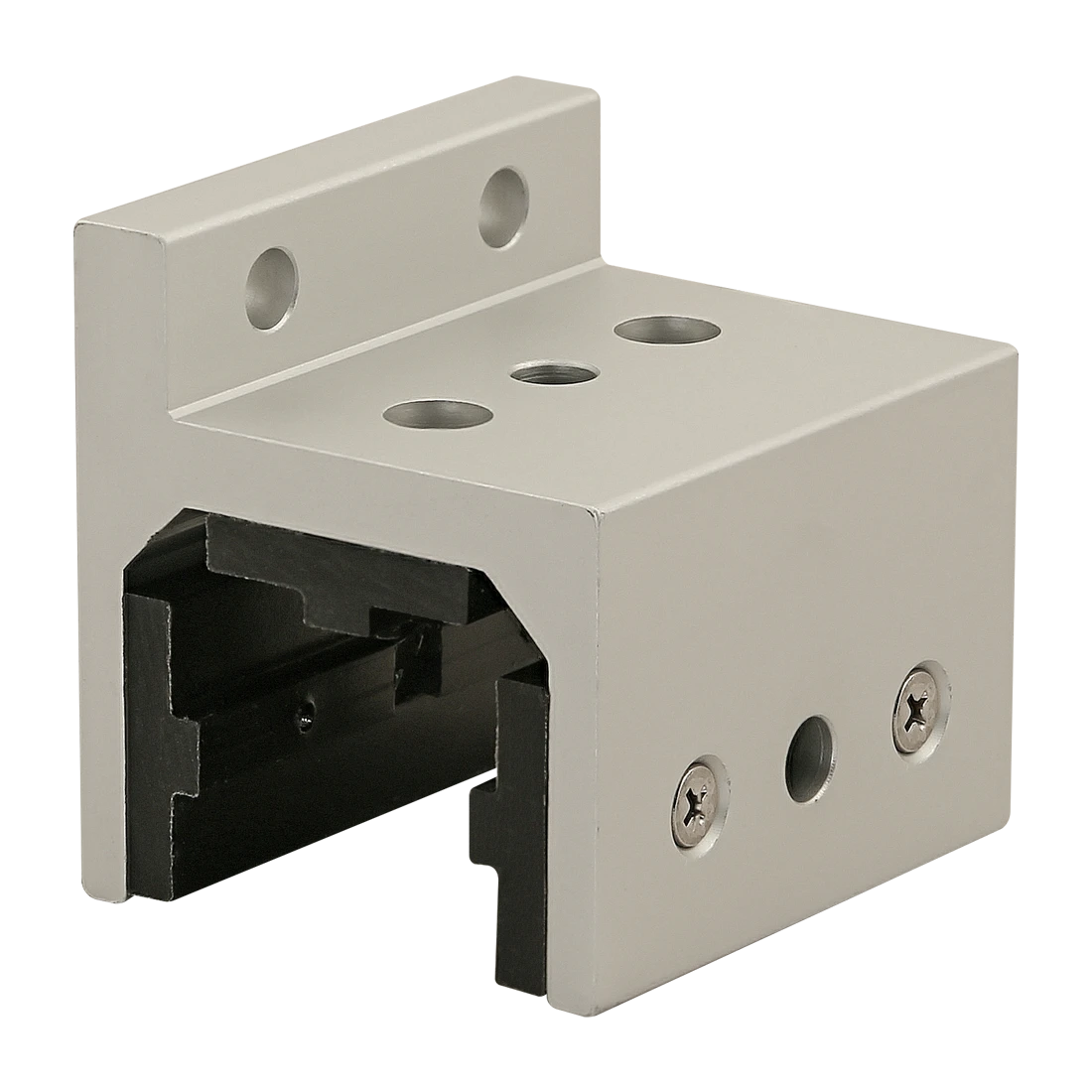

80/20 40-6515 Linear Bearing With Brake Hole, 3 Slot, 75.1mm x 65.2mm x 71.9mm, Aluminum | AE4FAL 5JRW2

80/20 40-6515 Linear Bearing With Brake Hole, 3 Slot, 75.1mm x 65.2mm x 71.9mm, Aluminum

Item: AE4FAL Model: 40-6515Cross Ref: 5JRW2
In Stock
Shipping to

Get it by Jun 7, Friday

Flat Shipping at SGD 19.99 + GST SGD 19.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

SGD 161.84 /unit (inc. GST)
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemLinear Bearing
Barrel Dia.0
Bearing TypeUHMW PAD
Bore Dia.8.3mm
ColorClear
Dimension A71.83 mm
Dimension B19 mm
Dimension C8.99 mm
Dimension D2.58 mm
Dimension E65.13 mm
Dimension F52.83 mm
Dimension G12.32 mm
Dimension H6.15 mm
Dimension J52.83 mm
Dimension K11.99mm
Dimension L75mm
Dimension M37.5 mm
Dimension N17.5mm
Dimension P (In.)32.56mm
Dimension Q40 mm
Dimension S8.71 mm
Dimension T8.33 mm
Dimension U40 mm
Dimension V17.5 mm
Dimension W9.53 mm
Dimension X17.42 mm
Dynamic Load Capacity0
FinishAnodize
Flange Dia.0
Flange Thickness12 mm
Grade6105-T5
Height71.8
Locking TypeOptional
LubricationDry
MaterialAluminum
Max. Pv0
Mounting Hole Center40 mm
Mounting Hole Dia.8.3mm
Mounting Surface to Shaft Center0
Overall Height71.8mm
Overall Length75mm
Overall Width65.1mm
Pad MaterialUHMW Plastic
ProcessExtruded
Slot Angle (Degrees)0
Slot Width8.12mm
Static Load Capacity0
Thread Size#10 FHS
TypeSingle Flange
Width65.1

Shipping Info:

Ship weight (kg) 0.32
Ship height (cm)7.62
Ship length (cm)15.24
Ship width (cm)7.62
HS code8483304080
Country of OriginUS

Product Variants

ProductModelDimension ADimension BDimension CMaterialColorPrice
80/20 6415 Linear Bearing, Brake Hole, 1-7/8 x 1-5/8 x 1-31/32 Inch Size, Aluminum | AC3BLQ 2RCJ3
64151.968"0.656"0.25"AluminumClear SGD 128.04
80/20 6515 Linear Bearing, Brake Hole, 2-13/16 x 2-1/2 x 2-3/4 Inch Size, Aluminum | AC3BLT 2RCJ5
65152.75"0.75"0.375"AluminumClear SGD 164.07
80/20 25-6415 Linear Bearing With Brake Hole, 3 Slot, 47mm x 41.2mm x 49.8mm, Aluminum | AE4FAJ 5JRW0
25-641549.73 mm16.48 mm5.99 mmAluminumClear SGD 126.69
