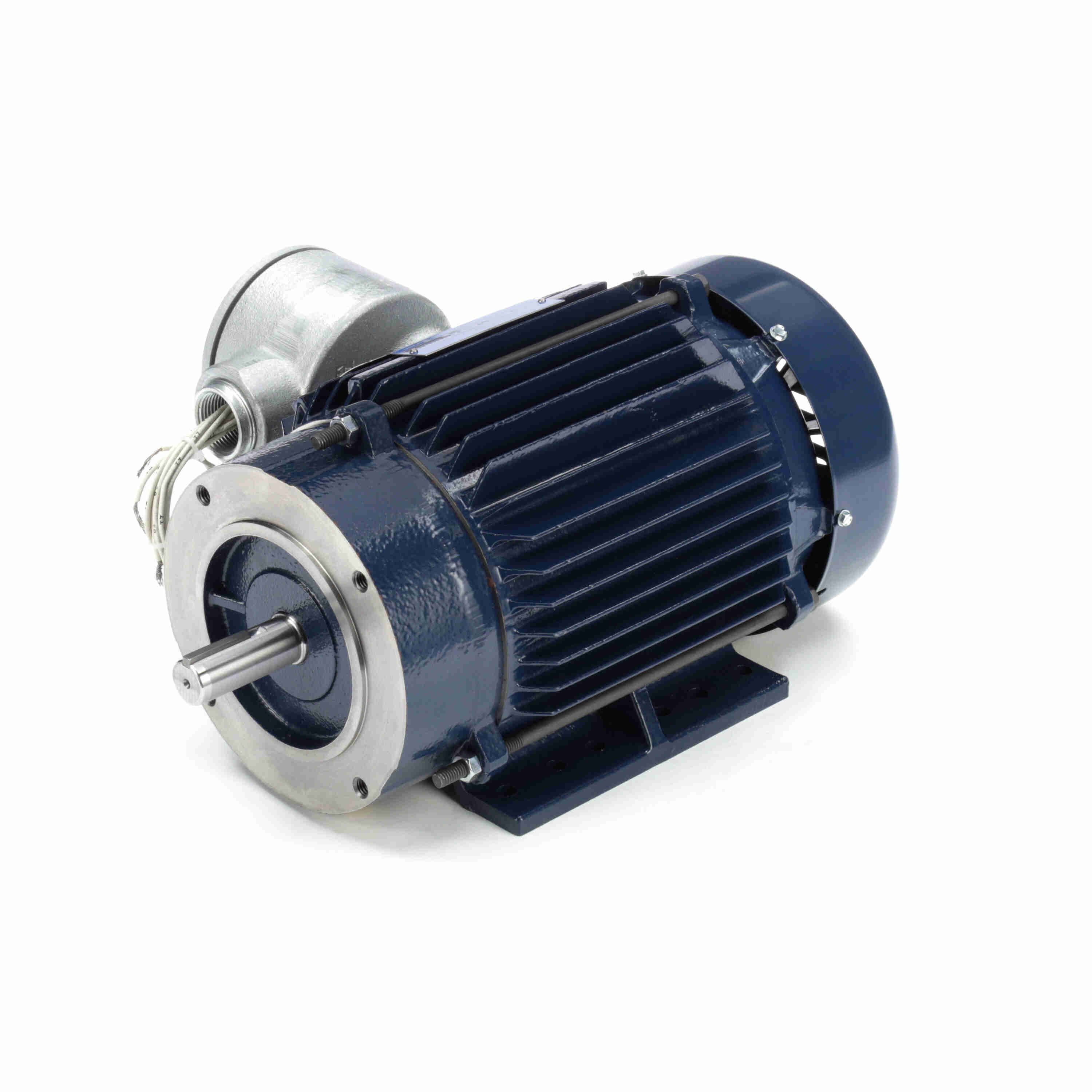

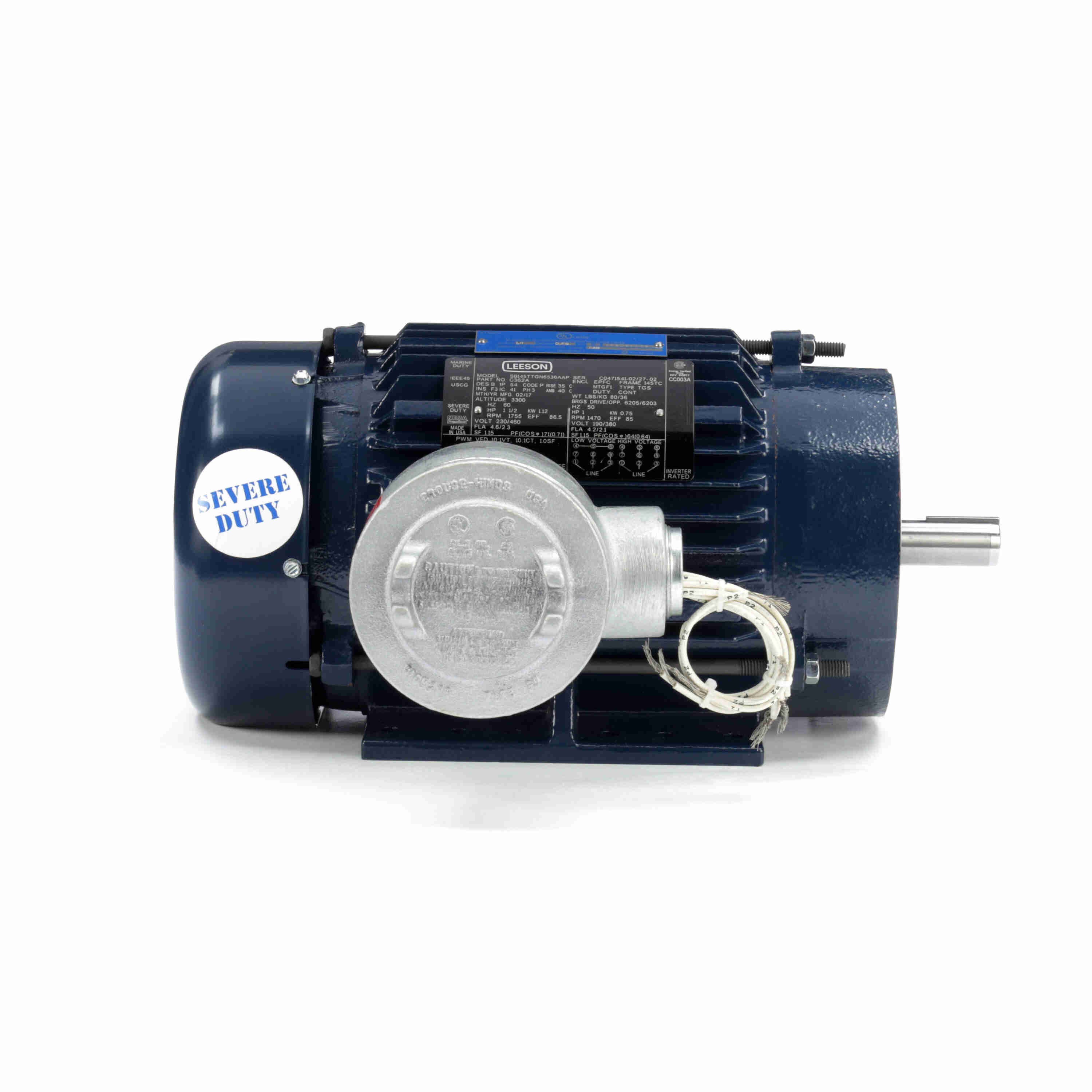

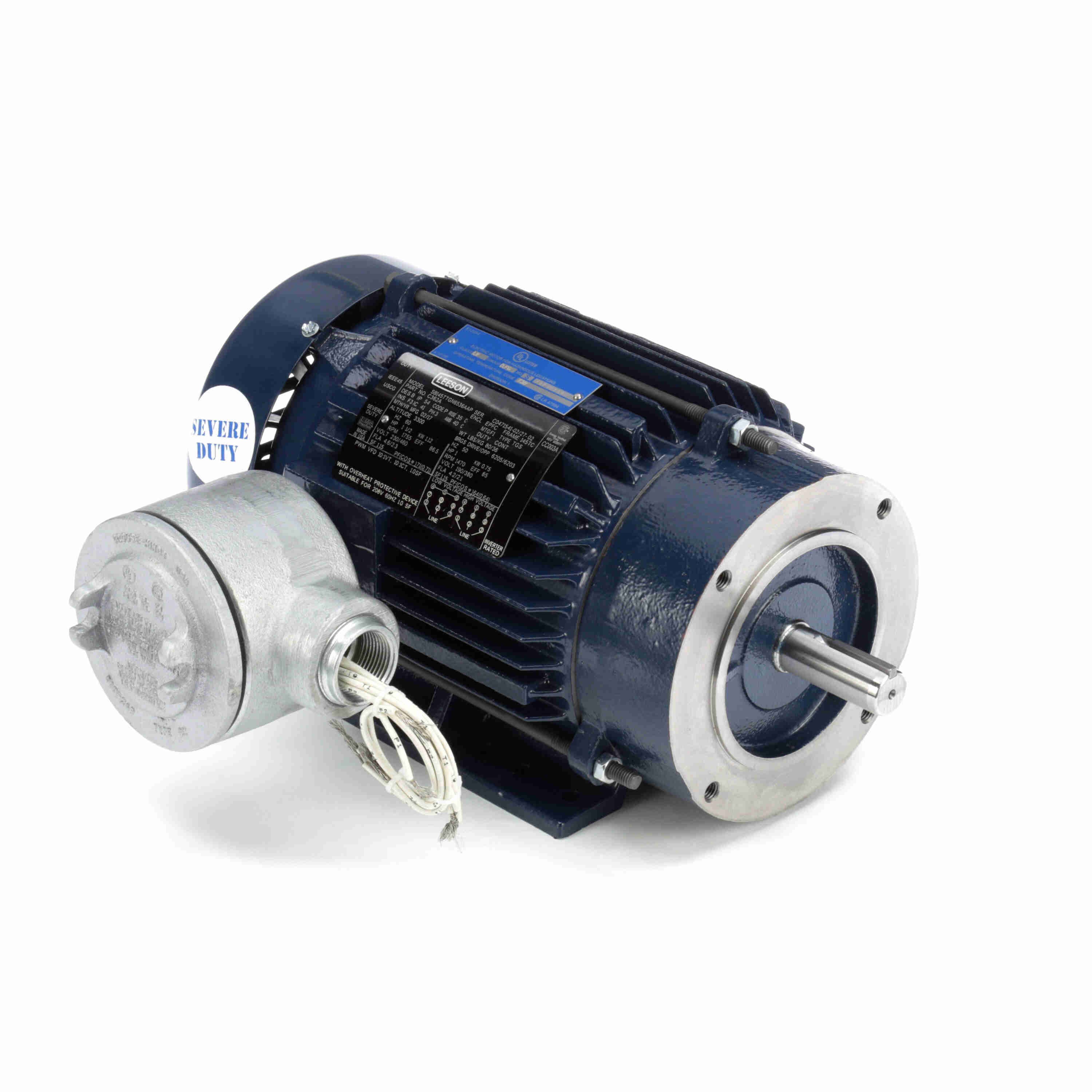

LEESON 145TTGN6536 145TTGN6536AA / C362A Explosion Proof Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380 V, 1800 RPM
Item: AC8FAR
Model: 145TTGN6536
Cross Ref: 39P310 / 145TTGN6536AA / C362A
Check Availability
In Stock
Get it by Friday, Jul 31
5% off
SGD2,783.04/unit
(inc. GST)
Request Quote
Delivery
Specifications
| Item | Hazardous Location Motor |
|---|---|
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Efficiency Group | NEMA Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 145TC |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz , 60 Hz |
| Full Load Amps | 4.6/2.3A |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1 1/2 hp |
| Included | (11) 12" Leads In The Conduit Box |
| Insulation Class | Class F |
| Length Less Shaft | 13 1/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1755 RPM |
| Nema Design | B |
| No. Of Speed | 1 |
| Nominal Efficiency | 86.5% |
| Number | CC003A |
| Overall Length | 15 1/4" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Speed | 1701-1800 RPM |
| Temp. Code | T3B |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Product Details
- Supersedes Marathon - C362 / 145TTGN4032
Shipping Information
| Height (cm) | 23.83 |
|---|---|
| Length (cm) | 40.16 |
| Width (cm) | 36.35 |
| HS Code | 8501524000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 36.0000 |
