STARRETT 196A1Z 50697 Dial Indicator With Case
Item: AC4GYZ
Model: 196A1Z
Cross Ref: 2ZUJ4 / 50697
26 In Stock
Ships within 2 days via
5% off
SGD1,001.49/unit
(inc. GST)
Request Quote
FREE delivery on orders over SGD200
Specifications
| Item | Dial Test Indicator |
|---|---|
| Accuracy | -0.001" to +0.001" |
| Back Type | Non Removable |
| Bearing Type | Plain |
| Contact Point Dia. | 3/8" |
| Dial Color | White |
| Dial Reading | 0-100 |
| Dial Size | 1 1/2" |
| Dimensions Type | Inch |
| Graduations | 0.001" |
| Included | Indicator With 3 Contact Points, Adaptor, 4 Attachments In Case |
| Included Case | Yes |
|---|---|
| Included Certification | Certificate Of Inspection |
| Indicator Style | Back Plunger |
| Long Form Calibration Certificate | No |
| Max. Measurement-inch | 1/5" |
| Min. Measurement-inch | 0" |
| Operation Type | Mechanical |
| Range | 0" to 0.2" |
| Range Per Revolution | 0.1" |
| Reading | Continuous |
Product Details
- Starrett 196A1Z is a universal back plunger dial indicator with a shank diameter of 1/4 inches (6.3 mm) and 0.001-inch (0.02 mm) graduations.

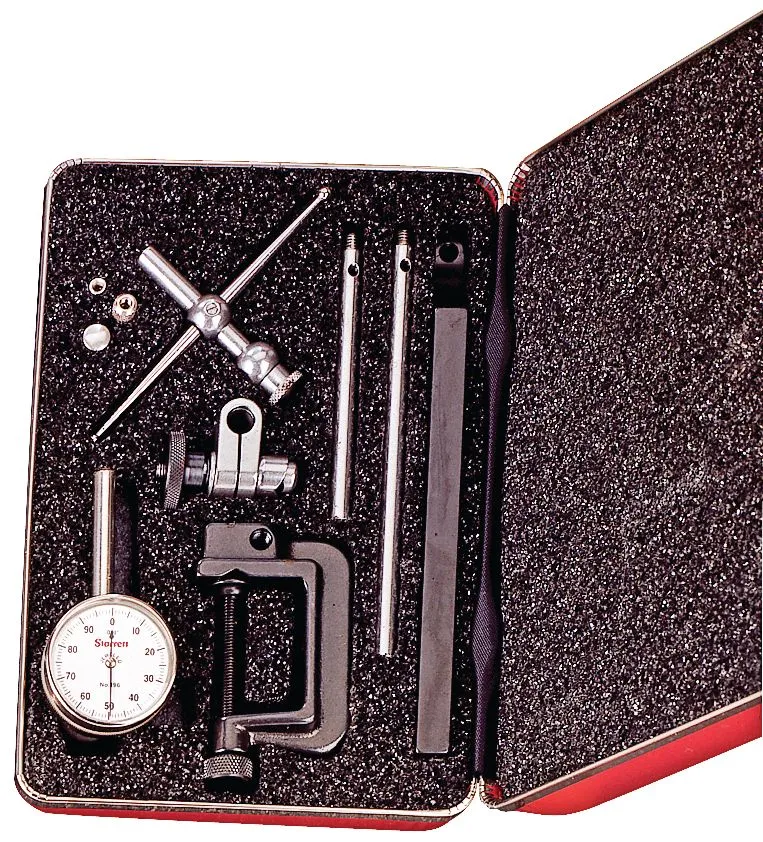

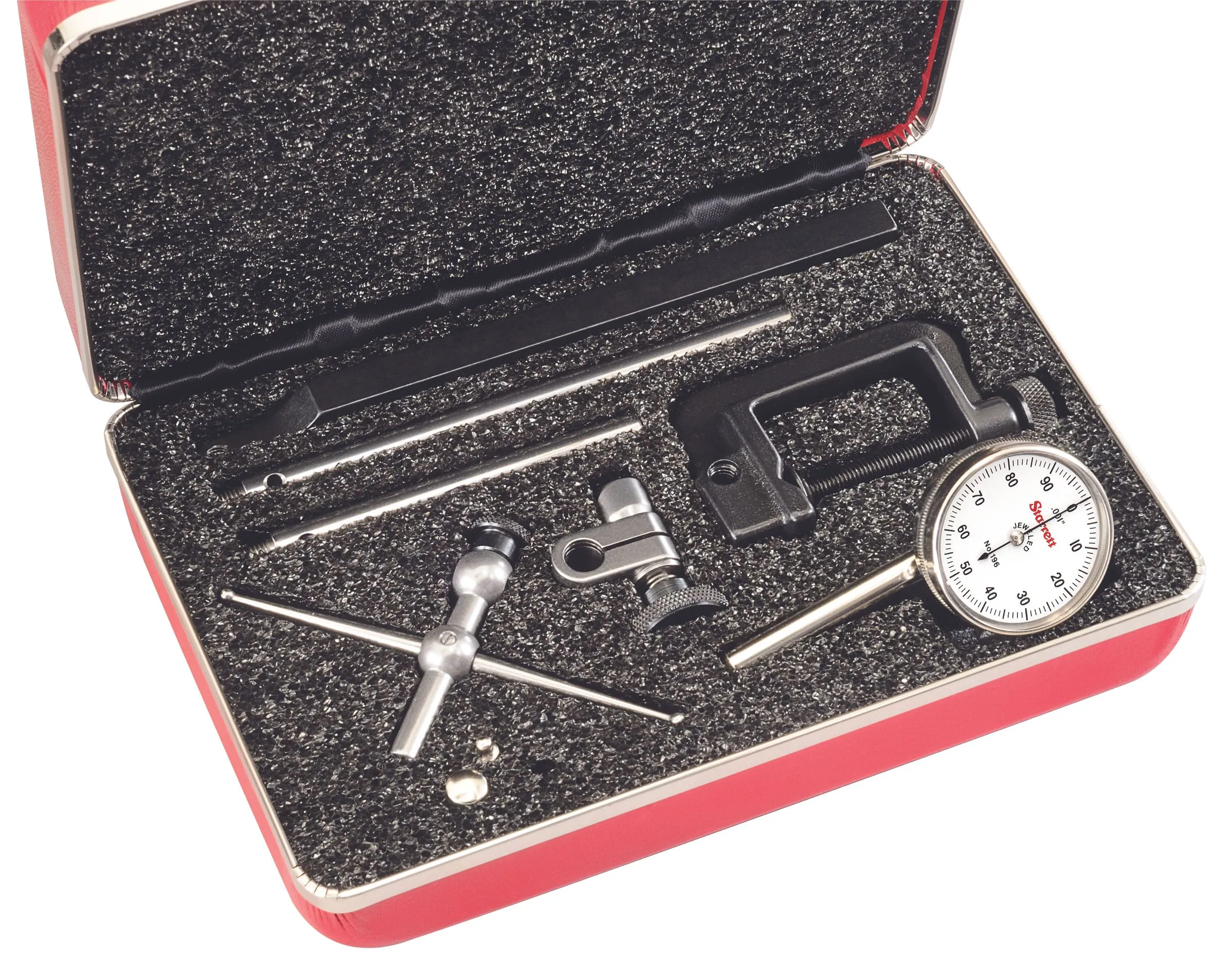

- It features a scratch-resistant white-face dial and is supplied with a case, clamp, tool post holder, and snug and hole attachment.
- This accurate and reliable Starrett dial indicator ensures smooth operation and is used in various test and measurement applications.
Shipping Information
| Height (cm) | 5.84 |
|---|---|
| Length (cm) | 19.56 |
| Width (cm) | 13.72 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | BR |
| Weight (kg) | 1.0125 |
