STARRETT 196A6Z 50701 Universal Back Plunger Dial Indicator, Antimagnetic
Item: AE6NBK
Model: 196A6Z
Cross Ref: 5UAV0 / 50701
12 In Stock
Ships within 2 days via
5% off
SGD1,038.56/unit
(inc. GST)
Request Quote
FREE delivery on orders over SGD200.00
Specifications
| Item | Dial Indicator |
|---|---|
| Accuracy | -0.001" to +0.001" |
| Back Type | Non Removable Flat |
| Bearing Type | Jeweled |
| Calibration Certificate | No |
| Contact Point Dia. | 0.125", 0.3125", 0.5" |
| Contact Point Diameter | 0.125", 0.3125", 1/2" |
| Dial Color | White |
| Dial Reading | 0-100 |
| Dial Size | 1.69" |
| Dimension Type | Inch |
| Graduations | 0.001" |
| Includes | Antimagnetic Indicator With 3 Contact Points, 4 Attachments In Case |
| Includes Case | Yes |
|---|---|
| Long Form Calibration Certificate | No |
| Maximum Measurement - Inch | 1/5" |
| Minimum Measurement - Inch | 0" |
| Minimum Measurement - Mm | 0 mm |
| Non-magnetic | Yes |
| Number Of Indicators | 1 |
| Operation Type | Back Plunger |
| Range | 0.1" |
| Range Per Revolution | 0.1" |
| Reading | Continuous |
| Shock Resistant | No |
| Stem Diameter | 1/4" |
Product Details

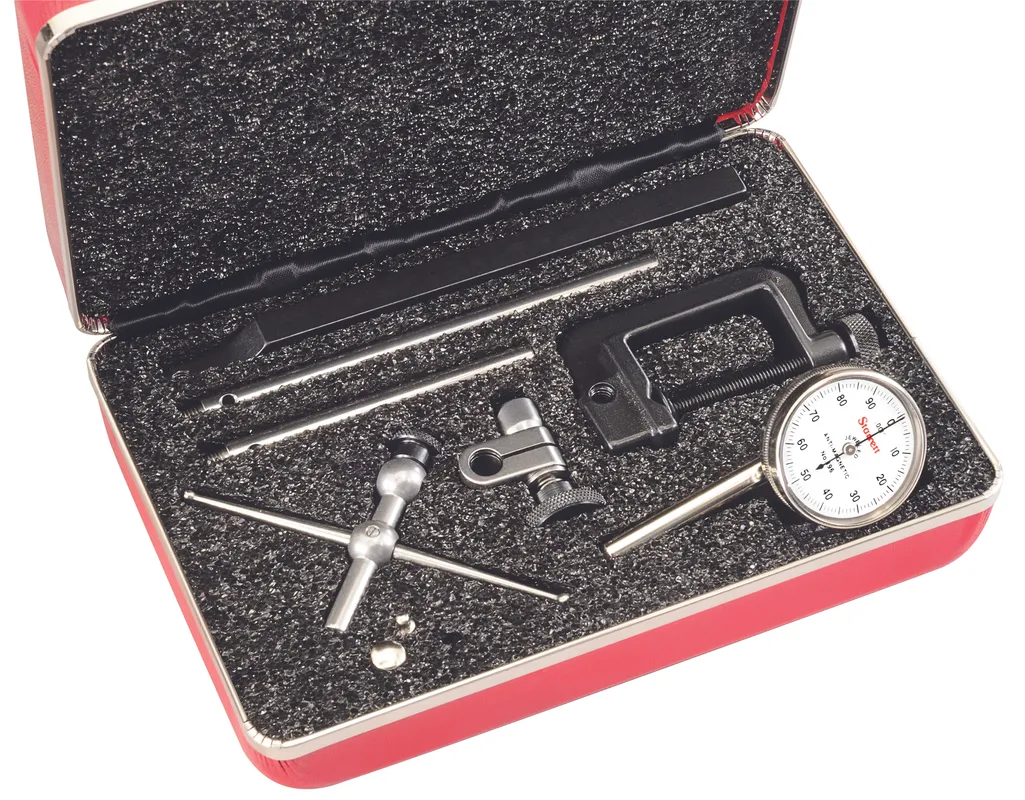

- Starrett 196A6Z universal back plunger dial indicator to measure deck clearances & various other small distances
- Features a reading scale (from 0 to 100) with graduations at every 0.001 inch to provide reliable readings with high accuracy
- Includes clamp, hole, snug & tool-post holder attachments
- Comes with a case for added protection
Shipping Information
| Height | 5.84 |
|---|---|
| Length | 19.56 |
| Width | 13.72 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | BR |
| Weight | 1.012500 |
Related Products
| Style | Model | Operation Type | Range | Dimension Type | Accuracy | Reading | Graduations | Dial Size | Dial Reading | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 196A1Z | Mechanical | 0" to 0.2" | Inch | -0.001" to +0.001" | Continuous | 0.001" | 1 1/2" | 0-100 | SGD 1,001.49 | |
| B | 196F | - | - | - | - | - | - | - | - | SGD 131.20 | |
| C | 196A5Z | Back Plunger | 0" to 0.2" | Inch | -0.001" to +0.001" | Balanced | 0.001" | 1.44" | 0-50-0 | SGD 981.66 | |
| D | 196MA1Z | Back Plunger | 0 mm to 2.5 mm | Metric | -0.02 mm to +0.02 mm | Continuous | 0.02 mm | 1.69" | - | SGD 1,049.81 | |
| E | 196R | - | - | - | - | - | - | - | - | SGD 19.94 | |
| F | 196MR | - | - | - | - | - | - | - | - | SGD 19.50 |
