STARRETT 440Z-3RL 52115 Depth Micrometer, Hardened Steel Anvil, Ring Lock Nut
Item: AC4GXD
Model: 440Z-3RL
Cross Ref: 2ZUC9 / 52115
14 In Stock
Ships within 2 days via
5% off
SGD1,021.50/unit
(inc. GST)
Request Quote
FREE delivery on orders over SGD200.00
Specifications
| Item | Depth Micrometer |
|---|---|
| Accuracy | -0.0001" to +0.0001" |
| Anvil Material | Steel |
| Anvil Shape | Round |
| Base Length | 2 1/2" |
| Base Style | Full |

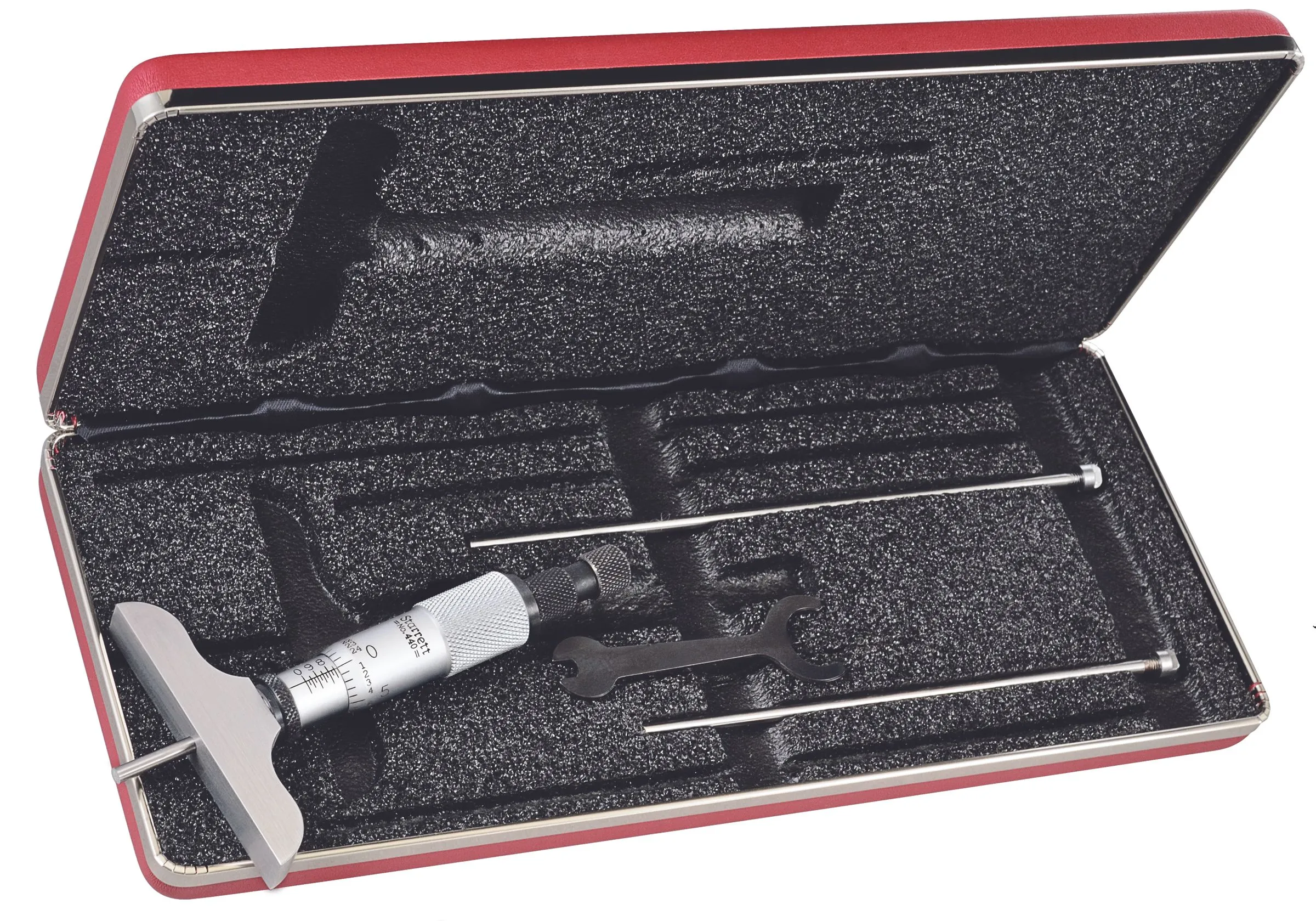

| Case Included | Yes |
| Case Type | Padded Case |
| Certification | No |
| Dimension Type | Inch |
| Graduations (in) | 0.001" |
| Included Certification | No |
| Includes | Spanner Wrench |
| Lock Nut Type | Ring |
| Long Form Calibration Certificate | No |
| Maximum Measurement - Inch | 3" |
|---|---|
| Minimum Measurement - Inch | 0" |
| Movement Of Screw | 1" |
| Number Of Gauges | 3 |
| Number Of Measuring Rods | 3 |
| Operation Type | Mechanical |
| Range | 0" to 3" |
| Rod Dia. | 1/8" |
| Rotating Spindle (yes/no) | No |
| Spc Output | No |
| Spindle | Flat |
| Spindle Material | Steel |
| Spindle Shape | Flat |
| Thimble Type | Ratchet |
Product Details

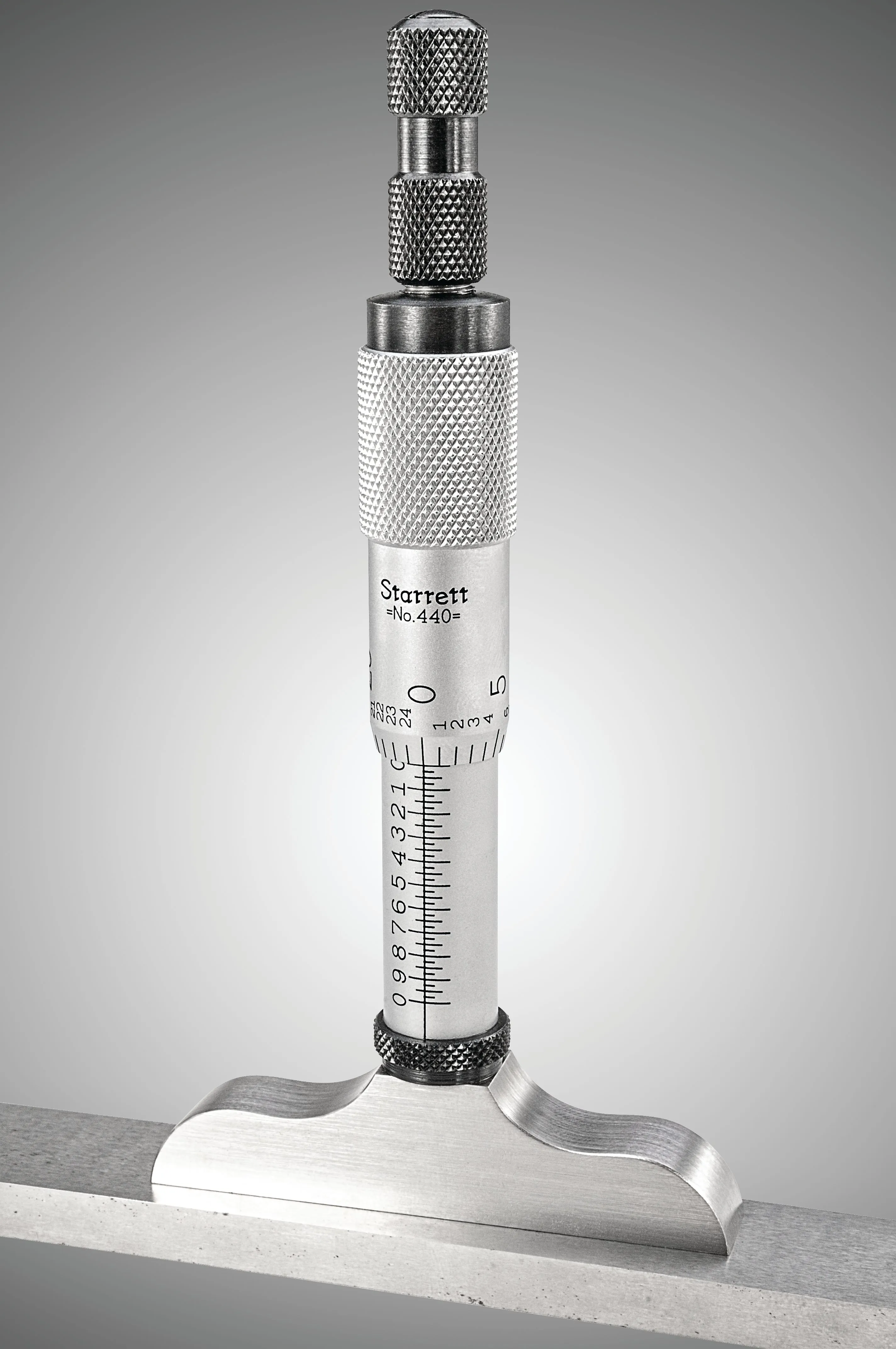

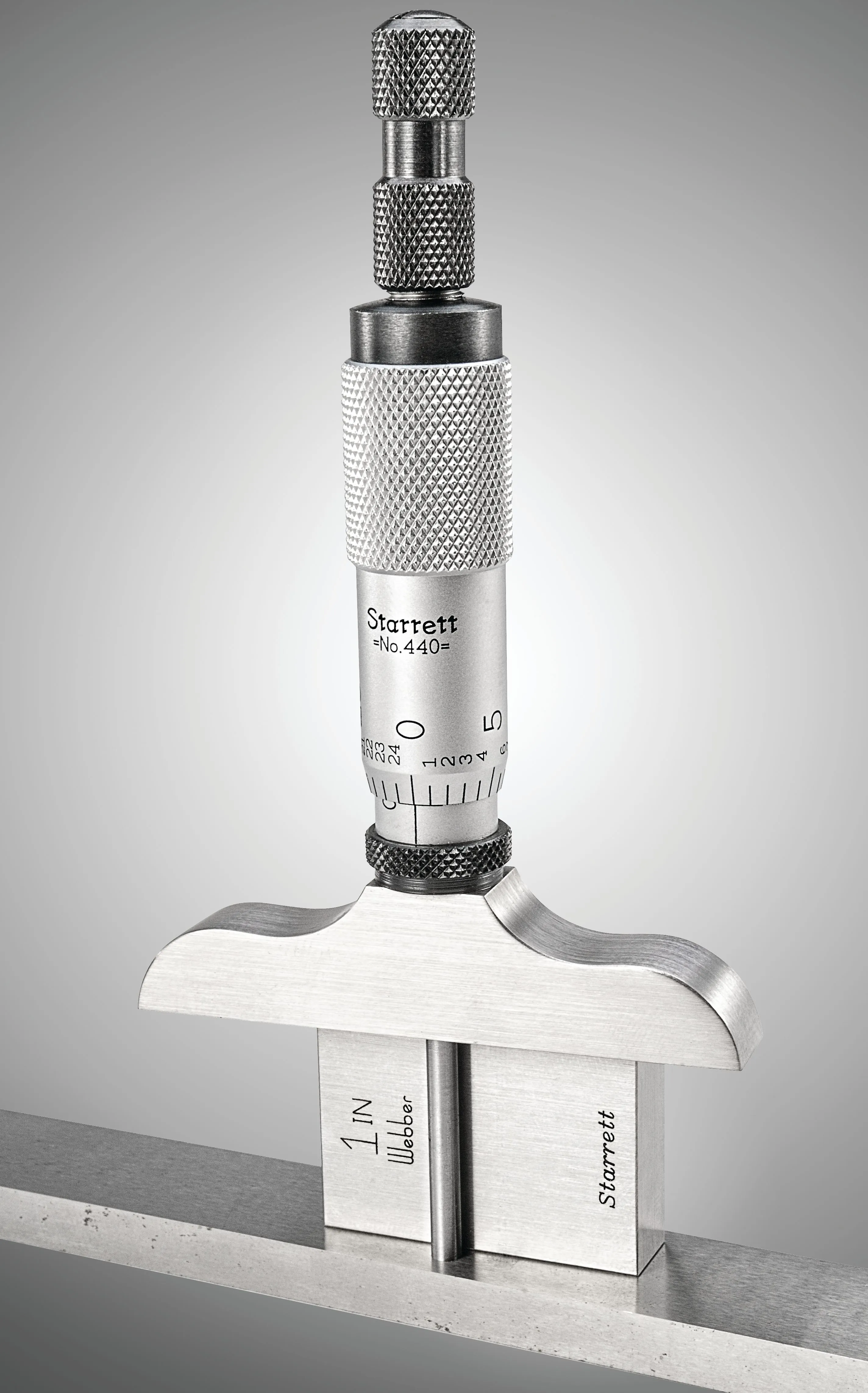

- Starrett 440Z-3RL is a mechanical micrometer designed to measure the depth of holes, slots, shoulders and projections within the 0 - 3 inch range.

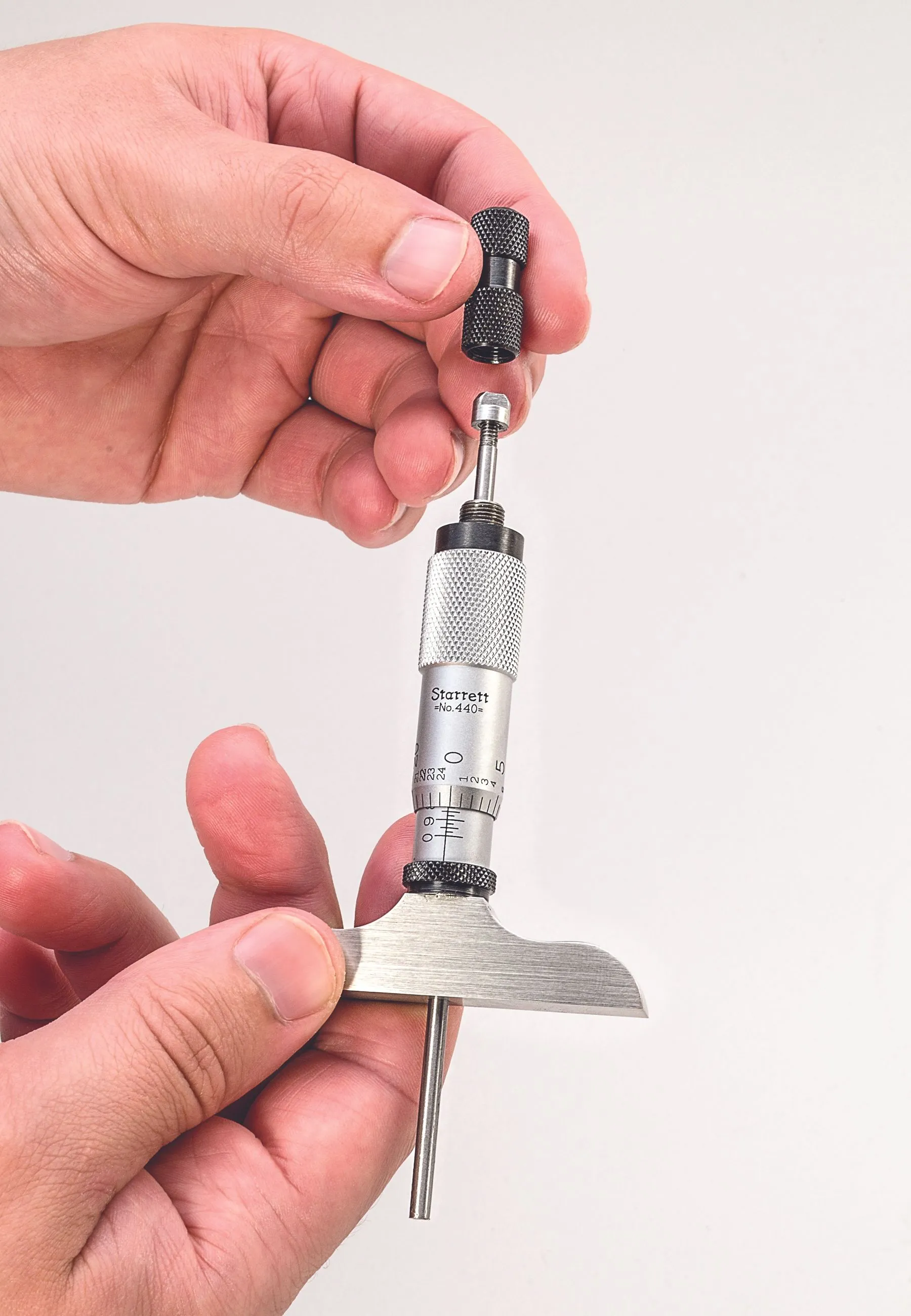

- It features a combination ratchet and speeder to provide uniform contact pressure and a ring-type knurled lock nut for quick and secure locking.
- The micrometer head and the measuring rods provide accuracy of +/-0.0001 and +/-0.0002 inch, respectively.
Shipping Information
| Height | 3.56 |
|---|---|
| Length | 26.16 |
| Width | 10.92 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | US |
| Weight | 0.675000 |
Related Products
| Style | Model | Number Of Gauges | Base Length | Thimble Type | Range | Number Of Measuring Rods | Rod Dia. | Rod Type | Rotating Spindle | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 440Z-6RL | 6 | 2 1/2" | Ratchet | 0" to 6" | 6 | 1/8" | - | - | SGD 1,147.03 | |
| B | 445BZ-6RL | 6 | 4" | Ratchet | 0" to 6" | 6 | 5/32" | Adjustable, Solid | No | SGD 1,225.16 | |
| C | 445BZ-9RL | 9 | 4" | Ratchet | 0" to 9" | 9 | 0.156" | - | - | SGD 1,512.42 | |
| D | 445BZ-12RL | 12 | 4" | Ratchet | 0" to 12" | 12 | 5/32" | - | No | SGD 1,738.32 | |
| E | 440Z-9RL | 9 | 2 1/2" | Ratchet | 0" to 9" | 9 | 1/8" | - | - | SGD 1,417.75 | |
| F | 440Z-3L | 3 | 2 1/2" | Plain | 0" to 3" | 3 | 1/8" | Round | No | SGD 1,022.25 | |
| G | 445DZ-9RL | - | 6" | Ratchet | - | 9 | 0.156" | Interchangeable | - | SGD 1,567.92 |
