Ships within 2 days via
Payment

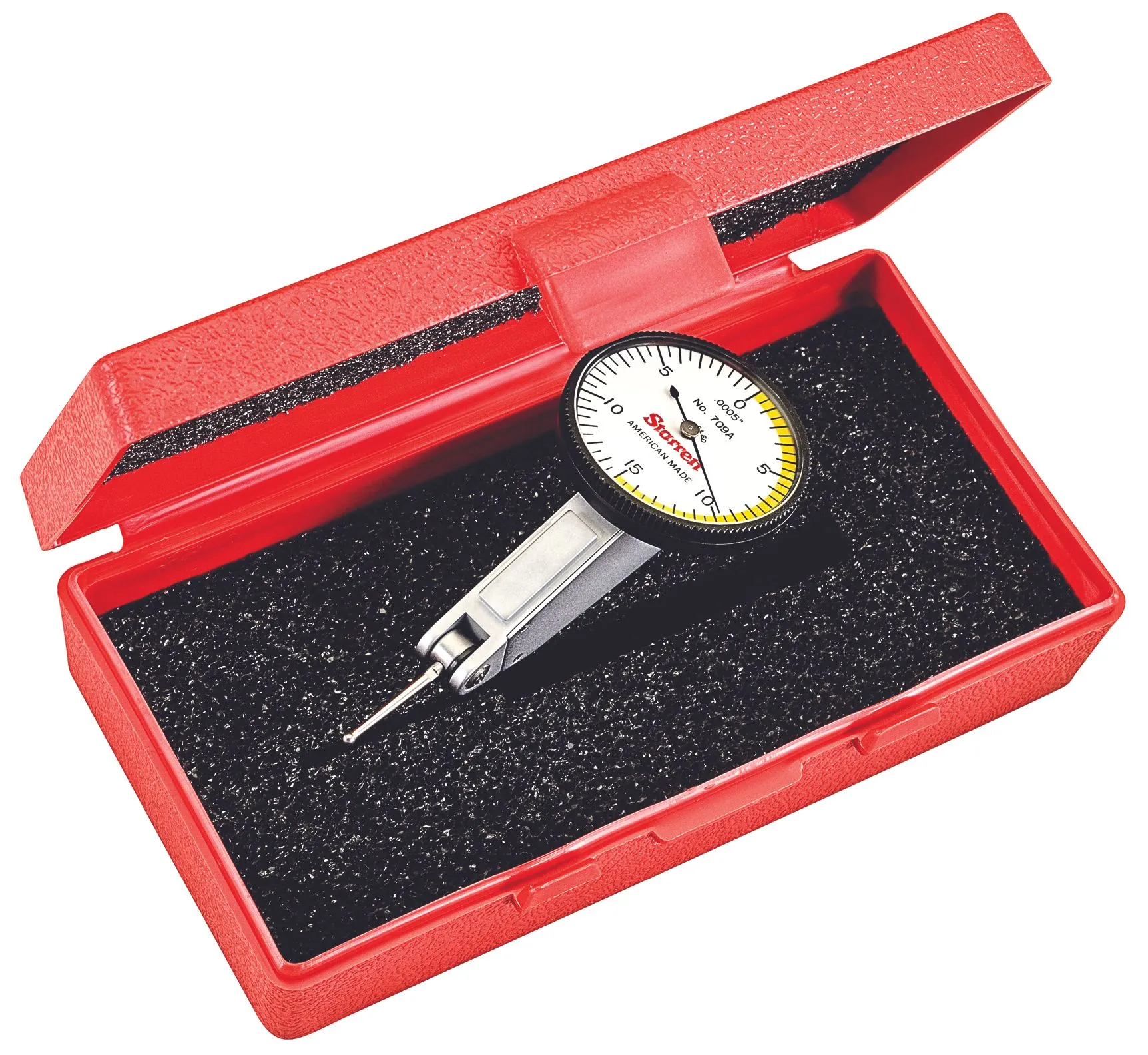

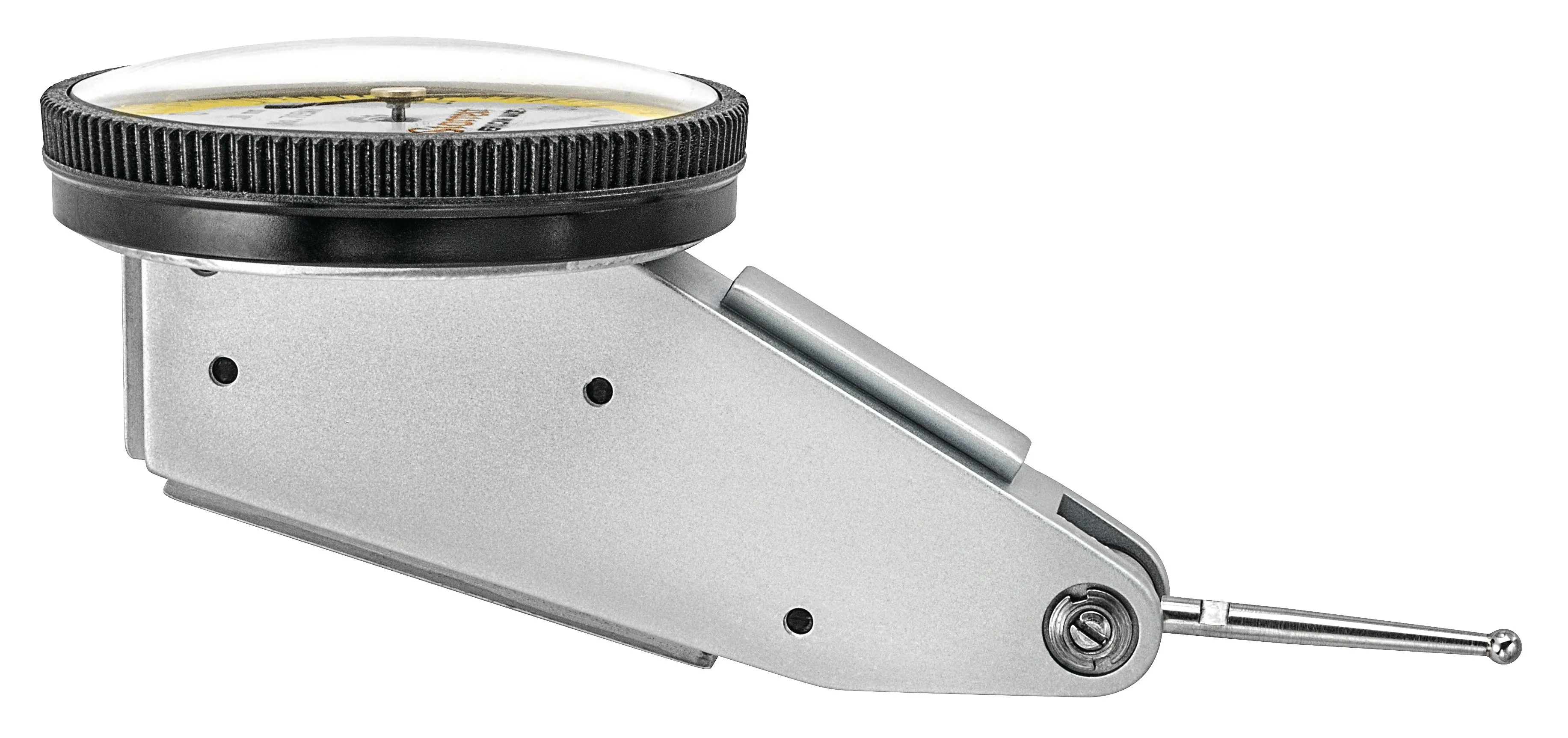

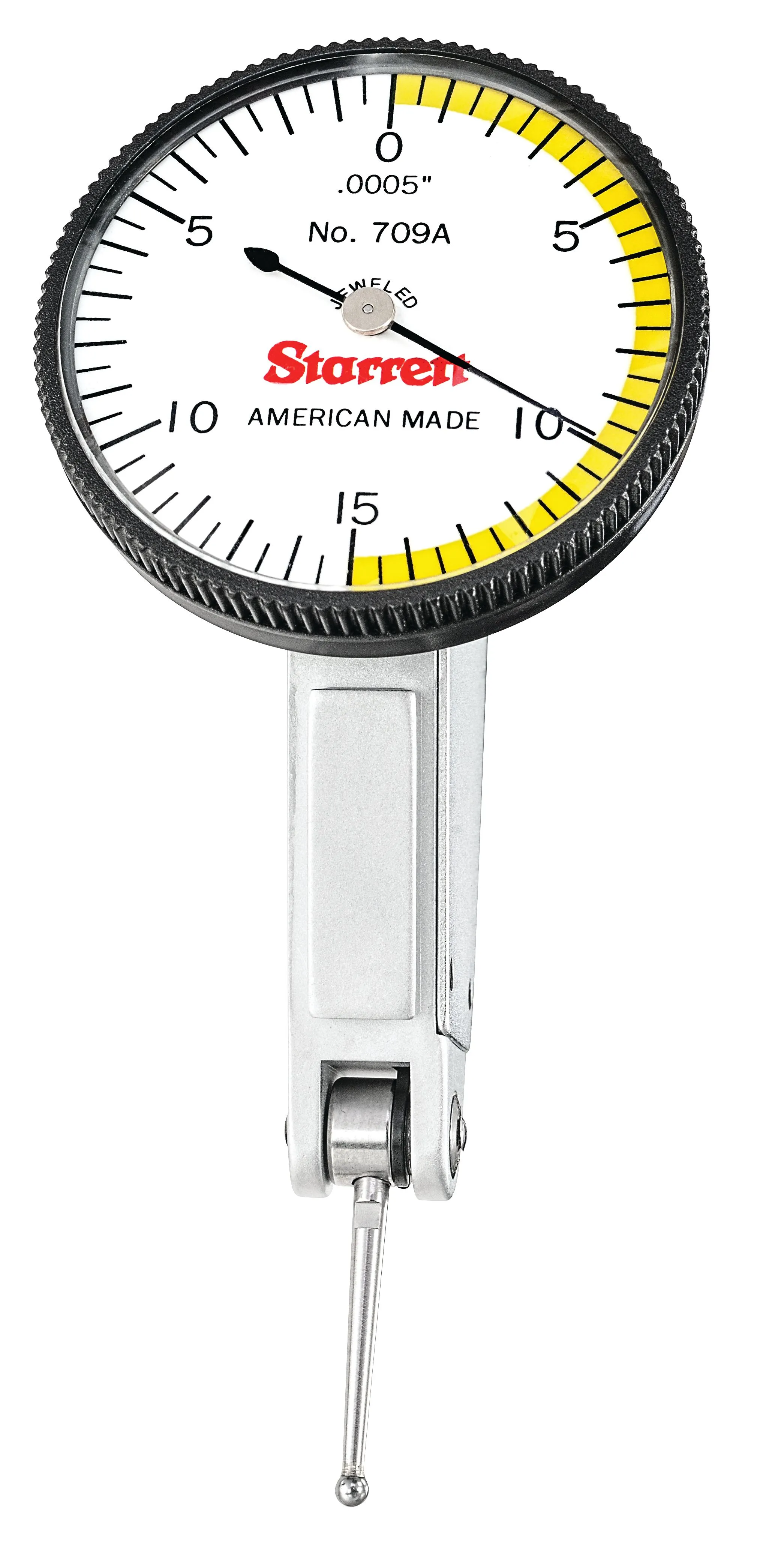

| Item | Dial Test Indicator |
|---|---|
| Accuracy | -0.0005" to +0.0005" |
| Bearing Type | Jeweled |
| Contact Point Dia. | 0.078125" |
| Contact Point Material | Steel |
| Contact Point Shape | Ball |
| Dial Color | White, Yellow |
| Dial Reading | 0-15-0 |
| Dial Size | 1.38" |
| Dimension Type | Inch |
| Graduations | 0.0005" |
| Includes | Not Included |
| Includes Case | Yes |
| Includes Dovetail Mount Attachments | No |
| Indicator Style | Horizontal |
|---|---|
| Long Form Calibration Certificate | No |
| Maximum Measurement - Inch | 0.03" |
| Minimum Measurement - Inch | 0" |
| Mounting Style | Dovetail |
| Non-conductive Tip | No |
| Non-magnetic Tip | No |
| Number Of Indicators | 1 |
| Operation Type | Lever Style |
| Range | 0" to 0.03" |
| Range Per Revolution | 0.03" |
| Standards | ISO |
| Stylus Length | 0.1875", 20 mm |
| Test Indicator Style | Horizontal |
| Height (cm) | 3.3 |
|---|---|
| Length (cm) | 13.72 |
| Width (cm) | 7.62 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.09 |
| Style | Model | Operation Type | Accuracy | Dial Color | Dial Reading | Graduations | Range Per Revolution | Dial Size | Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 708AZ | Lever Style | -0.0001" to +0.0001" | White, Yellow | 0-5-0 | 0.0001" | 0.01" | 1.38" | 0" to 0.01" | SGD 1071.80 | |
| A | 708ACZ | Lever Style | -0.0001" to +0.0001" | White, Yellow | 0-5-0 | 0.0001" | 0.01" | 1.38" | 0" to 0.01" | SGD 1277.76 | |
| B | 709ACZ | Lever Style | - | White, Yellow | 0-15-0 | 0.0005" | 0.03" | 1.38" | 0" to 0.03" | SGD 1068.02 | |
| C | 709BCZ | Lever Style | -0.0005" to +0.0005" | White, Yellow | 0-15-0 | 0.0005" | 0.06" | 1.38" | 0" to 0.06" | SGD 1351.91 | |
| D | 709BZ | Lever Style | -0.0005" to +0.0005" | White, Yellow | - | 0.001" | 0.03" | 1 3/8" | - | SGD 1084.24 | |
| E | 709ALZ | Lever-Style | -0.0005" to +0.0005" | - | - | - | - | - | - | SGD 940.17 | |
| F | 709ALCZ | Lever-Style | -0.0005" to +0.0005" | - | - | - | - | - | - | SGD 966.78 |
