| Item | Dial Test Indicator |
|---|---|
| Accuracy | -0.001" to +0.001" |
| Bearing Type | Jeweled |
| Contact Point Dia. | 3/25" |
| Contact Point Material | Steel |
| Contact Point Shape | Ball |
| Dial Color | White, Yellow |
| Dial Reading | 0-15-0 |
| Dial Size | 1" |
| Dimension Type | Inch |
| Graduations | 0.0005" |

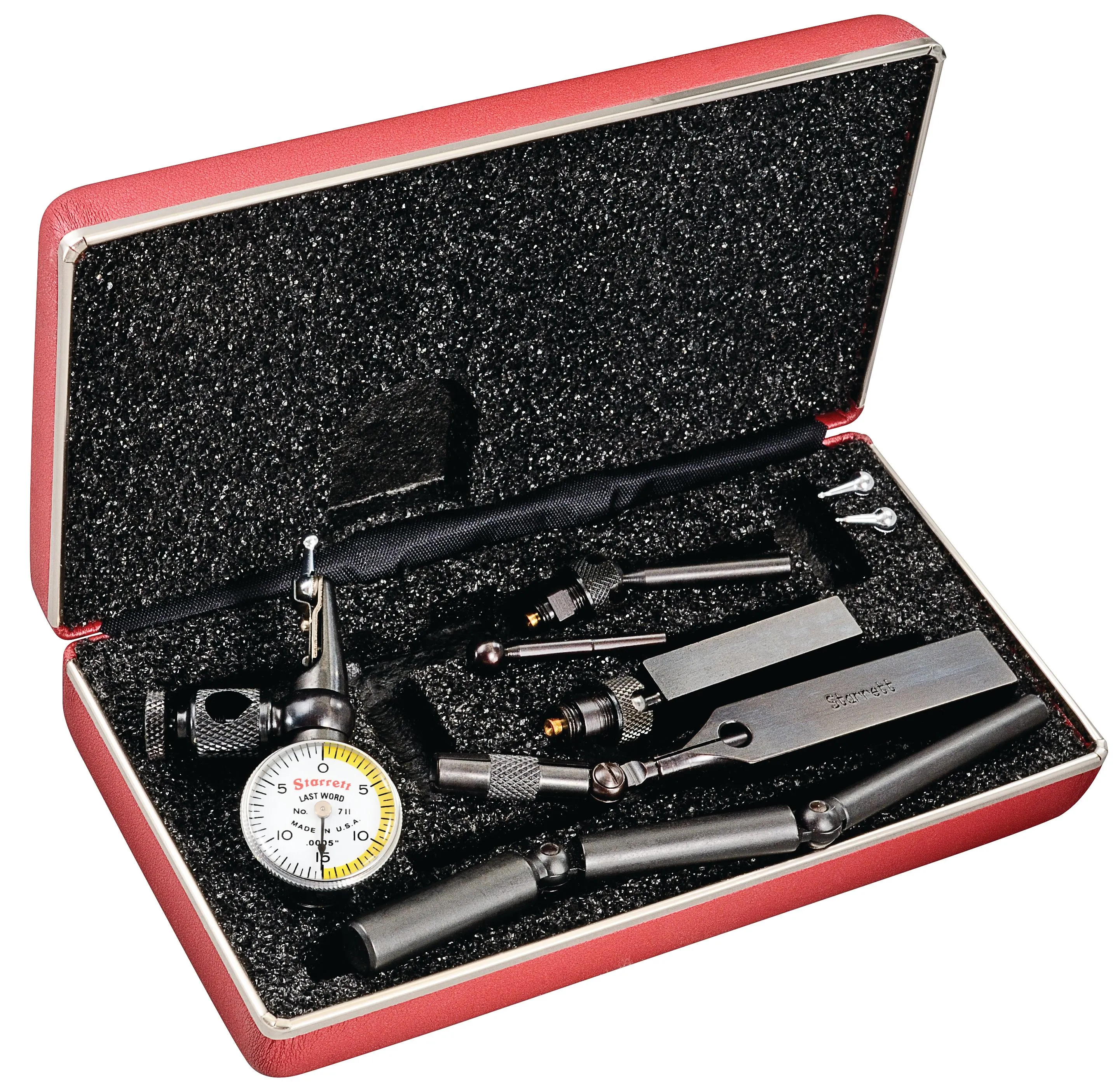

| Includes | Indicator Complete With All Attachments |
| Includes Case | Yes |
| Includes Dovetail Mount Attachments | No |
| Indicator Style | Horizontal |
|---|---|
| Long Form Calibration Certificate | No |
| Maximum Measurement - Inch | 0.03" |
| Minimum Measurement - Inch | 0" |
| Mounting Style | Dovetail |
| Non-magnetic Tip | No |
| Number Of Indicators | 1 |
| Operation Type | Lever Style |
| Range | 0" to 0.03" |
| Range Per Revolution | 0.03" |
| Reading | Balanced |
| Stylus Length | 0.15625", 4 mm |
| Test Indicator Style | Swivel Head |
| Height (cm) | 4.06 |
|---|---|
| Length (cm) | 18.8 |
| Width (cm) | 9.4 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.405 |
| Style | Model | Operation Type | Range | Dimension Type | Dial Reading | Graduations | Range Per Revolution | Dial Size | Contact Point Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 711FSZ | Lever Style | 0" to 0.03" | Inch | 0-15-0 | 0.001" | 0.03" | 1" | 0.12" | SGD 651.35 | |
| B | 711GCSZ | Lever Style | 0" to 0.03" | Inch | 0-15-0 | 0.001" | 0.03" | 1" | 3/25" | SGD 966.11 | |
| C | 711HSAZ | Lever Style | 0" to 0.03" | Inch | 0-15-0 | 0.0005" | 0.03" | 1 1/2" | 0.12" | SGD 832.36 | |
| D | 711FSAZ | Lever-Style | - | - | - | - | - | - | - | SGD 719.33 | |
| E | 711EA | - | - | - | - | - | - | - | - | SGD 53.45 | |
| F | 711HSZ | Lever-Style | 0" to 0.03" | Inch | 0 to 15 | 0.0005" | 0.03" | 1" | 3/25" | SGD 721.93 | |
| G | 711MGCSZ | Lever-Style | 0 mm to 0.7 mm | Metric | 0 to 35 | 0.01 mm | 0.0275" | 1" | - | SGD 1060.17 |
