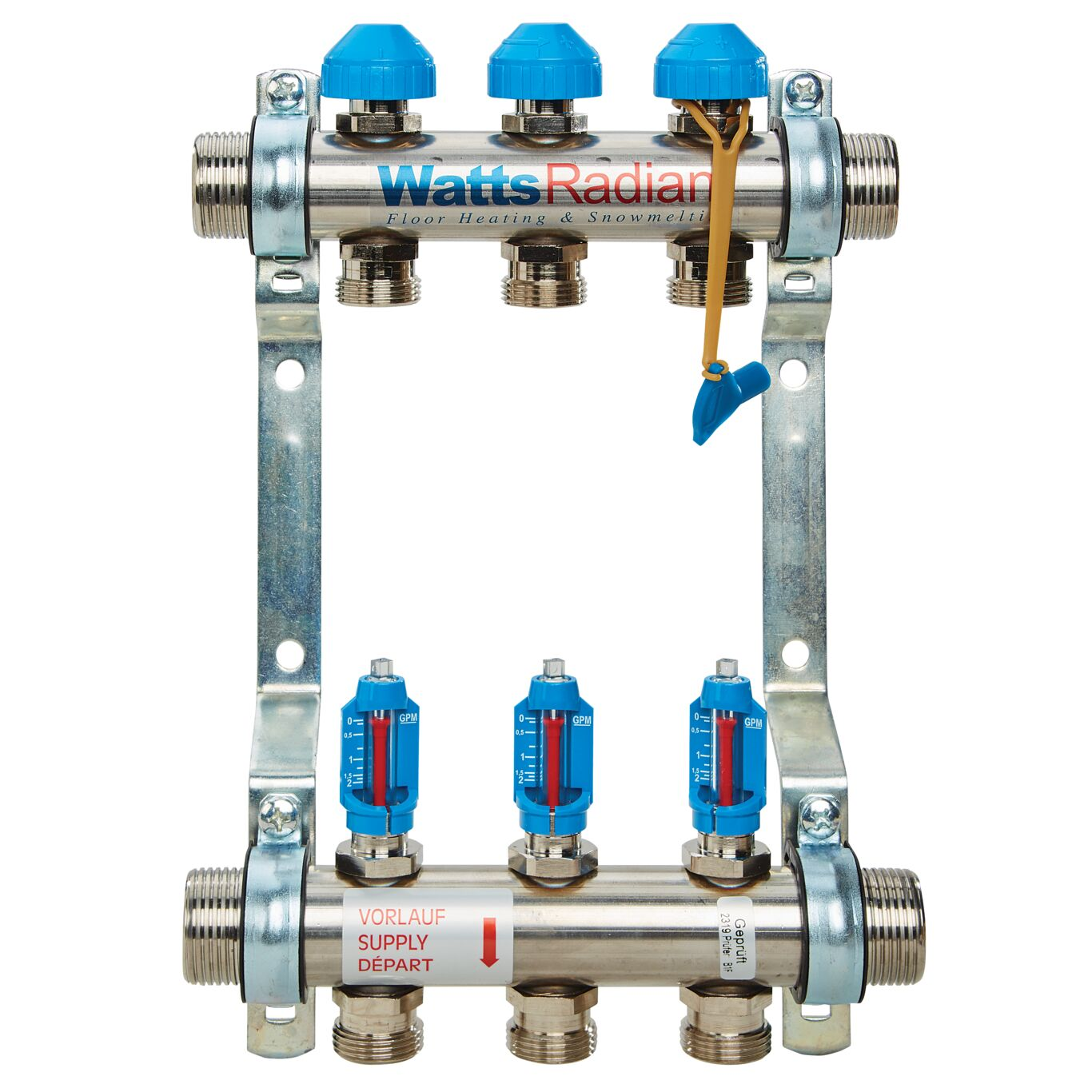

WATTS D3803003SS 81001982 Flowmeter Manifold, 3 Branch, Stainless Steel
Item: AA2AJV
Model: D3803003SS
Cross Ref: 10A284 / 81001982
16 In Stock
Ships within 2 days via
5% off
SGD1,094.15/unit
(inc. GST)
Request Quote
FREE delivery on orders over SGD200.00
Specifications
| Body Material | Stainless Steel |
|---|---|
| Branch Outlet Connection Size | 3/4" |
| Branch Outlet Connection Type | Male Threaded |
| Connection Type | MBSP |
| For Fluid Type | Glycol Solutions, Water |
| Includes | Flow Balancing Valves, Flowmeter |
| Inlet Connection Gender | Male |
| Inlet Connection Size | 1" |
| Inlet Connection Type | MBSP |
| Inlet Size | 1" |
| Lead Free | Not In Scope |
| Manifold Material | Stainless Steel |
| Manifold Material Grade | Grade 304 |
| Material | Stainless Steel |
| Max. Operating Temp. | 167°F |
| Max. Pressure | 87 psi |
| Max. Trunk Flow Rate | 12 GPM |
| Maximum Operating Pressure | 87 psi |
| Maximum Operating Temperature | 167°F |
| Mfr. Series | D38SS Series |
| Minimum Operating Temperature | 32°F |
| Mount Type | Bracket |
|---|---|
| Mounting Hole Dia. | 1/4" |
| Mounting Hole Size | 1/4" |
| Number Of Branches | 3 |
| Number Of Inlets | 1 |
| Number Of Outlets | 3 |
| Outlet Connection Gender | Male |
| Outlet Connection Type | MBSP |
| Outlet Size | 1" |
| Outlet Type | Open |
| Overall Height | 11 1/2" |
| Overall Length | 10" |
| Overall Width | 2" |
| Pipe Fitting Material | Stainless Steel |
| Temp. Range | +32°F to +167°F |
| Trunk Dia. | 1" |
| Trunk Inlet Connection Size | 1" |
| Trunk Inlet Connection Type | Male Threaded |
| Trunk Outlet Connection Size | 1" |
| Trunk Outlet Connection Type | Male Threaded |
| With Valves | No |
Shipping Information
| Height | 11.94 |
|---|---|
| Length | 31.5 |
| Width | 30.99 |
| HS Code | 8481809050 |
|---|---|
| Country Of Origin | DE |
| Weight | 4.500000 |
