DAYTON 1TDU2 | AB3HCQ | OEM Blower

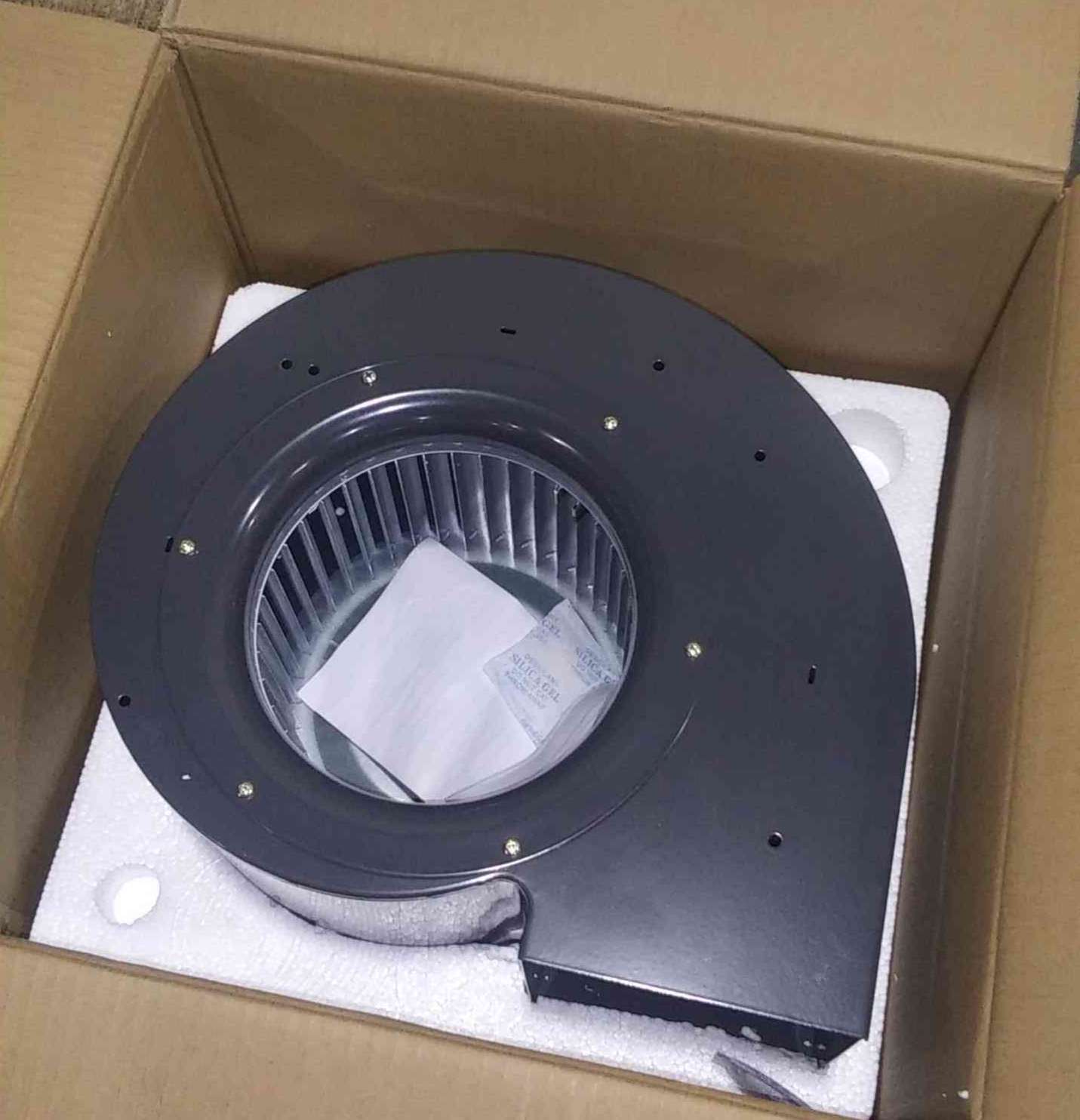

DAYTON 1TDU2 Squirrel Cage Blower Fan, 1202 CFM, Forward Curve Wheels

In Stock
Item: AB3HCQ Model: 1TDU2
Shipping to

Get it by Jul 14, Thursday

SGD 779.13 /unit (inc. GST)
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemOEM Blower
Bearing TypeBall
CFM @ 0.000-In. SP1202
CFM @ 0.100-In. SP1170
CFM @ 0.200-In. SP1150
CFM @ 0.300-In. SP1140
CFM @ 0.400-In. SP1120
CFM @ 0.500-In. SP1100
CFM @ 0.600-In. SP1080
CFM @ 0.700-In. SP1075
CFM @ 0.800-In. SP1040
Conduit BoxYes
Drive TypeDirect
Full Load Amps7.30/3.70
Housing ColorGray
Housing FinishEnamel
Housing MaterialRolled Steel
Hz50/60
Inlet Dia.7"
Lead Length13"
Max. Ambient Temp.104 Degrees F
Max. Inlet Temp.104 Degrees F
Motor EnclosureOpen
Motor InsulationClass B
Motor TypePermanent Split Capacitor
Mounting PositionAll Position
Outlet Height5 9/16"
Outlet ShapeRectangular
Outlet Width7.125"
Overall Depth13.125"
Overall Height14.875"
Overall Width11 15/16"
Phase1
RPM1390
Thermal ProtectionAuto
Voltage115/230
Wheel Diameter8.25"
Wheel TypeForward Curve
Wheel Width1.875"

Shipping Info:

Ship weight (kg) 11.88
Ship height (cm)40.01
Ship length (cm)48.26
Ship width (cm)46.36
HS code8414596060
Country of OriginCN

Product Details:

OEM specialty blowers offer an exact replacement for original equipment blowers having the same physical footprints. These squirrel cage blower fans are ideal for providing economical air delivery for component cooling, general ventilating and cooling & heating operations. Dayton 1TDU2 squirrel cage blower features dynamically balanced wheels for reducing noise & vibration, as well as maintaining the airflow even at high pressures. This Dayton 1TDU2 blower is equipped with a ball bearing motor having cast aluminium end shields for greater heat dissipation rates and protection from component failure & accidental damage. Dayton 1TDU2 squirrel cage blower allows mounting in all positions and delivers a maximum speed of 1390 rpm. This squirrel cage blower fan features a housing made of rolled steel with enamel finish for structural rigidity and resisting corrosion on the exposed surfaces. Dayton 1TDU2 squirrel cage blower fan has forward curved wheel blades to deliver air tangentially from the circumference of the blower. This 1TDU2 squirrel cage blower has a maximum ambient temperature of 104 degrees Fahrenheit.

Uses:

Dayton 1TDU2 squirrel cage blower fan is suitable for exhausting or ventilating office machines, cabinets, corn stoves, fireplace inserts, pellet stoves and electronic equipment.

Features:

  • Dayton 1TDU2 direct drive blower is ideal for heating, ventilating and cooling small buildings and electrical enclosures.
  • This squirrel cage blower fan features a ball bearing motor with cast aluminium end shields for greater heat dissipation.
  • Dayton 1TDU2 squirrel cage blower fan has dynamically balanced wheels for reducing the vibration and noise, as well as maintaining the airflow even at high pressures.
  • This squirrel cage blower fan allows mounting in all positions.
  • Dayton 1TDU2 direct drive blower offers an extruded aluminium blower frame for enhanced rigidity.
  • If you want a higher speed variant, check out Dayton 1TDR9 blower, delivering 1600 rpm speed.
  • Also check out Dayton 702112964X blower having sleeve bearings for noiseless performance and easier installation than ball bearing variants.

Standards and Approvals:

  • Dayton 1TDU2 squirrel cage blower is cULus approved and CE & RoHS compliant to deliver high quality services.

Installation:

Dayton 1TDU2 squirrel cage blower mounts directly to an enclosure for circulating the air uniformly without requiring any ductwork.

Frequently Asked Questions:

Q. How to clean a squirrel cage blower fan?

A.

  • Turn off the circuit breaker for the line supplying power to the air conditioning unit or furnace.
  • Remove the trim cover around the open side opposite the motor by turning each screw anti-clockwise with a screwdriver. Use a nut driver if the cover is fastened with self-tapping sheet metal screws and place the screws in a safe place.
  • Pull the trim cover from the air conditioning unit or furnace side.
  • Loosen the retaining bolt on the squirrel cage end by turning it anti-clockwise with an adjustable wrench. Now slide the squirrel cage from the air conditioning unit or furnace.
  • Rinse the squirrel cage outdoors with pressurised water from a garden hose. Set the squirrel cage in direct sunlight but away from dusty areas.
  • Slide the dried & cleaned squirrel cage over the motor shaft and tighten the retaining bolt with the adjustable wrench.
  • Push the trim cover against the squirrel cage opening. Now, turn the trim cover to align its holes with the holes in the side of the air conditioning unit or furnace. Then install one screw in all trim cover holes. Tighten the screws with a screw or a nut runner for securing the trim cover.
  • Turn on the breaker for supplying power to the air conditioning unit or furnace.

Q. Are Dayton OEM blower fans efficient?

A. Most of Dayton OEM blowers have low efficiency, approximately 50% or less.

Q. What is the difference between blower and compressor?

A. The primary difference between an air blower and an air compressor is their pressure ratios. A compressor fills air into a small space making the air denser while a blower moves gas or air with a moderate increase of pressure.

Q. What does static pressure signify?

A. Static pressure is the pressure exerted against the walls of an air duct, produced by air impact and friction as it moves.

Q. Which type of motor is used in Dayton 1TDU2 direct drive blower?

A. Dayton 1TDU2 squirrel cage blower fan utilises a permanent split capacitor motor that runs at a maximum speed of 1390 rpm.

Q. What is the ambient temperature range of Dayton 1TDU2 squirrel cage blower fan?

A. Dayton 1TDU2, squirrel cage blower fan has a maximum ambient temperature of 104 degrees F.

Q. What is the difference between a fan and a blower?

A. A fan delivers air around an entire room or space while a blower circulates the air only on the pointed or specific area. A fan requires less pressure to produce large amounts of gas and is cheaper than a blower.

Product Variants

ProductModelCFM @ 1.000-In. SPHzCFM @ 0.000-In. SPConduit BoxFull Load AmpsHousing ColorHousing FinishHousing Material Price
DAYTON 1TDN1 Blower 13 Cfm 115v 0.29a 3394 Rpm | AB3HBA
1TDN1-6013No0.29GrayEnamelRolled Steel SGD 131.02
RFQ
DAYTON 1TDN2 Round Blower, 12 CFM, 115V, 0.08 Amp, 3340 Rpm | AB3HBB
1TDN2-50/6012No0.08GrayEnamelRolled Steel SGD 154.48
DAYTON 1TDN3 Blower 30 Cfm 115v 0.51a 3233 Rpm | AB3HBC
1TDN3-6030No0.51GrayEnamelRolled Steel SGD 143.37
DAYTON 1TDN4 Blower 49 Cfm 115v 0.50a 3034 Rpm | AB3HBD
1TDN4-6049No0.50GrayEnamelRolled Steel SGD 149.45
DAYTON 1TDN5 Blower 53 Cfm 115v 0.30a 3388 Rpm | AB3HBE
1TDN5-50/6053No0.30GrayEnamelRolled Steel SGD 109.56
DAYTON 1TDN6 Blower 51 Cfm 115v 0.23a 3105 Rpm | AB3HBF
1TDN6-50/6051Yes0.23GrayEnamelRolled Steel SGD 180.90
DAYTON |1TDN7 | AB3HBG | OEM Blower
1TDN7-50/6050Yes0.23GrayEnamelRolled Steel SGD 185.16
